1.6.2 STORAGE
FWA-1112VC features 1x M.2 M-key slot for M.2 2280 SATAIII SSD storage. Install Memory
module as schematic diagram below:
Normal Temp SKU
Wide Temp SKU

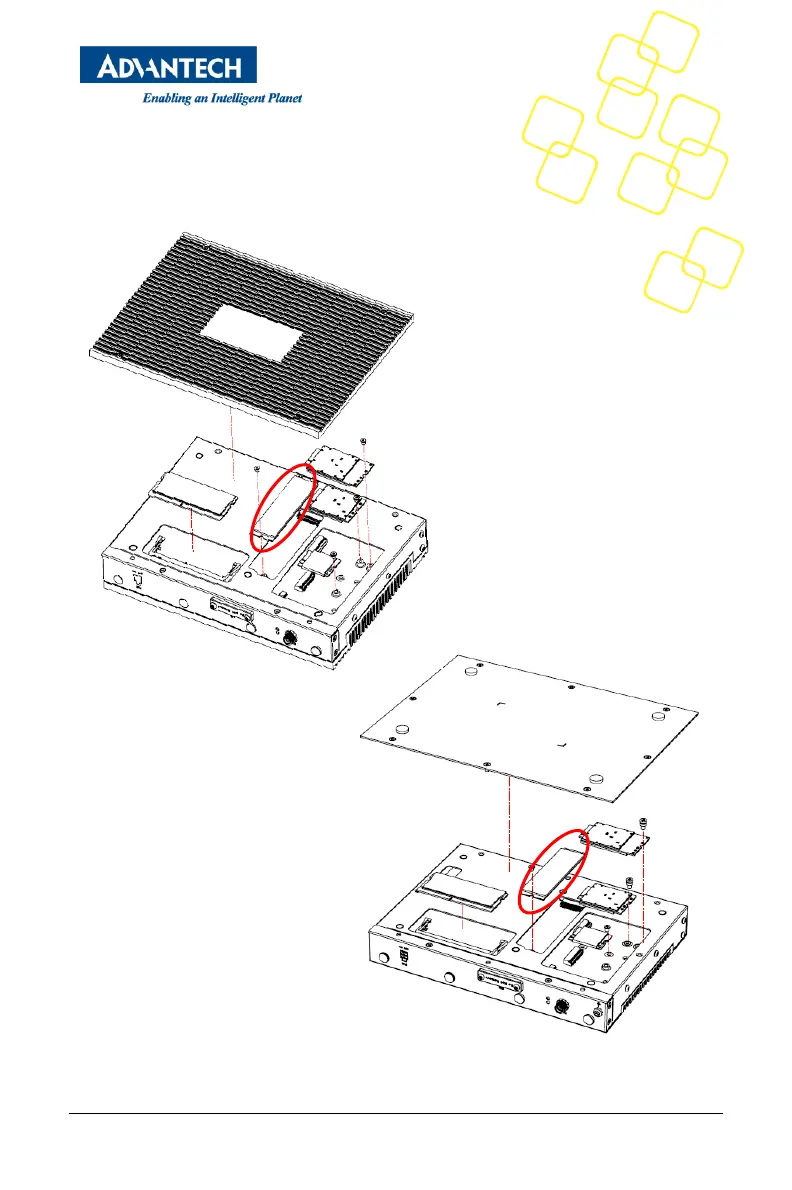

Figure 27 Storage Installation
