FWA-1112VC_UserManual_Ed1 Copyright 2020 Advantech Co. Ltd. All rights reserved.
Page 19

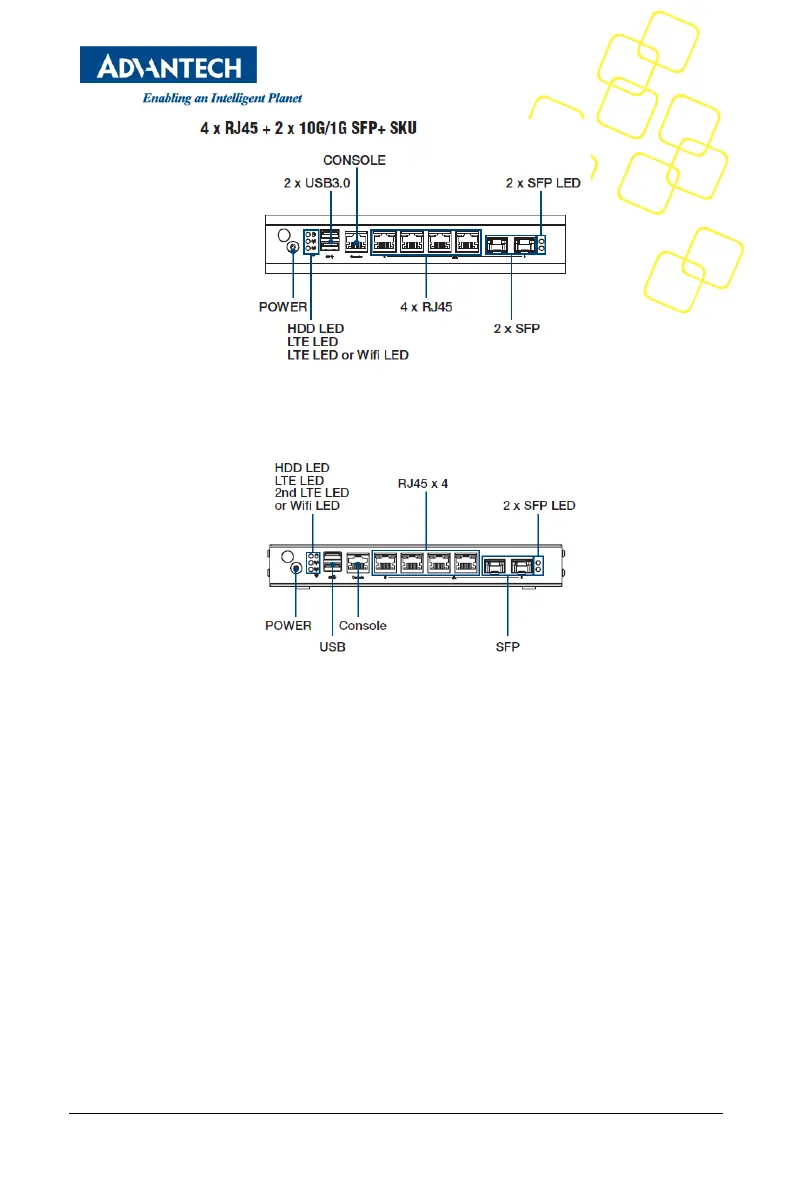

Figure 15 System Layout(Front) 4xRJ45 + 2x10G/1G SFP+ (Wide Temp SKU)
Figure 16 System Layout(Front) 4xRJ45 + 2x10G/1G SFP+ (Normal Temp SKU)
