1.4 Touchscreen Specifications
1.5 Power
Input voltage: 18 ~ 32 Vdc (the fuse will be open circuit as input level
exceeds 33Vdc)
Typical: 24V@2.4 (57W)
1.6 I/O Port Arrangement
The arrangement of the I/O ports is shown in Figure 1.1.

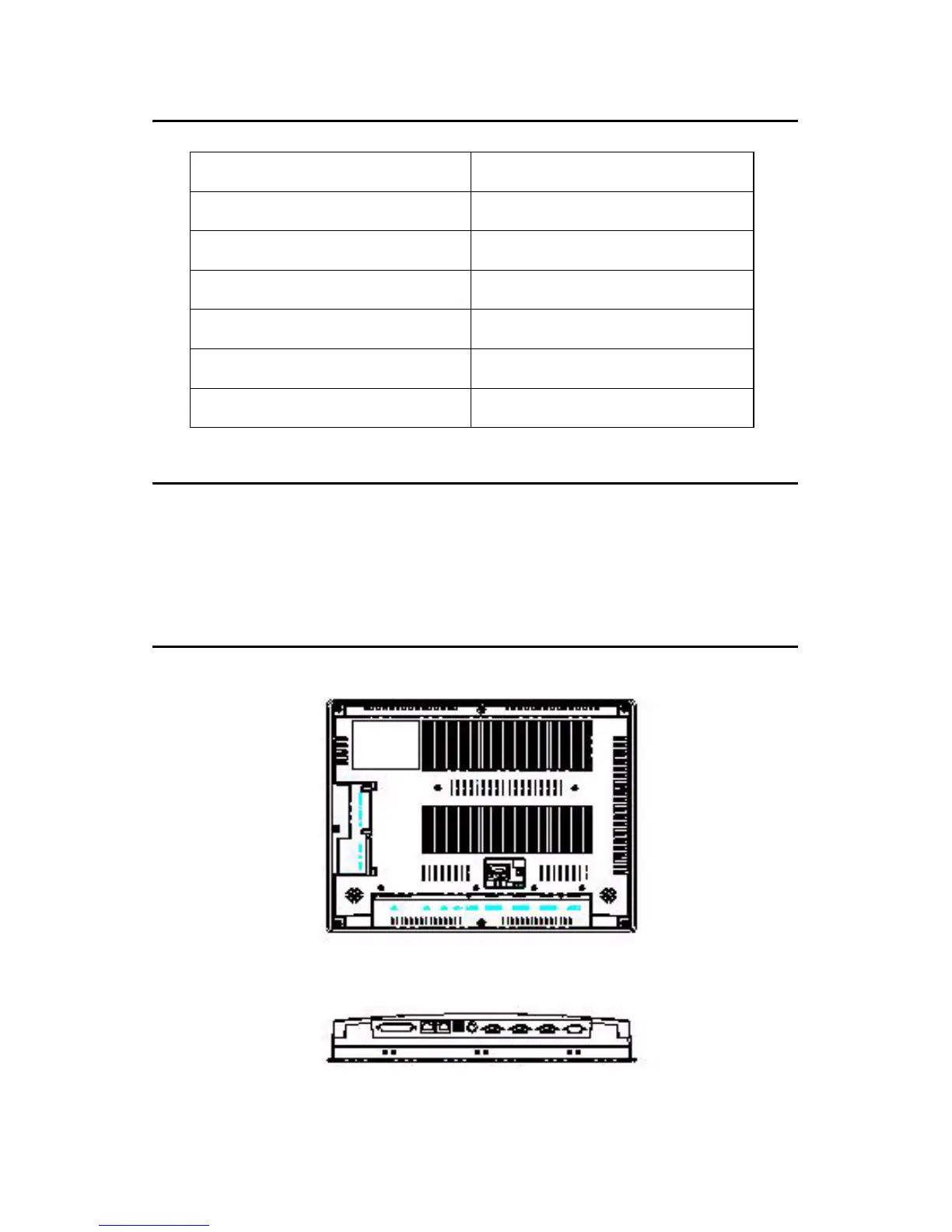

Figure 1.1: I/O port arrangement
Touchscreen Type
Resistive
Base Glass Construction
Tempered Glass
Resolution
1024 x 1024
Light Transmission
75% typical
Controller
RS232 Interface
Power Rating
3.3 to 5V
Durability
1 million touches
