7 Chapter 1
1.8 Exploded Diagram

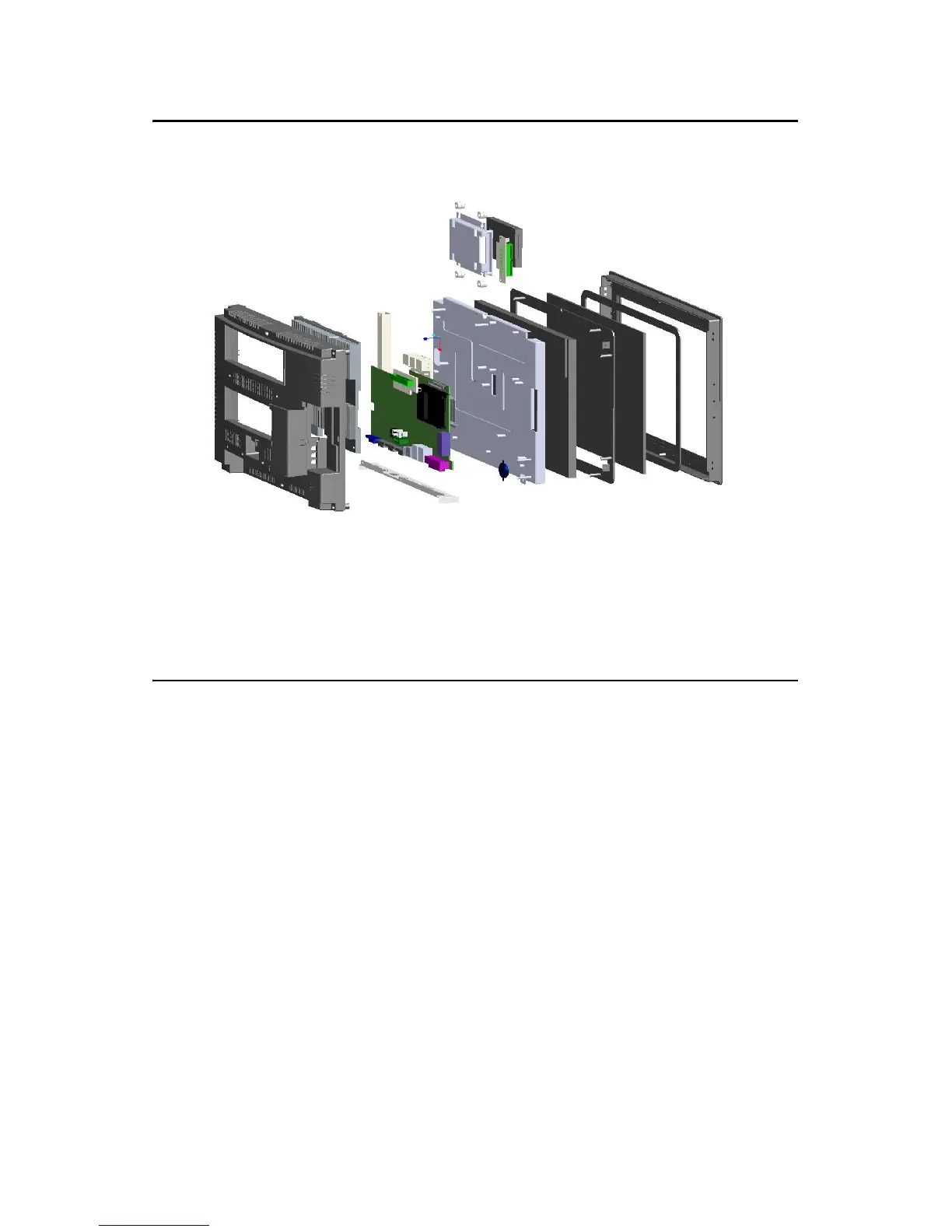

Figure 1.3: Exploded Diagram
1.9 Dimensions and cutout
Weight: 5 Kg (without HDD)
Dimensions: 383 x 307 x 64.5 mm (WxHxD)
Cutout: 374.5 x 298.5 mm (suggested)
