TPC-1570H User Manual 6
1.7 Panel Mounting
1. There is a piece of adhesive waterproof gasket on the Mg-AL
front bezel. Make sure the waterproof gasket is in position
before installing the TPC-1570H to the panel opening.
2. Install the TPC-1570H to the panel opening.
3. Find out the eight clampers and eight long screws in the
accessory pack. Hook those clampers to those holes around the
four sides of the bezel. Insert the screws to every clamper and
fasten them. These screws will then push on the mounting panel
and fix the unit.
4. The mounting panel thickness is suggested to be less than 10mm
(0.236 inch).

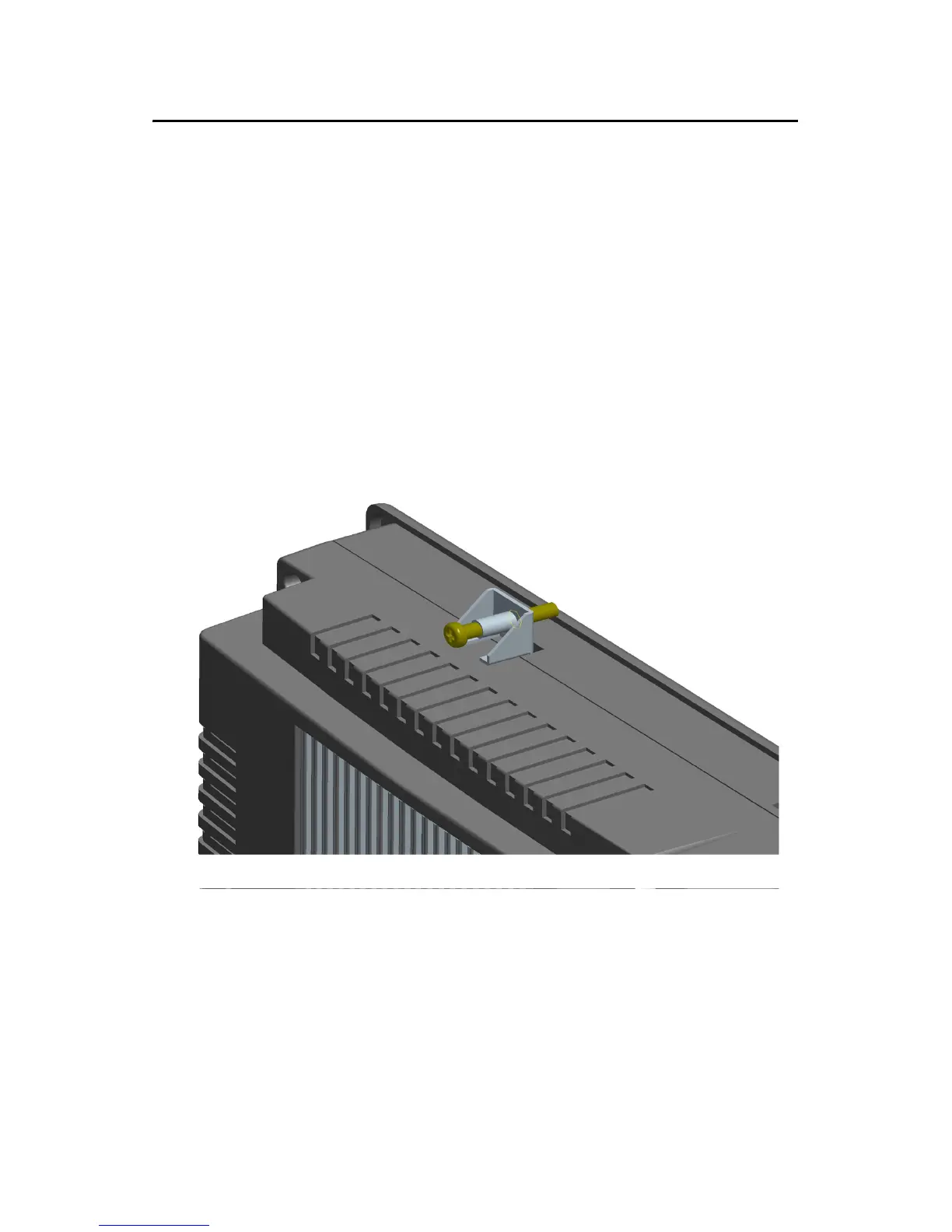

Figure 1.2: Panel Mounting
