Appendix D Accessory Kit Assembly
D.1 CompactFlash to IDE Transfer Kit
Please follow this assembly procedure to use the CompactFlash slot to
connect with a CD-ROM drive.
1. Connect the IDE cable to the adapter board.

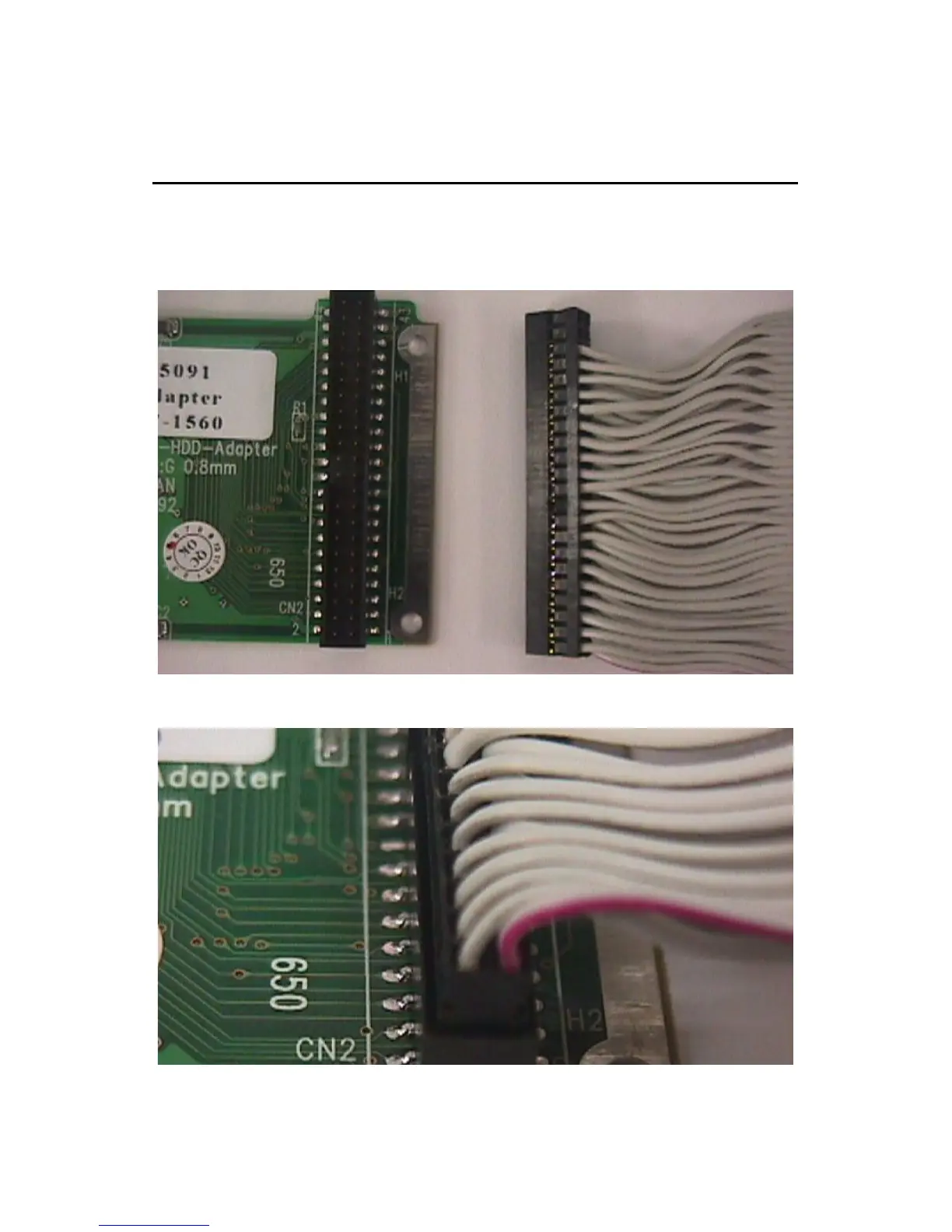

Figure D.1: Adapter Board and IDE Cable
Figure D.2: Connecting Adapter Board & IDE Cable
