Advantech TPC-1570H - Figure D.3:Compactflash Slot; Figure D.4:Insert the Adapter Board into the CF Slot; Figure D.5:Inserted Adapter Board

71 Appendix D
2. Insert the adapter board into the CompactFlash slot.

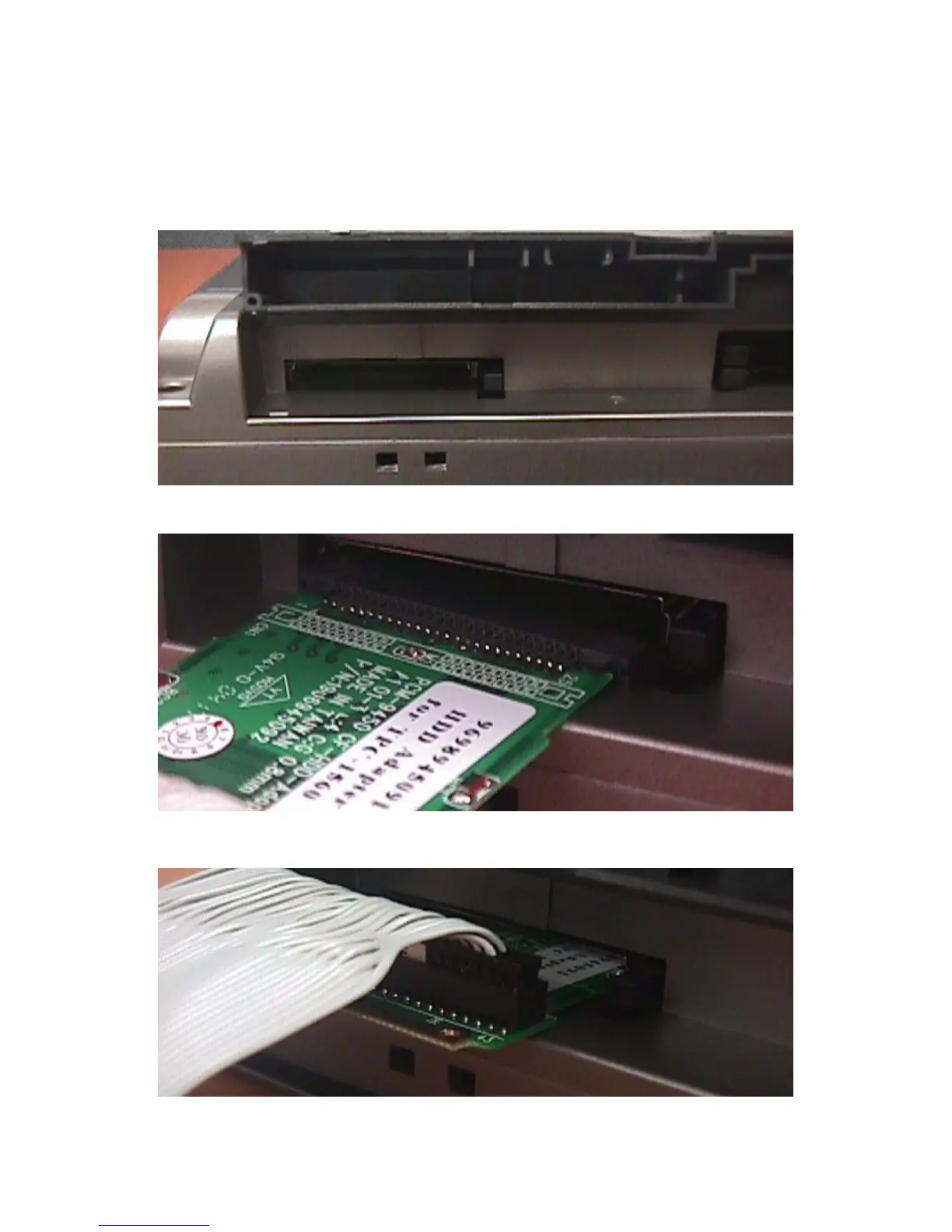

Figure D.3: CompactFlash Slot
Figure D.4: Insert the Adapter Board into the CF slot
Figure D.5: Inserted Adapter Board
Note Pin 1 is marked red
