TPC-1570H User Manual 78

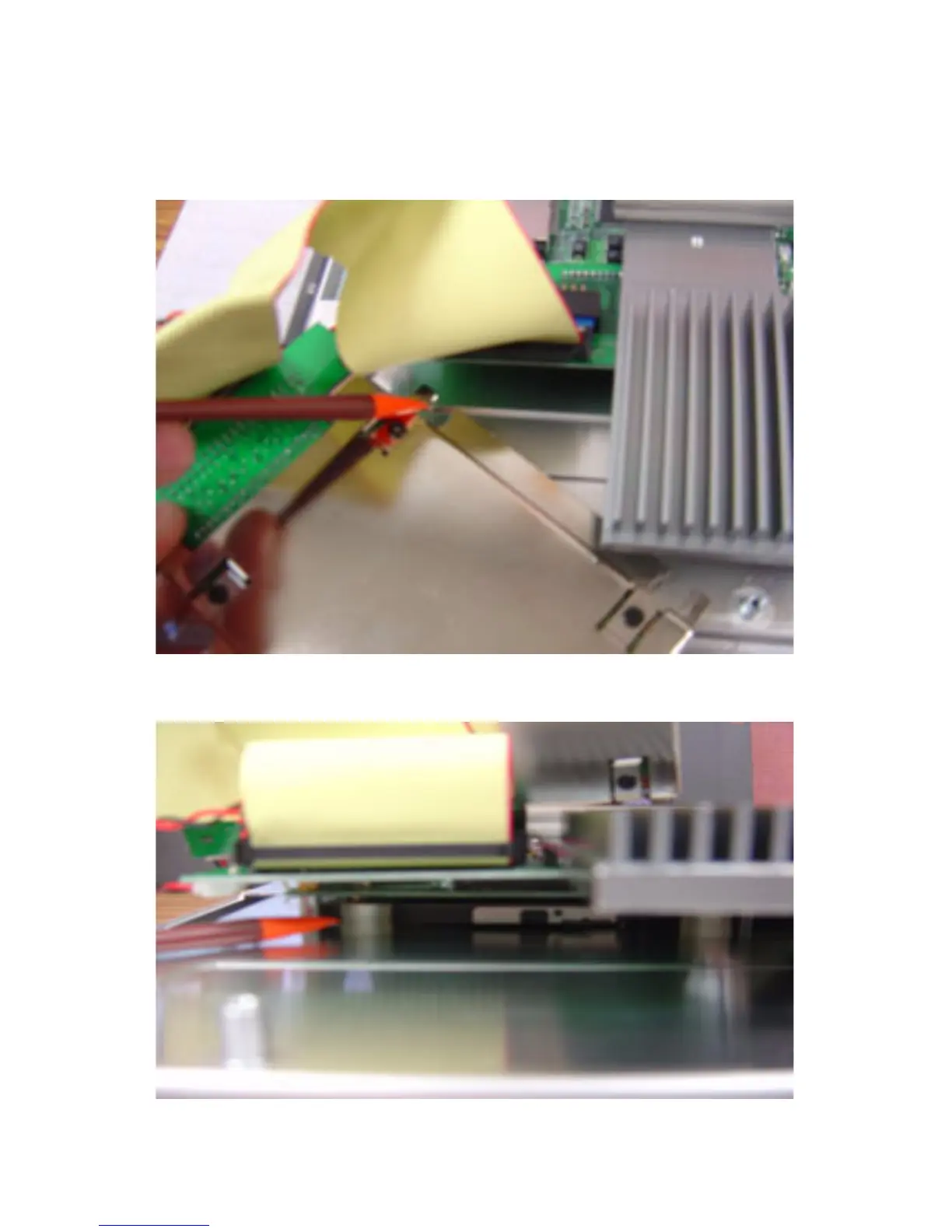

7. Place the HDD kit into the system: Align to the HDD chamfer as
shown the below in red circle and then slide the HDD module into the
system sideways.
Figure E.9: Chamfer
Figure E.10: Chamfer & Rubber
