TPC-1570H User Manual 76

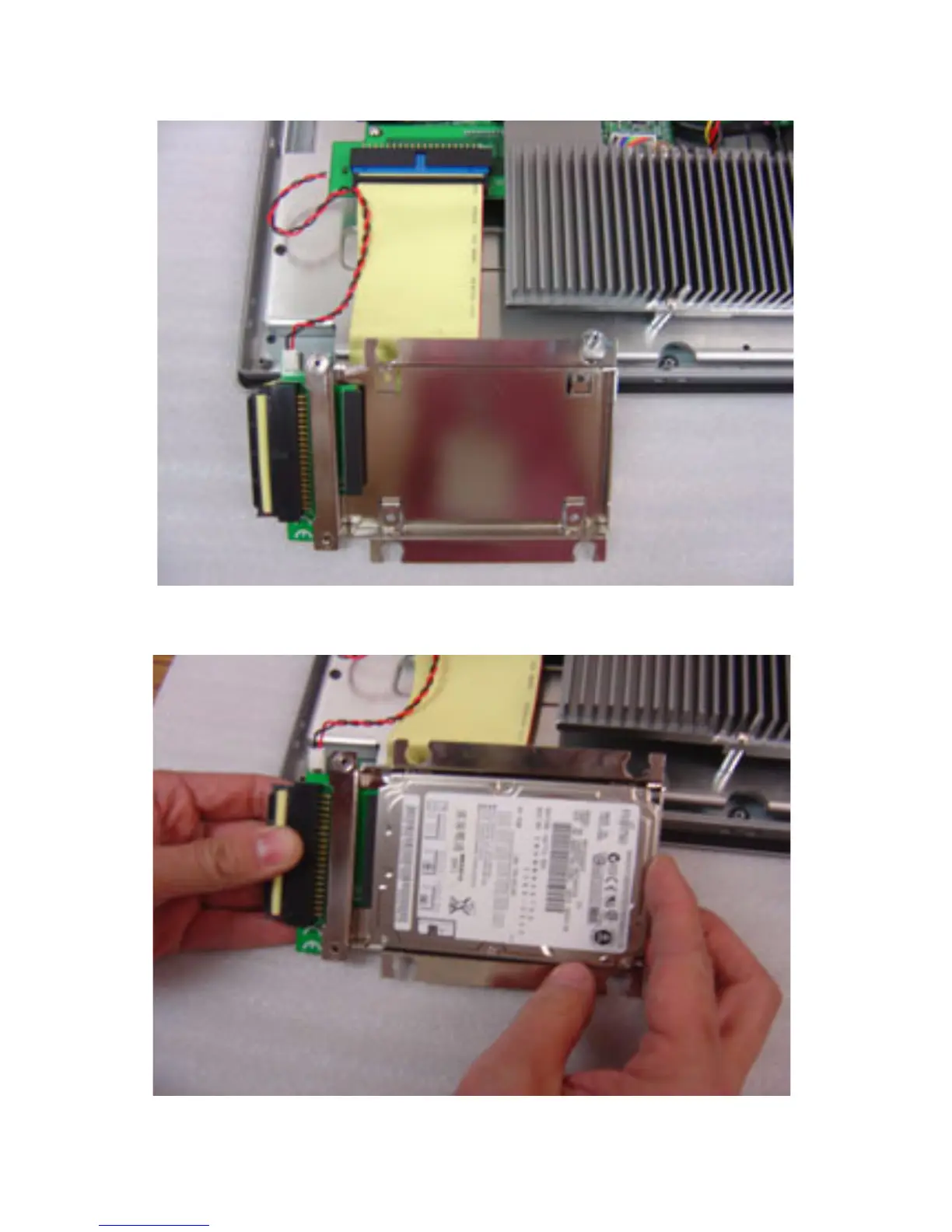

Figure E.5: The HDD Bracket
4. Put the HDD into the HDD holder.
Figure E.6: Installing the HDDr
