5. Link the HDD with the HDD cable connector and fasten the HDD
module with the screws.

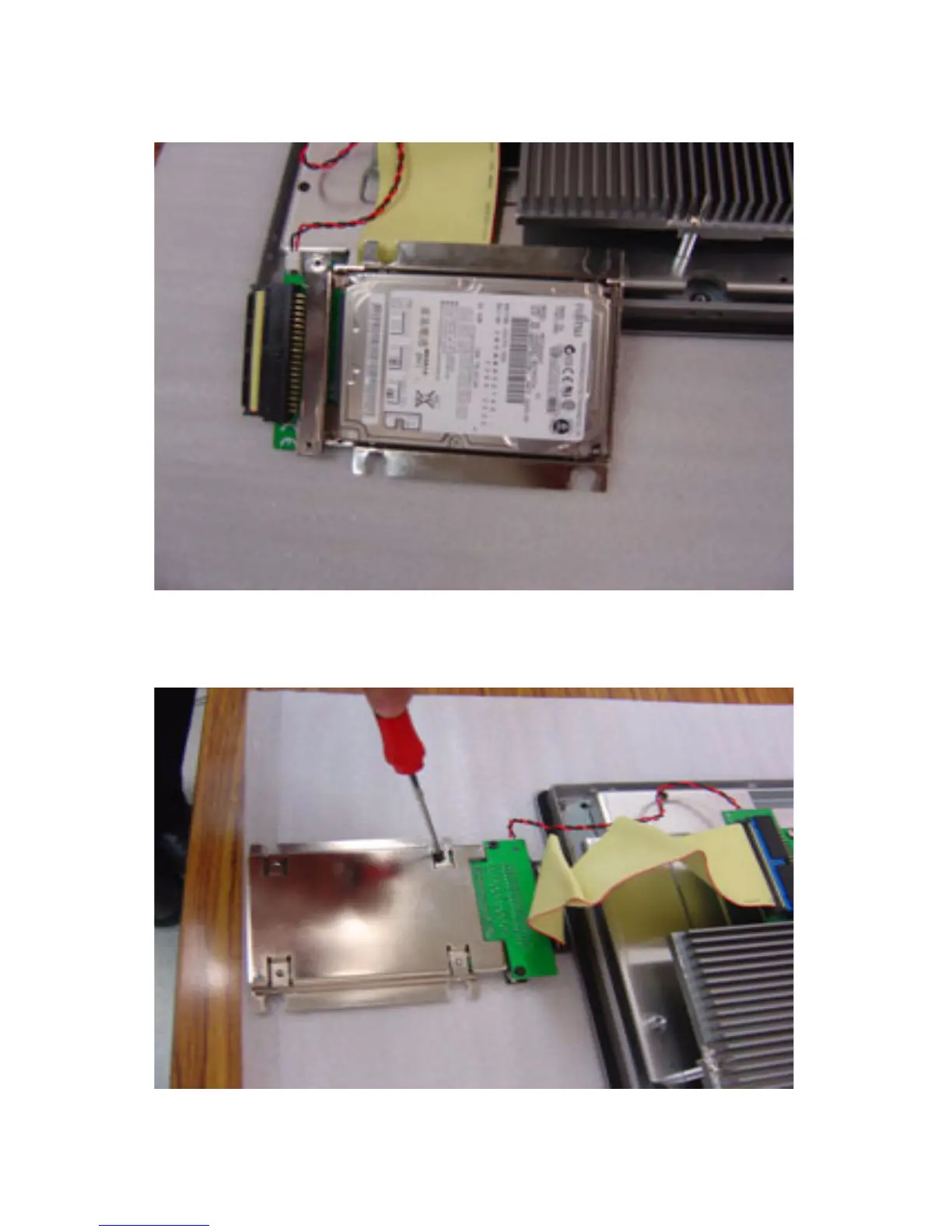

Figure E.7: Linking the HDD with the Connector
6. Fasten the HDD cover with screws
Figure E.8: Fastening the HDD cover
