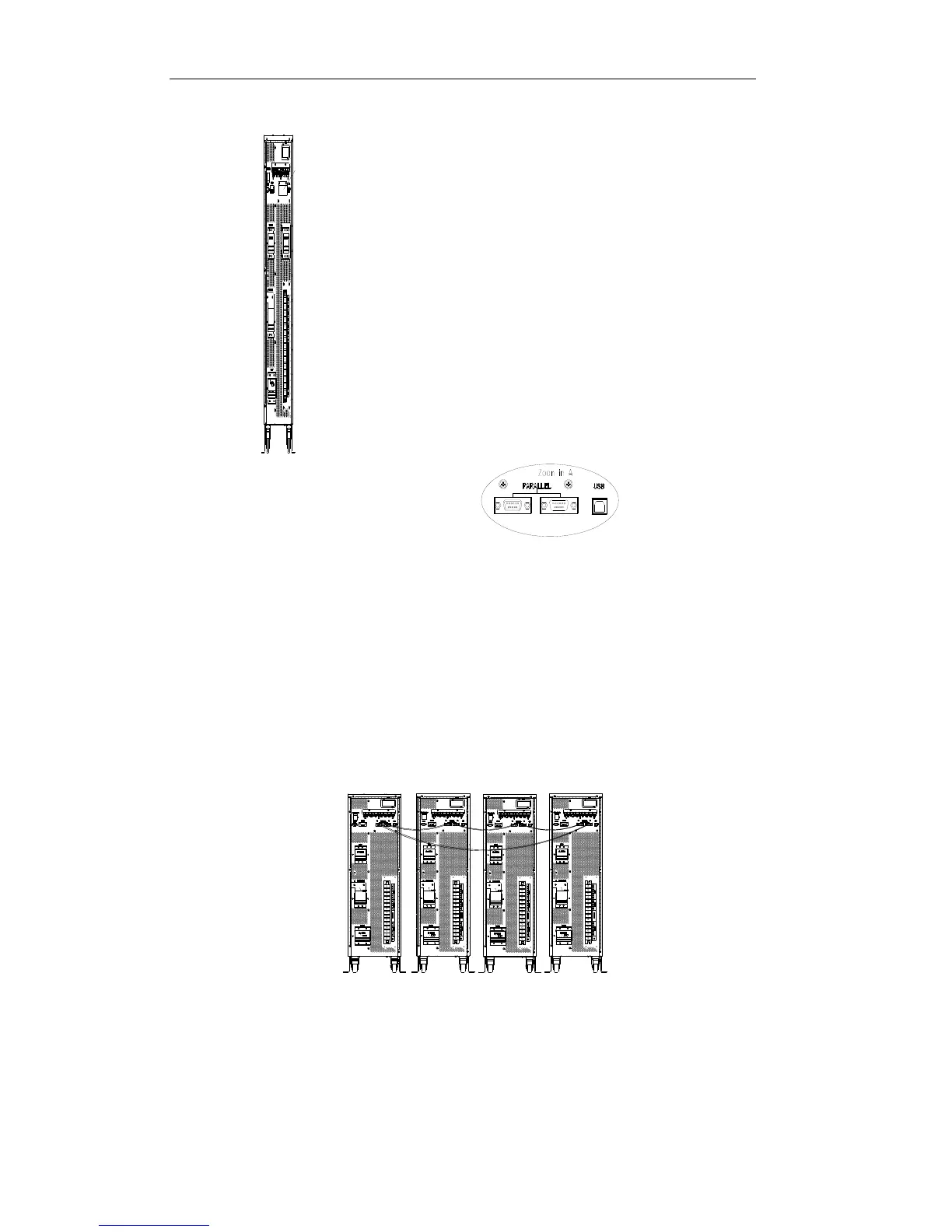

Fig.5-7 Location of the Parallel board
All the parallel cables are designed to be shielded and double insulated, and are
connected between the UPS to form a loop as shown below in Fig.5-8.
Fig.5-8 Parallel connection
