64
Ground Resistance Tester Model 6471
Selecting a sweep frequency test from the drop-down list will bring you to the
sweep table selection.
The Input Noise option allows the viewing of noise for Z or Y inputs.

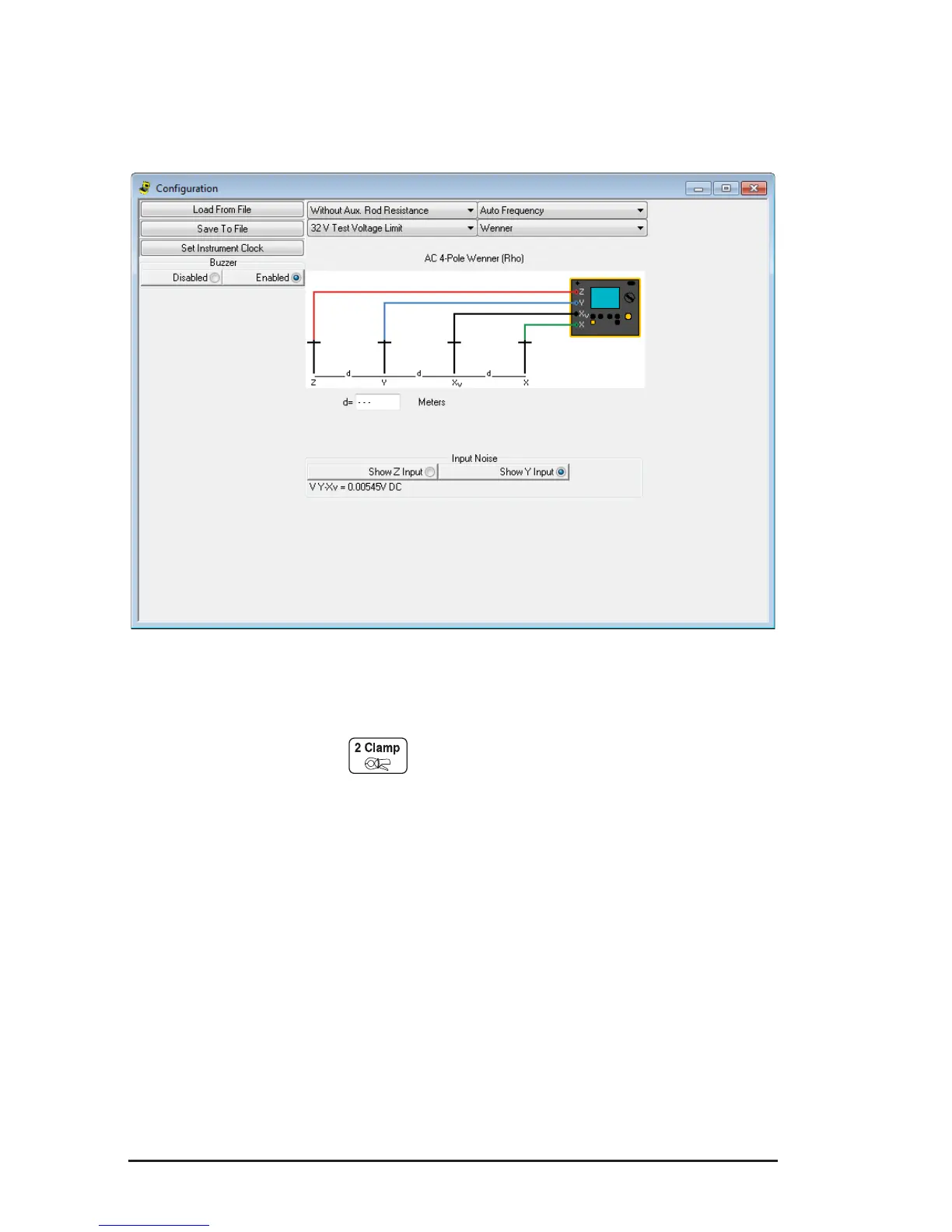

Figure 8-10
8.4.6 Ground Loop R
This mode can only be selected when there are current probes connected to the
Z and Xv terminals. When Ground Loop R is selected from the tool bar, you can
select:
• Auto frequency - selects the optimum frequency (from 1367 to 1758Hz),
usually 1367Hz, or select manually from the drop-down frequency list.
