AEQ BC-2500
Radio Broadcast Mixing Desk
15

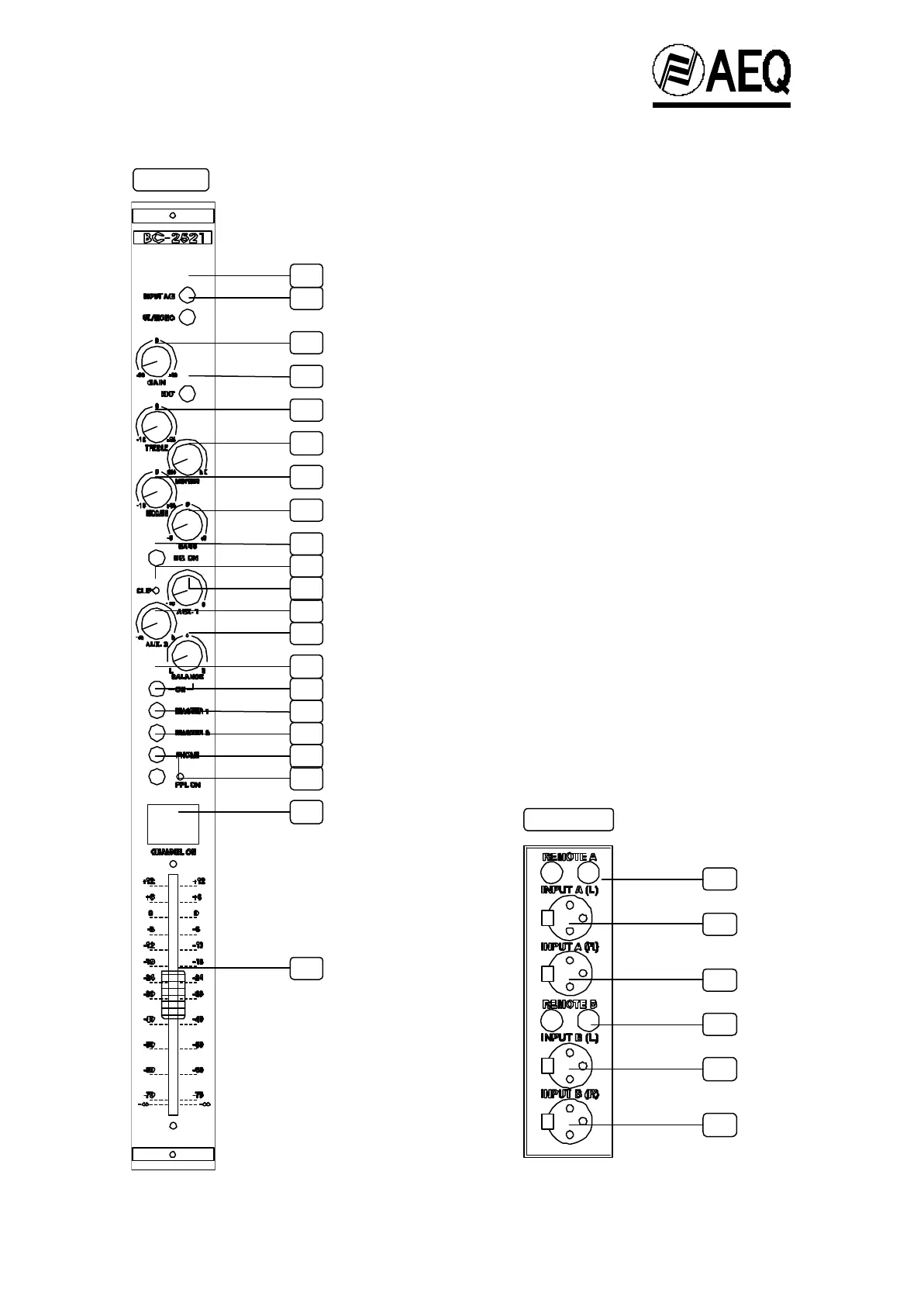

5.2.2. Description of Controls and Connectors.
1.- A/B Input selector switch INPUT A/B
2.- Mono/stereo selector switch ST/MONO
3.- Gain adjusting potentiometer GAIN
4.- Radiofrequency switch HFF
5.- Treble frequency level adjusting potentiometer TREBLE
6.- Middle frequency parametric equalizer potentiometer
MID/FREQ
7.- Middle frequency level adjusting potentiometer MID/GAIN
8.- Bass frequency level adjusting potentiometer BASS
9.- Equalizer activation switch EQ.ON
10.- Saturation level led indicator CLIP
11.- Send to auxiliary 1 bus potentiometer AUX. 1
12.- Send to auxiliary 2 bus potentiometer AUX. 2
13.- Balance level adjusting potentiometer BALANCE
14.- Balance activation switch BALANCE ON
15.- Send to master 1 output bus switch MASTER 1
16.- Send to master 2 output bus switch MASTER 2
17.- Send to telephone bus switch PHONE
18.- Send to pre-listen bus push-button PFL ON
19.- Pre-listen active led indicator PFL ON
20.- Channel activation switch CHANNEL ON
21.- Output level slide potentiometer FADER
22.- Line A remote connectors REMOTE A
23.- Line A left input connector INPUT A(L)
24.- Line A rigth input connector INPUT A (R)
25.- Line B remote connectors REMOTE B
26.- Line B left input connector INPUT B (L)
27.- Line B rigth input connector INPUT B (R)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
FRONT
REAR
