AEQ BC-2500

Radio Broadcast Mixing Desk

5.9. BC-2501 CHASSIS AND METER PANEL MODULE.

5.9.1. Functional description

The AEQ BC-2500 console is constructed on a metallic chassis with a capacity of 20

modules (BC-2501 FM or 24 modules (BC-2501) always occupy a minimum of 4 modules, being

the minimum number necessary for console operation (modules BC-2578 & BC-2560).

The chassis incorporates a panel housing the console pre-listen stereo loudspeakers and

meters.

The meter panel houses 4 meters with stereo bar-graph and simultaneous displays for

monitoring the outputs from: Master 1 MASTER 1 (1), Master 2 MASTER 2 (2), pre-listen or pre-

listens activated PFL (3) and the parameters selected by the monitor module and SELECT (4)

control (see chapter 5.7. section 5.7.1.1.).

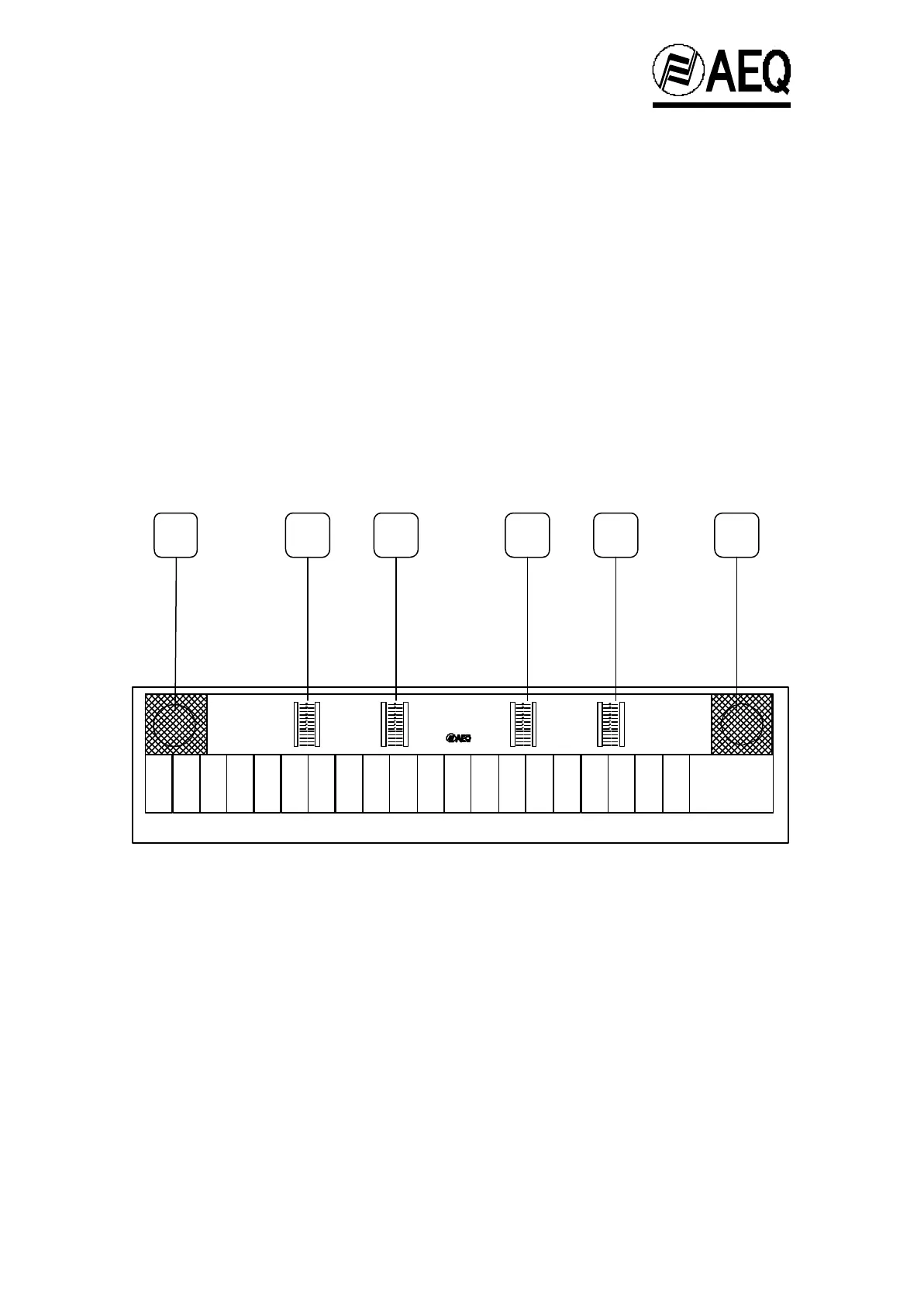

1.- Master 1 output meter MASTER 1

2.- Master 2 output meter MASTER 2

3.- Selected pre-listen meter PFL

4.- Selected control monitor meter SELECT

5.- Left channel pre-listen loudspeaker

6.- Rigth channel pre-listen loudspeaker

5 1

2 3 4 6
