AEQ BC
-
2500
Radio Broadcast Mixing Desk
42

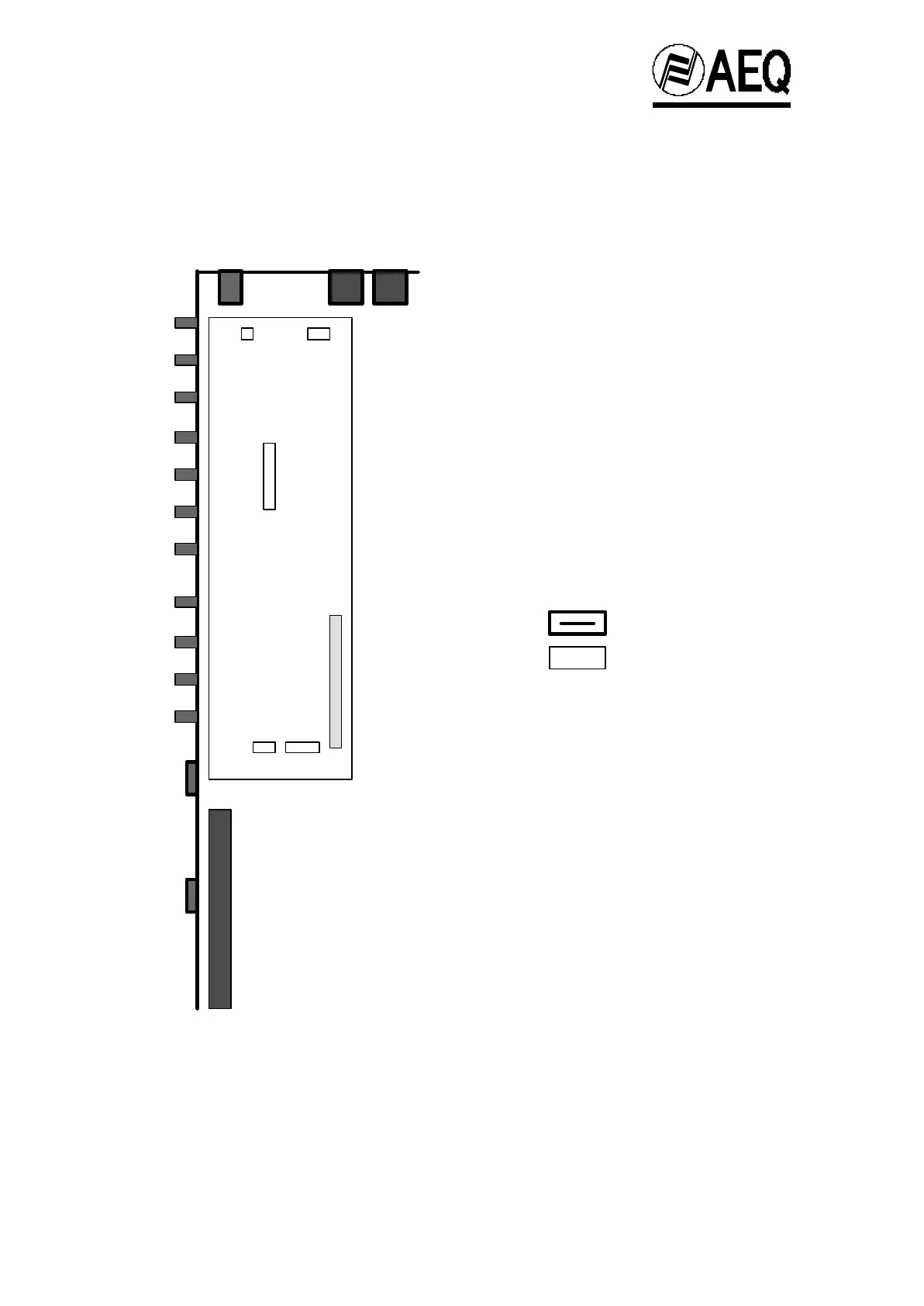

7.2. Position of the BC
-
2511 module programming bridges.
BC
-
2511 Module
(I.C. board view)
1
10
2
3
4
5
11
12
6,7,8,9
13
P.D.P defect
positions
P.D.P.1 Off
P.D.P.2 On
P.D.P.3 Off
P.D.P.4 On
P.D.P.5 Off
P.D.P.6 Off
P.D.P.7 On
P.D.P.8 On
P.D.P.9 On
P.D.P.10 Off
P.D.P.11/12
-
1C Off
P.D.P.11/12
-
2C On
P.D.P.11/12
-
3C Off
P.D.P.13 On
On
Bridge installed
Off
Bridge not installed
0 0
0 0
40
42
