AEQ BC-2500 User Manual

AEQ BC-2500
Radio Broadcast Mixing Desk
20

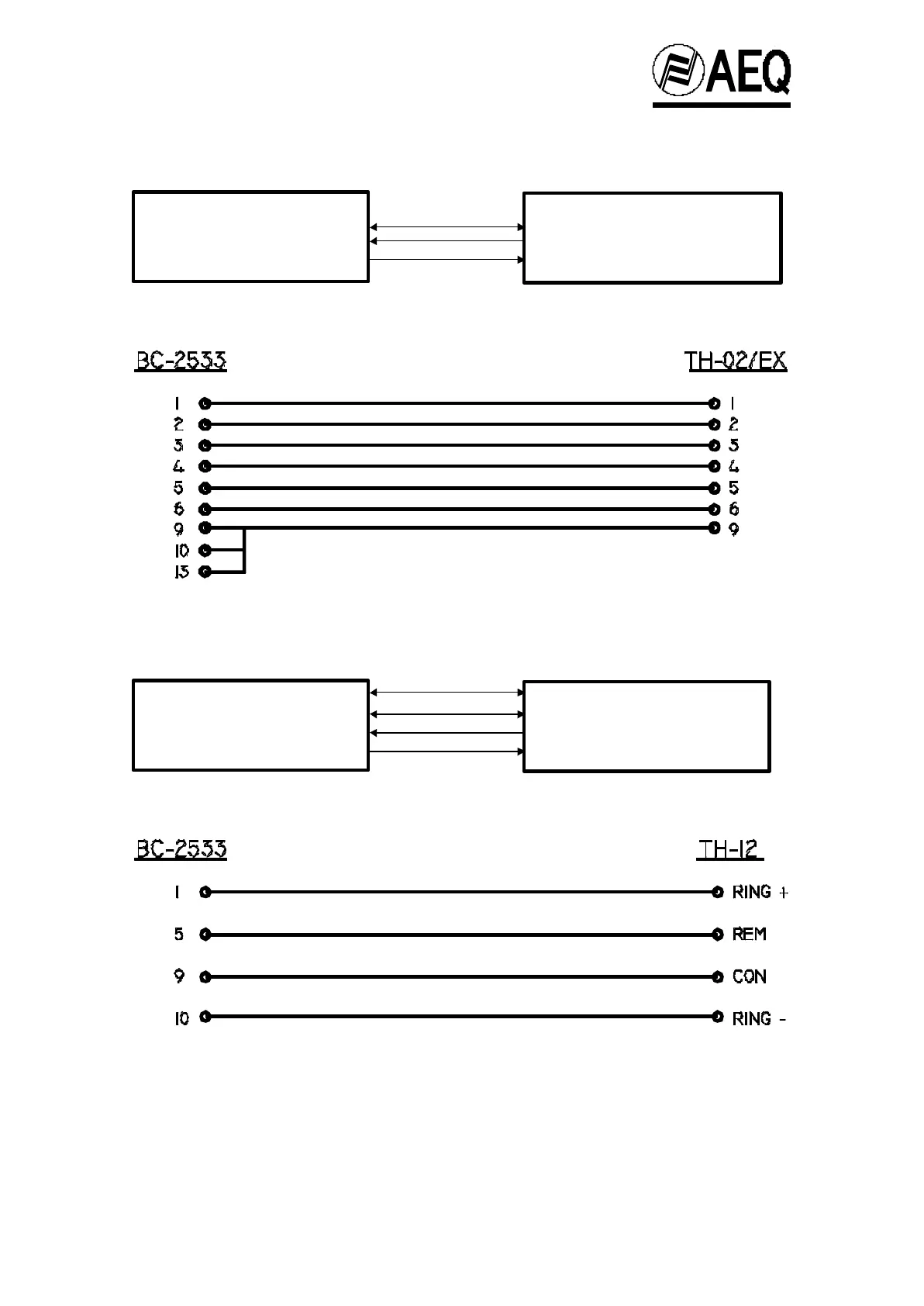

5.4.2. Example of remote connection of the Hybrid AEQ TH-02 MKII
BC-2533 TH-02 MKII
Module. Hybrid pin connector.
5.4.3. Example of remote connection of the Hybrid AEQ TH-12
Module BC-2533 TH-12
Module. Hybrid pin connector.
Note: The situation of P.D.P. (program bridges) varies according to the AEQ external hybrid model
selected. Consult Section 7 for further explanation.
If you own an EAGLE ISDN Audiocodec, you can use it as an hybrid. Read EAGLE Users
Manual in order to make the connection.
REMOTE
INPUT FROM LINE
OUTPUT TO LINE
REMOTE
OUTPUT
INPUT
REMOTE RING 1
REMOTE AIR 1
INPUT FROM LINE
OUTPUT TO LINE
RING
AIR
OUTPUT
INPUT
