AEQ BC
-
2500
Radio Broadcast Mixing Desk
19

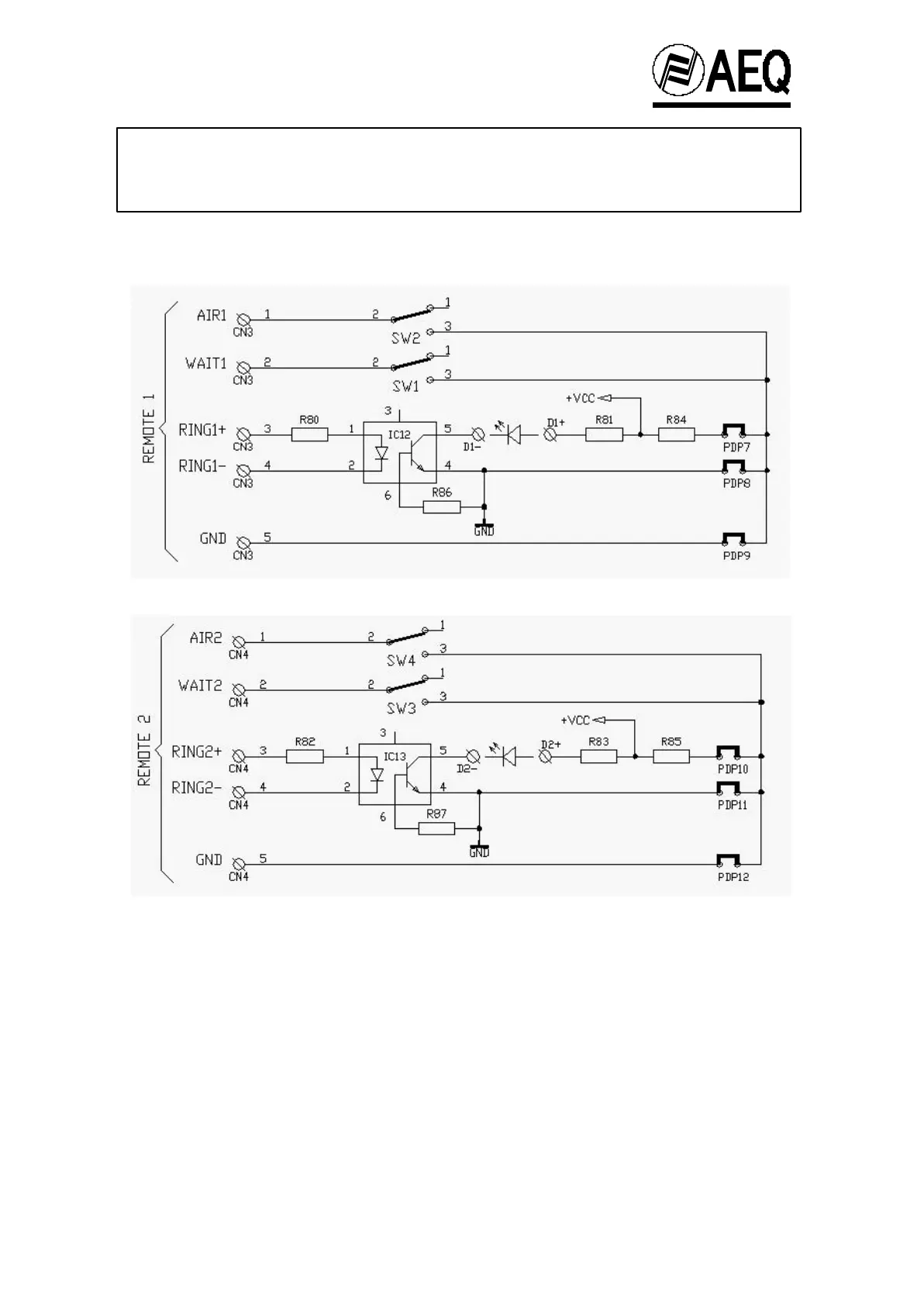

These are the diagrams of the internal configuration of the remote signals:
Note:
The
BC
-
2533
module can be programmed for connection to telephone bus 1 or 2. This
operation is performed
during manufacturate. To alter this specification our Technical Service
department should be consulted.
It should be noted that two BC
-
2533 modules must never be
connected to the same telephone bus.
17
19
Table of Contents
Table of Contents
2
Description of Controls and Connectors
3
Functional Description
3
Block Diagram
4
General Precautions
5
Equipment Power Supply
7
Before Connection to the Mains Supply
7
Voltage Selection
7
Switching on the Equipment
7
Audio Connections
8
Mixer Description
9
Basic Design Concepts
9
Initial Configuration
10
Module Description
11
BC-2511 Micro/Line Mono Input Module
11
Functional Description
11
Description of Controls and Connectors
12
BC-2521 Double Line Equalized Stereo Input Module
13
BC-2522 Double Line Stereo Input Module
15
BC-2533 Hybrid Telephone Input/Output Module
17
Example of Remote Connection of the Hybrid AEQ TH-02 MKII
19
Example of Remote Connection of the Hybrid AEQ TH-12
19
BC-2560-A Stereophonic + Sum Monophonic Output Module
21
BC-2560-C Stereophonic+Sum Monophonic Output+Input Bypass Module
23
BC-2578 Monitoring, Control and Signaling Module
25
Control Monitor, Meters and Pre-Listen Block
25
Monitor Level
25
Studio Monitor Block
27
Command, Intercom, Oscillator and Time-Signal Administration Block
29
Signal, Studio and Control Monitor Cut Administration Block
31
Remote Functions Block
32
Description of Rear Connectors
33
I/O Connector
33
BC-2523 External Power Supply Module
34
Rear Panel
34
BC-2501 Chassis and Meter Panel Module
35
Technical Specifications
36
Dimensions
39
20/24 Module Chassis Diagram
39
Configurationn Programming Bridges
40
BC-2511 Programming Bridges.
40
Position of the BC-2511 Module Programming Bridges
41
BC-2521/22 Programming Bridges
43
Position of the BC-2521/22 Module Programming Bridges
44
BC-2560 A/C Programming Bridges
46
Position of the BC-2560 A/C Module Programming Bridges
47
BC-2533 Programming Bridges
48
Position of the BC-2533 Module Programming Bridges
50
BC-2578 Programming Bridges
52
Position of the BC-2578 Module Programming Bridges
54
Appendix 1: Aeq Warranty
56
