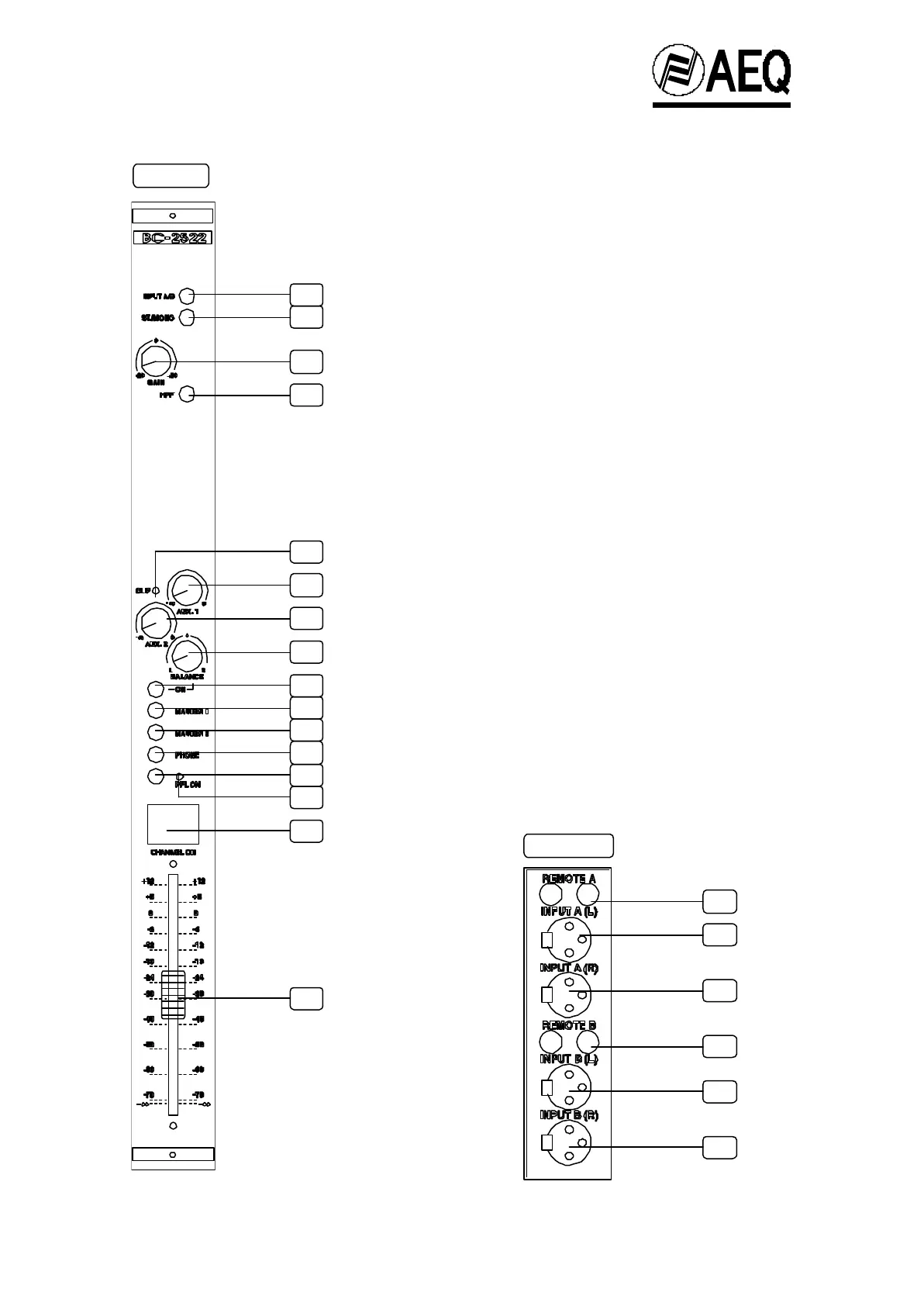

5.3.2. Description of Controls and Connectors.
1.- A/B Input selector switch INPUT A/B
2.- Mono/stereo selector switch ST/MONO
3.- Gain adjusting potentiometer GAIN
4.- Radiofrequency switch HFF
5.- Saturation level led indicator CLIP
6.- Send to auxiliary 1 bus potentiometer AUX. 1
7.- Send to auxiliary 2 bus potentiometer AUX. 2
8.- Balance level adjusting potentiometer BALANCE
9.- Balance activation switch BALANCE ON
10.- Send to master 1 output bus switch MASTER 1
11.- Send to master 2 output bus switch MASTER 2
12.- Send to telephone bus switch PHONE
13.- Send to pre-listen bus push-button PFL ON
14.- Pre-listen active led indicator PFL ON
15.- Channel activation switch CHANNEL ON
16.- Output level slide potentiometer FADER
17.- Line A remote connectors REMOTE A
18.- Line A left input connector INPUT A (L)
19.- Line A rigth input connector INPUT A (R)
20.- Line B remote connectors REMOTE B
21.- Line B left input connector INPUT B (L)
22.- Line B rigth input connector INPUT B (R)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
REAR
FRONT
