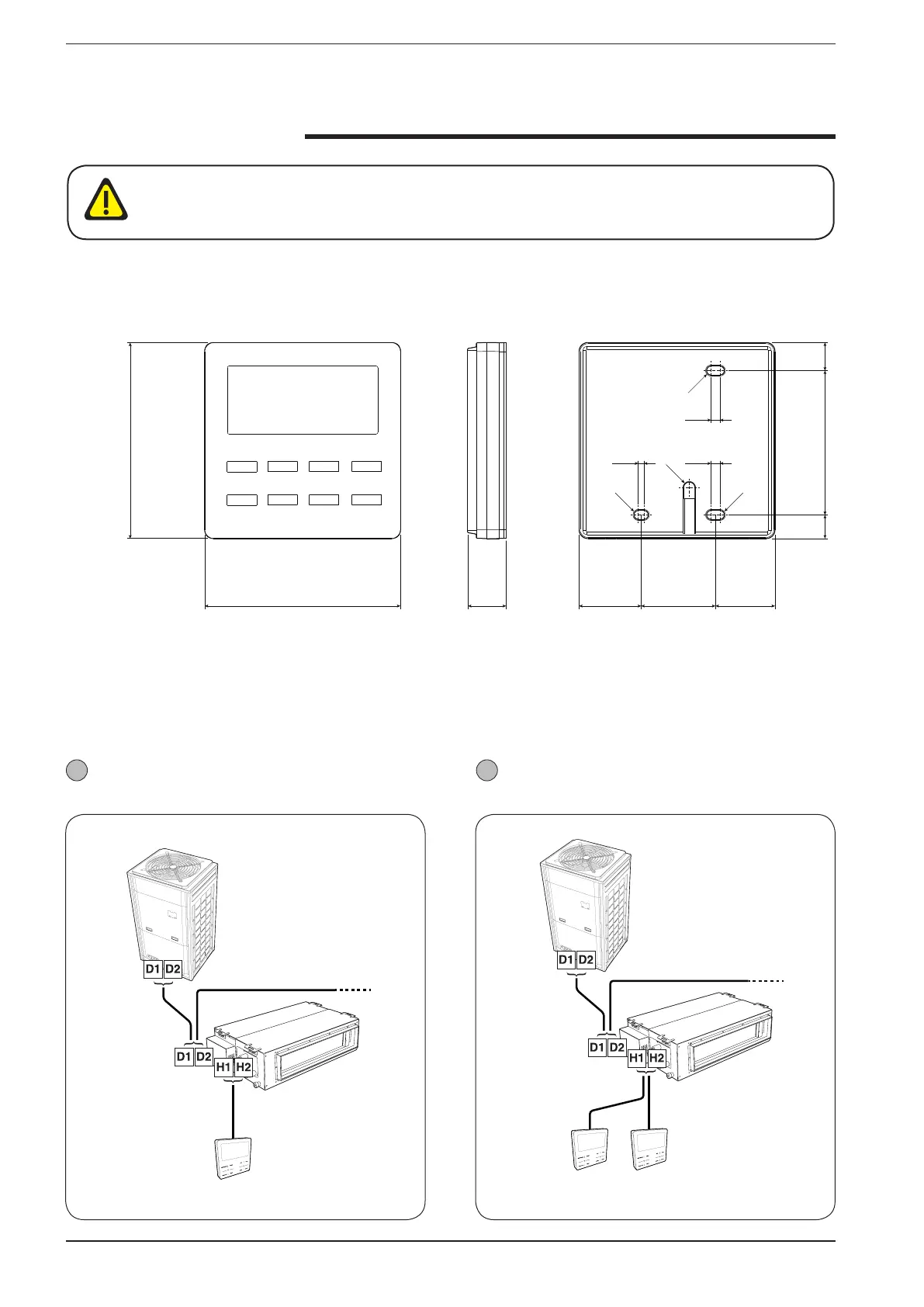

AERMEC WRC - Installing the wired panel; Dimensions of the wired panel; Serial connection

8
Serial connection:
The wired panel communicates with the Indoor unit through a serial port; it is possible to select several Indoor unit management
configurations using the wired panel:
SINGLE connection, where the unit (or group of units)
is managed by a single wired panel:
A
DUAL connection, where the unit (or group of units)
is managed by two wired panels, one of which is the
MASTER and the other is the SLAVE:
B
Outdoor unit
Indoor unit
Wired panel
Outdoor unit
Indoor unit
Wired panel
(MASTER)
Wired panel
(SLAVE)
Installing the wired panel
112 22 35,5 42,5 34
112
83 1613
3 5
5
R2,7
R2,7
R2,7
R3,3
[mm]
WARNING: MVA SYSTEMS MUST HAVE A MASTER ONLY ONE) FOR CORRECT MANAGEMENT
OF THE OPERATING MODES.
FOR THE SETTING PROCEDURE, REFER TO THE SPECIFIC SECTION.
Dimensions of the wired panel:
