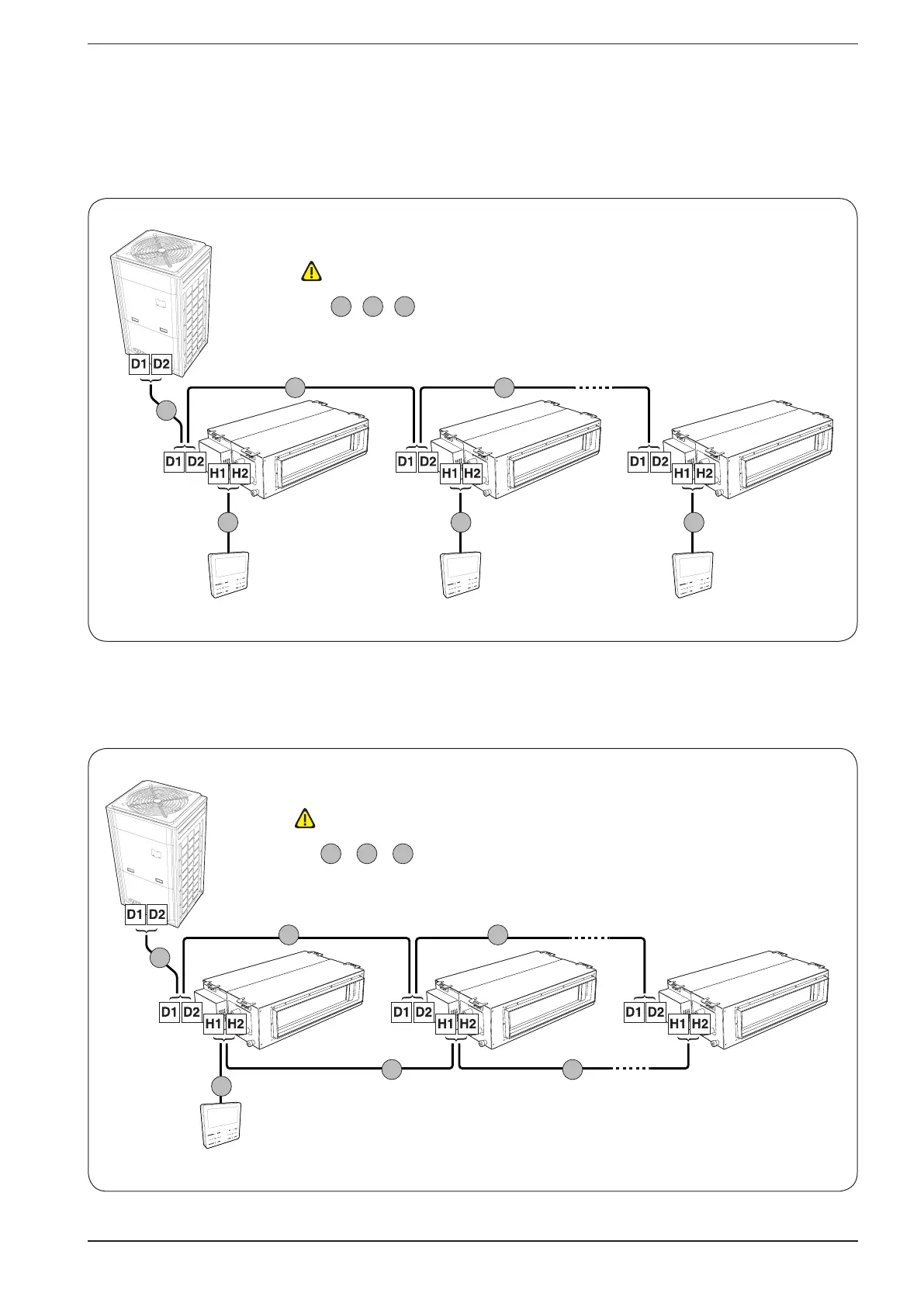

AERMEC WRC - Examples of serial connection between wired panel and indoor unit

9
Outdoor unit
Indoor unit (A) Indoor unit (B) Indoor unit (n)
Wired panel (A) Wired panel (B) Wired panel (n)
1
3
2
5
4 6
WARNING
2
,
4
,
6
≤ 250m
Outdoor unit
Indoor unit (A) Indoor unit (B) Indoor unit (n)
Wired panel
1
3
2
5
4 6
WARNING
2
+
4
+
6
≤ 250m
The first serial connection possibility envisages a panel (re-
minder: each individual unit of group of units can be man-
aged by a single panel or by two panels connected to the
same Indoor unit in MASTER/SLAVE mode, as indicated in the
previous page) for each unit; this solution allows customised
settings for the timer, setpoint and ventilation speed for each
Indoor unit;
Examples of serial connection between wired panel and indoor unit:
The second serial connection possibility envisages only one
panel (reminder: each individual unit of group of units can be
managed by a single panel or by two panels connected to
the same Indoor unit in MASTER/SLAVE mode, as indicated in
the previous page) for the overall group of units (a group may
comprise max. 16 units); this solution allows unique settings
for the timer, setpoint and ventilation speed for all the Indoor
units in the group;
