10

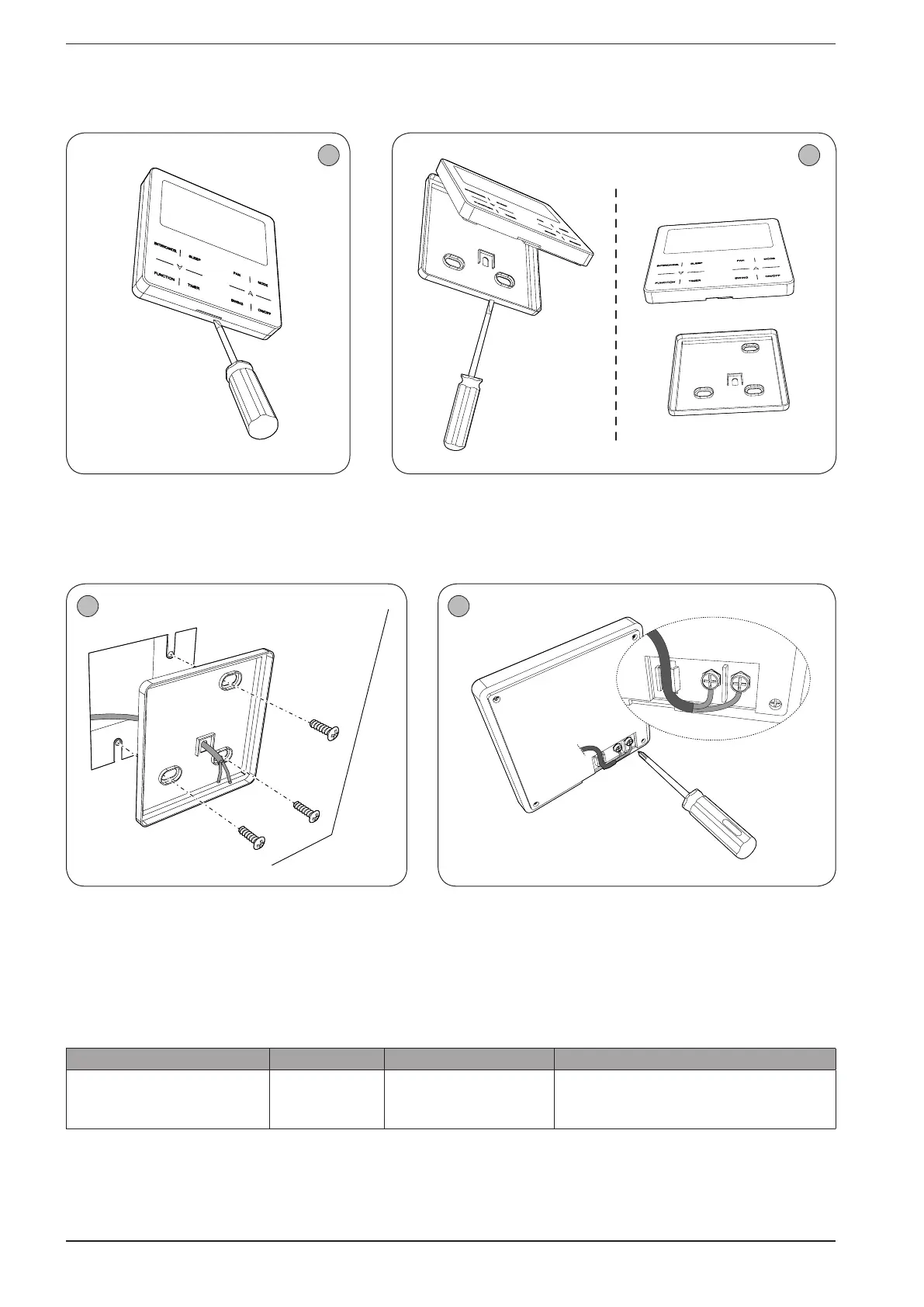

The first operation needed to install the wired
panel is to open it using a flat screwdriver by
pressing in the specific slot on the base of the
panel.
After opening the wired panel, separate the front part from the rear body.
Mount the body securely on the wall (in the position spe-
cifically chosen during the plant design stage) using the
screws supplied with the equipment; before securing
the panel, remember to pass the communication ca-
ble (not supplied) through the rear hole in the body as
shown in the figure.
NB The features of the communication cable are
given in the following table.
Type of cable Max length Diameter Notes
Standard 2-pole cable with
PVC sheath
(60227 IEC 52 / 60227 IEC 53)
250 metres from 2x0.75 to 2x1.25mm
2
Serial communication cable
NOT supplied with the equipment
Connect the serial cable terminals (stripped as required) to the
screw terminals on the panel board; after tightening appropriately,
secure the cable using the cable clip as shown in the figure.
1 2
3 4
Wired panel installation procedure:
