DTMF Configuration Tile
The DTMF Configuration Tile contains parameters that are used by the Test Set’s Generators when
sending DTMF tones. DTMF Waveform must be selected on the Generators Tile for parameters to
apply.

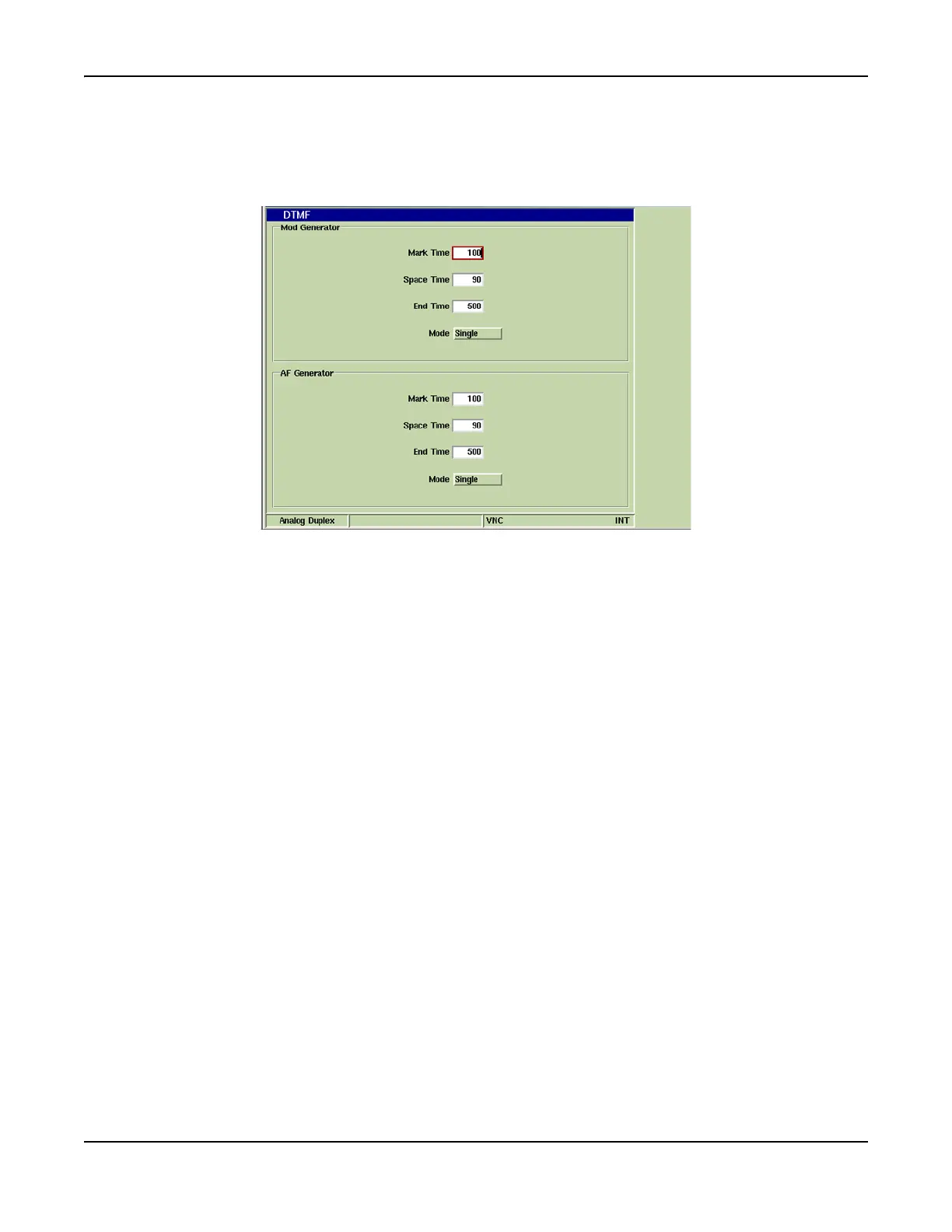

Fig. 8-14 DTMF Configuration Tile
Field/Soft Key Definitions
Mark Time
Sets time period in which the DTMF tone is ON. Defined in milliseconds.
Space Time
Sets dead time between DTMF tones of a sequence. Defined in milliseconds.
End Time
Sets dead time between complete DTMF sequences. This parameter is only valid when
Continuous Mode of operation is selected.
Mode
Selects how many DTMF pulses are sent (Single or Continuous).
