1-14 Subject to Export Control, see Cover Page for details.

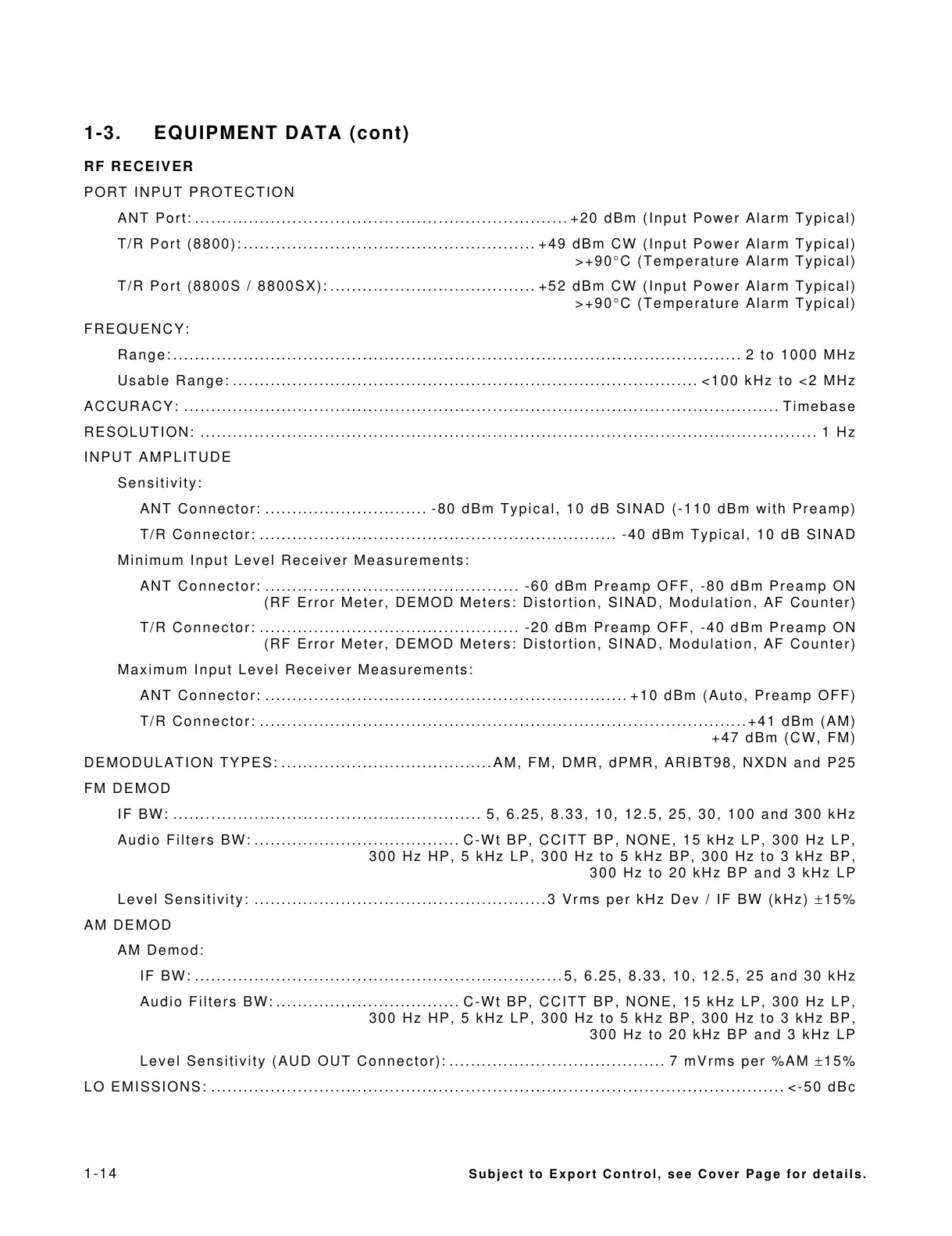

1-3. EQUIPMENT DATA (cont)
RF RECEIVER
PORT INPUT PROTECTION
ANT Port: ..................................................................... +20 dBm (Input Power Alarm Typical)
T/R Port (8800): ...................................................... +49 dBm CW (Input Power Alarm Typical)
>+90°C (Temperature Alarm Typical)
T/R Port (8800S / 8800SX): ...................................... +52 dBm CW (Input Power Alarm Typical)
>+90°C (Temperature Alarm Typical)
FREQUENCY:
Range: ......................................................................................................... 2 to 1000 MHz
Usable Range: ...................................................................................... <100 kHz to <2 MHz
ACCURACY: .............................................................................................................. Timebase
RESOLUTION: .................................................................................................................. 1 Hz
INPUT AMPLITUDE
Sensitivity:
ANT Connector: .............................. -80 dBm Typical, 10 dB SINAD (-110 dBm with Preamp)
T/R Connector: .................................................................. -40 dBm Typical, 10 dB SINAD
Minimum Input Level Receiver Measurements:
ANT Connector: ............................................... -60 dBm Preamp OFF, -80 dBm Preamp ON
(RF Error Meter, DEMOD Meters: Distortion, SINAD, Modulation, AF Counter)
T/R Connector: ................................................ -20 dBm Preamp OFF, -40 dBm Preamp ON
(RF Error Meter, DEMOD Meters: Distortion, SINAD, Modulation, AF Counter)
Maximum Input Level Receiver Measurements:
ANT Connector: ................................................................... +10 dBm (Auto, Preamp OFF)
T/R Connector: .......................................................................................... +41 dBm (AM)
+47 dBm (CW, FM)
DEMODULATION TYPES: ....................................... AM, FM, DMR, dPMR, ARIBT98, NXDN and P25
FM DEMOD
IF BW: ......................................................... 5, 6.25, 8.33, 10, 12.5, 25, 30, 100 and 300 kHz
Audio Filters BW: ...................................... C-Wt BP, CCITT BP, NONE, 15 kHz LP, 300 Hz LP,
300 Hz HP, 5 kHz LP, 300 Hz to 5 kHz BP, 300 Hz to 3 kHz BP,
300 Hz to 20 kHz BP and 3 kHz LP
Level Sensitivity: ...................................................... 3 Vrms per kHz Dev / IF BW (kHz) ±15%
AM DEMOD
AM Demod:
IF BW: .................................................................... 5, 6.25, 8.33, 10, 12.5, 25 and 30 kHz
Audio Filters BW: .................................. C-Wt BP, CCITT BP, NONE, 15 kHz LP, 300 Hz LP,
300 Hz HP, 5 kHz LP, 300 Hz to 5 kHz BP, 300 Hz to 3 kHz BP,
300 Hz to 20 kHz BP and 3 kHz LP
Level Sensitivity (AUD OUT Connector): ........................................ 7 mVrms per %AM ±15%
LO EMISSIONS: .......................................................................................................... <-50 dBc
