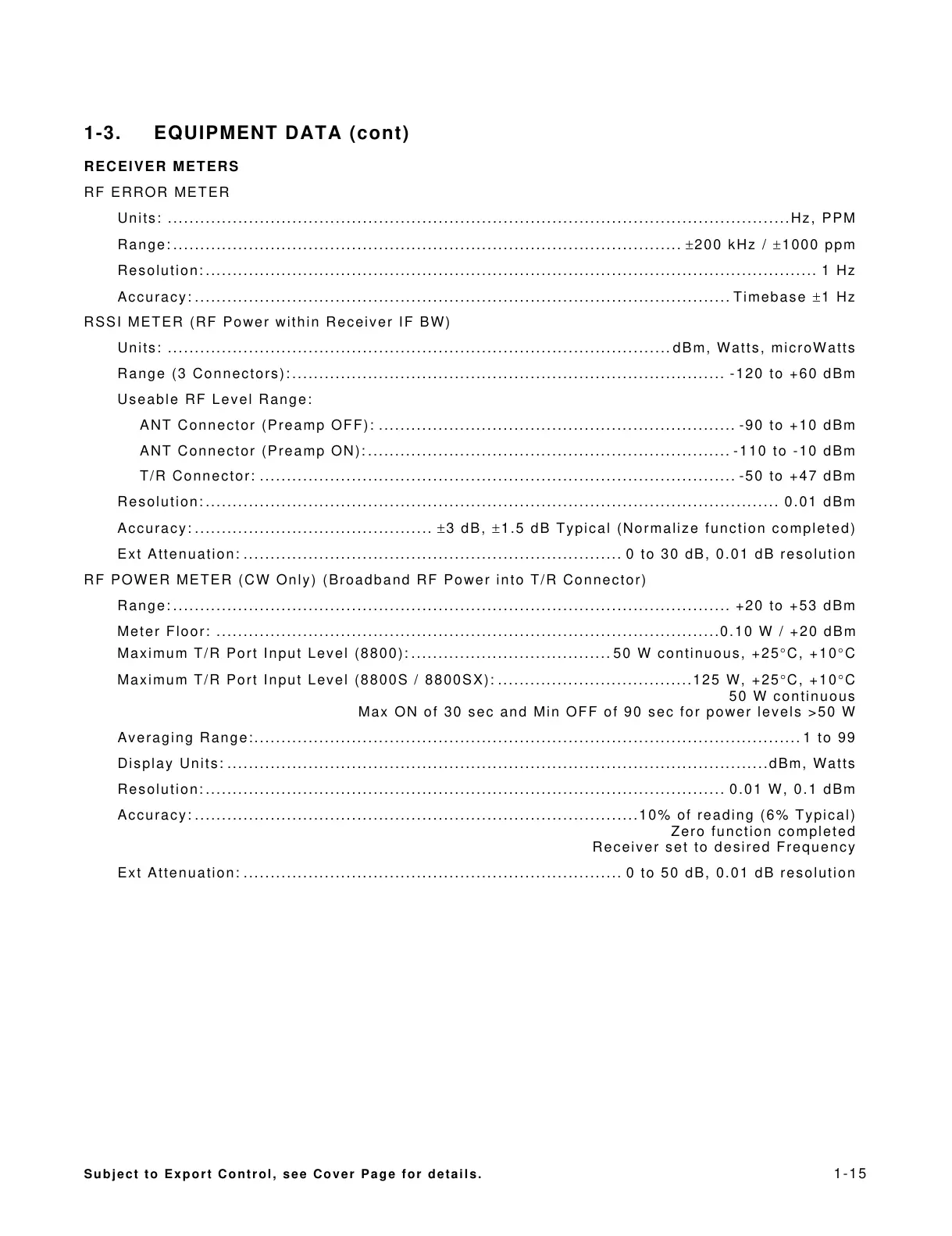

1-3. EQUIPMENT DATA (cont)
RECEIVER METERS
RF ERROR METER
Units: ................................................................................................................... Hz, PPM
Range: .............................................................................................. ±200 kHz / ±1000 ppm
Resolution: ................................................................................................................. 1 Hz
Accuracy: ................................................................................................... Timebase ± 1 Hz
RSSI METER (RF Power within Receiver IF BW)
Units: ............................................................................................. dBm, Watts, microWatts
Range (3 Connectors): ................................................................................ -120 to +60 dBm
Useable RF Level Range:
ANT Connector (Preamp OFF): .................................................................. -90 to +10 dBm
ANT Connector (Preamp ON): ................................................................... -110 to -10 dBm
T/R Connector: ........................................................................................ -50 to +47 dBm
Resolution: .......................................................................................................... 0.01 dBm
Accuracy: ............................................ ± 3 dB, ± 1.5 dB Typical (Normalize function completed)
Ext Attenuation: ...................................................................... 0 to 30 dB, 0.01 dB resolution
RF POWER METER (CW Only) (Broadband RF Power into T/R Connector)
Range: ....................................................................................................... +20 to +53 dBm
Meter Floor: .............................................................................................0.10 W / +20 dBm
Maximum T/R Port Input Level (8800): ..................................... 50 W continuous, +25°C, +10°C
Maximum T/R Port Input Level (8800S / 8800SX): ....................................125 W, +25°C, +10°C
50 W continuous
Max ON of 30 sec and Min OFF of 90 sec for power levels >50 W
Averaging Range: ..................................................................................................... 1 to 99
Display Units: .................................................................................................... dBm, Watts
Resolution: ................................................................................................ 0.01 W, 0.1 dBm
Accuracy: .................................................................................. 10% of reading (6% Typical)
Zero function completed
Receiver set to desired Frequency
Ext Attenuation: ...................................................................... 0 to 50 dB, 0.01 dB resolution
