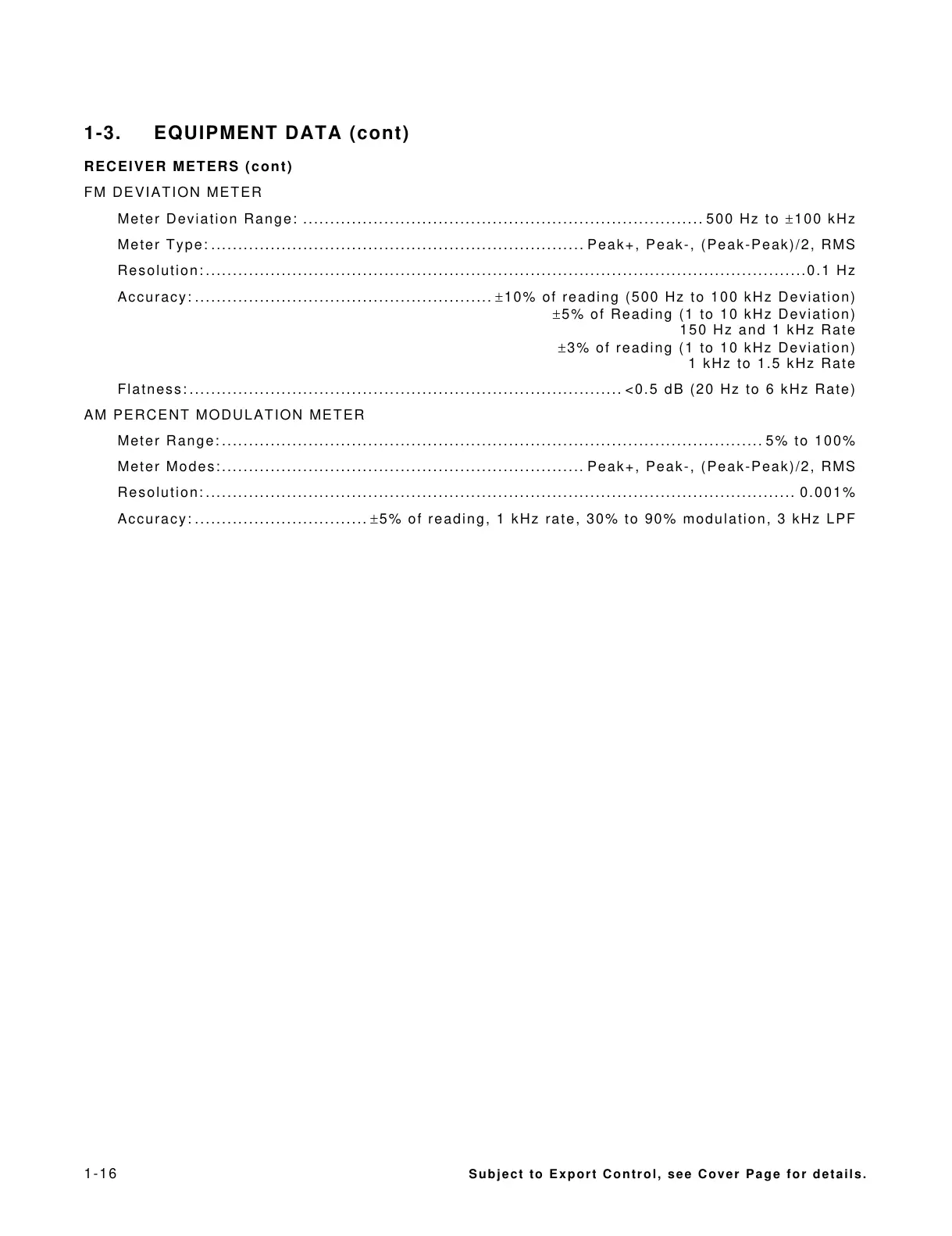

1-3. EQUIPMENT DATA (cont)
RECEIVER METERS (cont)
FM DEVIATION METER
Meter Deviation Range: .......................................................................... 500 Hz to ±100 kHz
Meter Type: ..................................................................... Peak+, Peak-, (Peak-Peak)/2, RMS
Resolution: ............................................................................................................... 0.1 Hz
Accuracy: ....................................................... ± 10% of reading (500 Hz to 100 kHz Deviation)
±5% of Reading (1 to 10 kHz Deviation)
150 Hz and 1 kHz Rate
±3% of reading (1 to 10 kHz Deviation)
1 kHz to 1.5 kHz Rate
Flatness: ................................................................................ <0.5 dB (20 Hz to 6 kHz Rate)
AM PERCENT MODULATION METER
Meter Range: .................................................................................................... 5% to 100%
Meter Modes: ................................................................... Peak+, Peak-, (Peak-Peak)/2, RMS
Resolution: ............................................................................................................. 0.001%
Accuracy: ................................ ±5% of reading, 1 kHz rate, 30% to 90% modulation, 3 kHz LPF
