Subject to Export Control, see Cover Page for details. 1-17

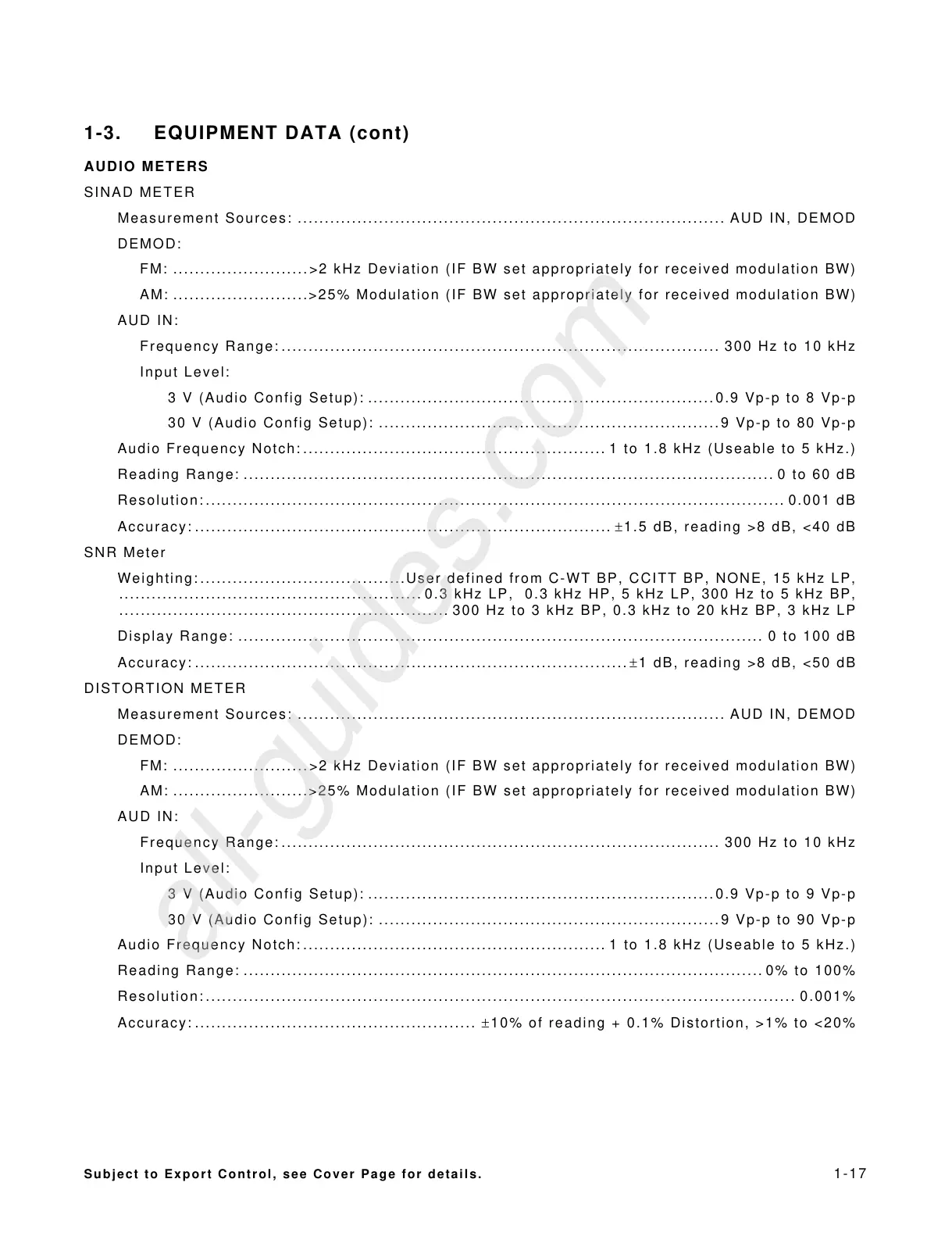

1-3. EQUIPMENT DATA (cont)
AUDIO METERS
SINAD METER
Measurement Sources: ............................................................................... AUD IN, DEMOD
DEMOD:
FM: ......................... >2 kHz Deviation (IF BW set appropriately for received modulation BW)
AM: .........................>25% Modulation (IF BW set appropriately for received modulation BW)
AUD IN:
Frequency Range: ................................................................................. 300 Hz to 10 kHz
Input Level:
3 V (Audio Config Setup): ................................................................ 0.9 Vp-p to 8 Vp-p
30 V (Audio Config Setup): ............................................................... 9 Vp-p to 80 Vp-p
Audio Frequency Notch: ........................................................ 1 to 1.8 kHz (Useable to 5 kHz.)
Reading Range: .................................................................................................. 0 to 60 dB
Resolution: ........................................................................................................... 0.001 dB
Accuracy: ............................................................................. ±1.5 dB, reading >8 dB, <40 dB
SNR Meter
Weighting: ...................................... User defined from C-WT BP, CCITT BP, NONE, 15 kHz LP,
........................................................ 0.3 kHz LP, 0.3 kHz HP, 5 kHz LP, 300 Hz to 5 kHz BP,
............................................................. 300 Hz to 3 kHz BP, 0.3 kHz to 20 kHz BP, 3 kHz LP
Display Range: ................................................................................................. 0 to 100 dB
Accuracy: ................................................................................ ± 1 dB, reading >8 dB, <50 dB
DISTORTION METER
Measurement Sources: ............................................................................... AUD IN, DEMOD
DEMOD:
FM: ......................... >2 kHz Deviation (IF BW set appropriately for received modulation BW)
AM: .........................>25% Modulation (IF BW set appropriately for received modulation BW)
AUD IN:
Frequency Range: ................................................................................. 300 Hz to 10 kHz
Input Level:
3 V (Audio Config Setup): ................................................................ 0.9 Vp-p to 9 Vp-p
30 V (Audio Config Setup): ............................................................... 9 Vp-p to 90 Vp-p
Audio Frequency Notch: ........................................................ 1 to 1.8 kHz (Useable to 5 kHz.)
Reading Range: ................................................................................................ 0% to 100%
Resolution: ............................................................................................................. 0.001%
Accuracy: .................................................... ±10% of reading + 0.1% Distortion, >1% to <20%
