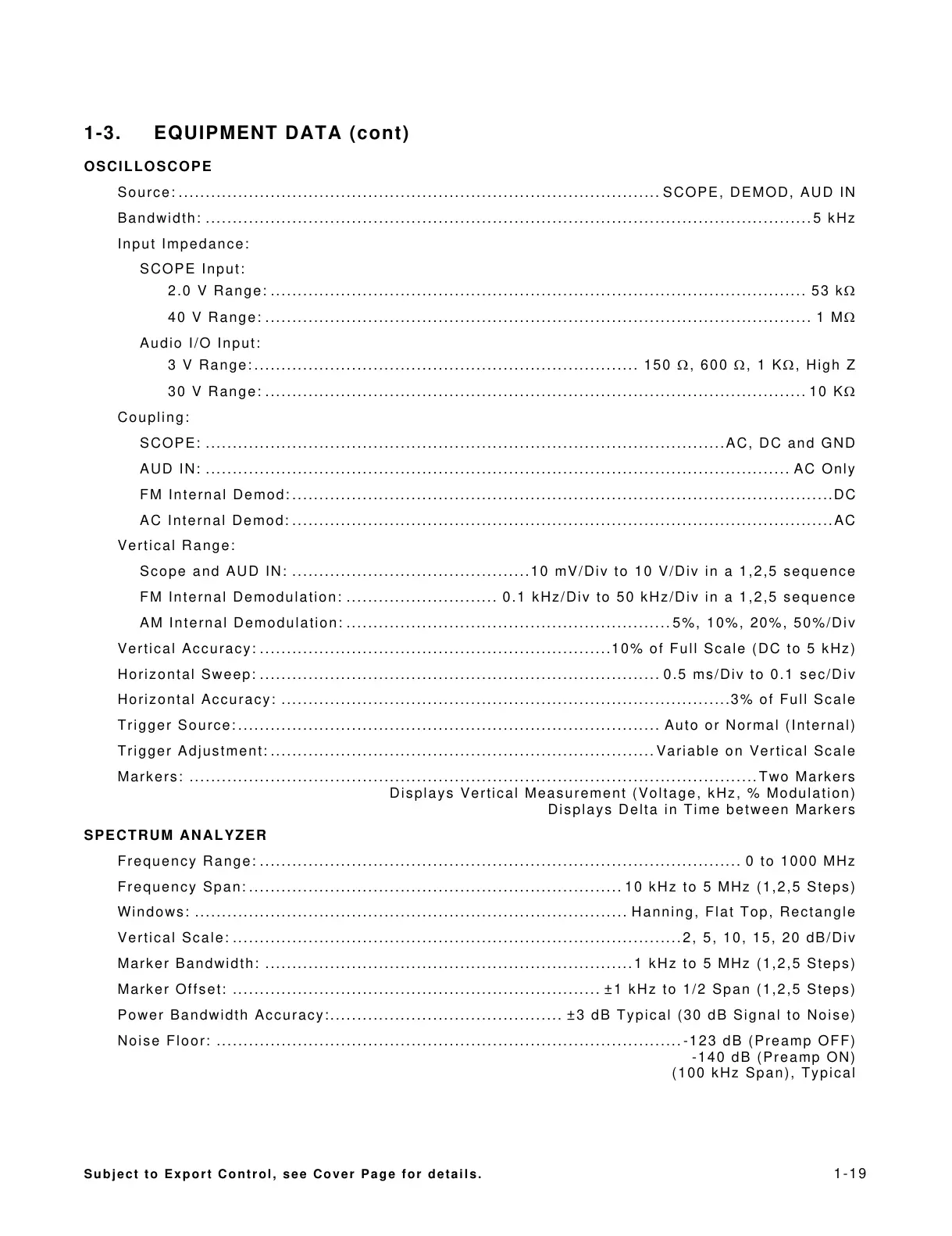

1-3. EQUIPMENT DATA (cont)
OSCILLOSCOPE
Source: ......................................................................................... SCOPE, DEMOD, AUD IN
Bandwidth: ................................................................................................................ 5 kHz
Input Impedance:
SCOPE Input:
2.0 V Range: ................................................................................................... 53 kΩ
40 V Range: ..................................................................................................... 1 MΩ
Audio I/O Input:
3 V Range: ....................................................................... 150 Ω , 600 Ω , 1 KΩ , High Z
30 V Range: .................................................................................................... 10 KΩ
Coupling:
SCOPE: ................................................................................................ AC, DC and GND
AUD IN: ............................................................................................................ AC Only
FM Internal Demod: ....................................................................................................DC
AC Internal Demod: .................................................................................................... AC
Vertical Range:
Scope and AUD IN: ............................................ 10 mV/Div to 10 V/Div in a 1,2,5 sequence
FM Internal Demodulation: ............................ 0.1 kHz/Div to 50 kHz/Div in a 1,2,5 sequence
AM Internal Demodulation: ............................................................ 5%, 10%, 20%, 50%/Div
Vertical Accuracy: .................................................................10% of Full Scale (DC to 5 kHz)
Horizontal Sweep: .......................................................................... 0.5 ms/Div to 0.1 sec/Div
Horizontal Accuracy: ................................................................................... 3% of Full Scale
Trigger Source: .............................................................................. Auto or Normal (Internal)
Trigger Adjustment: ....................................................................... Variable on Vertical Scale
Markers: ......................................................................................................... Two Markers
Displays Vertical Measurement (Voltage, kHz, % Modulation)
Displays Delta in Time between Markers
SPECTRUM ANALYZER
Frequency Range: ......................................................................................... 0 to 1000 MHz
Frequency Span: ..................................................................... 10 kHz to 5 MHz (1,2,5 Steps)
Windows: ................................................................................ Hanning, Flat Top, Rectangle
Vertical Scale: ................................................................................... 2, 5, 10, 15, 20 dB/Div
Marker Bandwidth: .................................................................... 1 kHz to 5 MHz (1,2,5 Steps)
Marker Offset: .................................................................... ±1 kHz to 1/2 Span (1,2,5 Steps)
Power Bandwidth Accuracy:........................................... ±3 dB Typical (30 dB Signal to Noise)
Noise Floor: ...................................................................................... -123 dB (Preamp OFF)
-140 dB (Preamp ON)
(100 kHz Span), Typical
