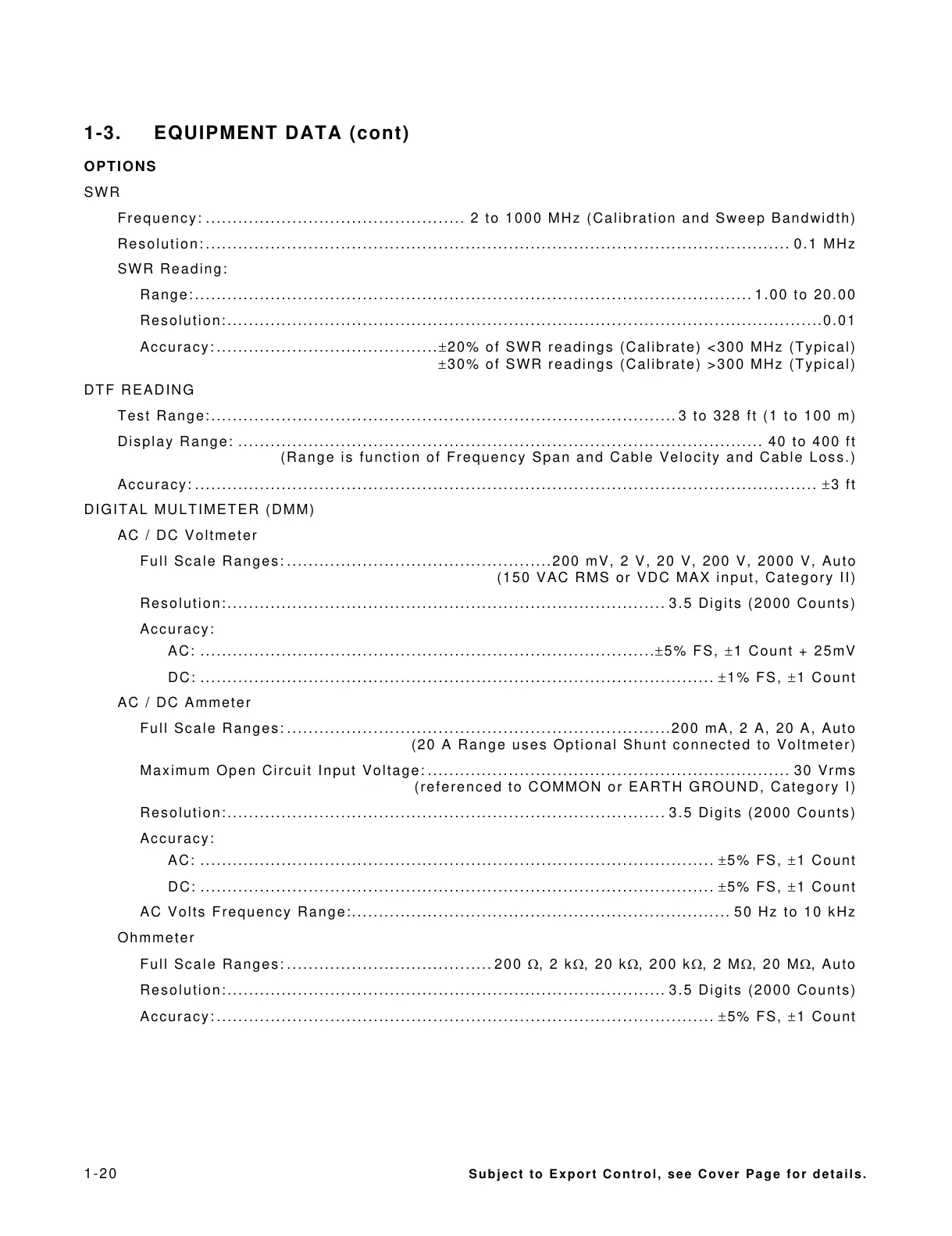

1-3. EQUIPMENT DATA (cont)
OPTIONS
SWR
Frequency: ................................................ 2 to 1000 MHz (Calibration and Sweep Bandwidth)
Resolution: ............................................................................................................ 0.1 MHz
SWR Reading:
Range: ....................................................................................................... 1.00 to 20.00
Resolution: .............................................................................................................. 0.01
Accuracy: .........................................±20% of SWR readings (Calibrate) <300 MHz (Typical)
±30% of SWR readings (Calibrate) >300 MHz (Typical)
DTF READING
Test Range: ...................................................................................... 3 to 328 ft (1 to 100 m)
Display Range: ................................................................................................. 40 to 400 ft
(Range is function of Frequency Span and Cable Velocity and Cable Loss.)
Accuracy: ................................................................................................................... ± 3 ft
DIGITAL MULTIMETER (DMM)
AC / DC Voltmeter
Full Scale Ranges: .................................................200 mV, 2 V, 20 V, 200 V, 2000 V, Auto
(150 VAC RMS or VDC MAX input, Category II)
Resolution: ................................................................................. 3.5 Digits (2000 Counts)
Accuracy:
AC: .................................................................................... ±5% FS, ± 1 Count + 25mV
DC: ............................................................................................... ±1% FS, ± 1 Count
AC / DC Ammeter
Full Scale Ranges: ....................................................................... 200 mA, 2 A, 20 A, Auto
(20 A Range uses Optional Shunt connected to Voltmeter)
Maximum Open Circuit Input Voltage: ................................................................... 30 Vrms
(referenced to COMMON or EARTH GROUND, Category I)
Resolution: ................................................................................. 3.5 Digits (2000 Counts)
Accuracy:
AC: ............................................................................................... ± 5% FS, ±1 Count
DC: ............................................................................................... ±5% FS, ± 1 Count
AC Volts Frequency Range:...................................................................... 50 Hz to 10 kHz
Ohmmeter
Full Scale Ranges: ...................................... 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ, Auto
Resolution: ................................................................................. 3.5 Digits (2000 Counts)
Accuracy: ............................................................................................ ±5% FS, ± 1 Count
