Subject to Export Control, see Cover Page for details. 1-21

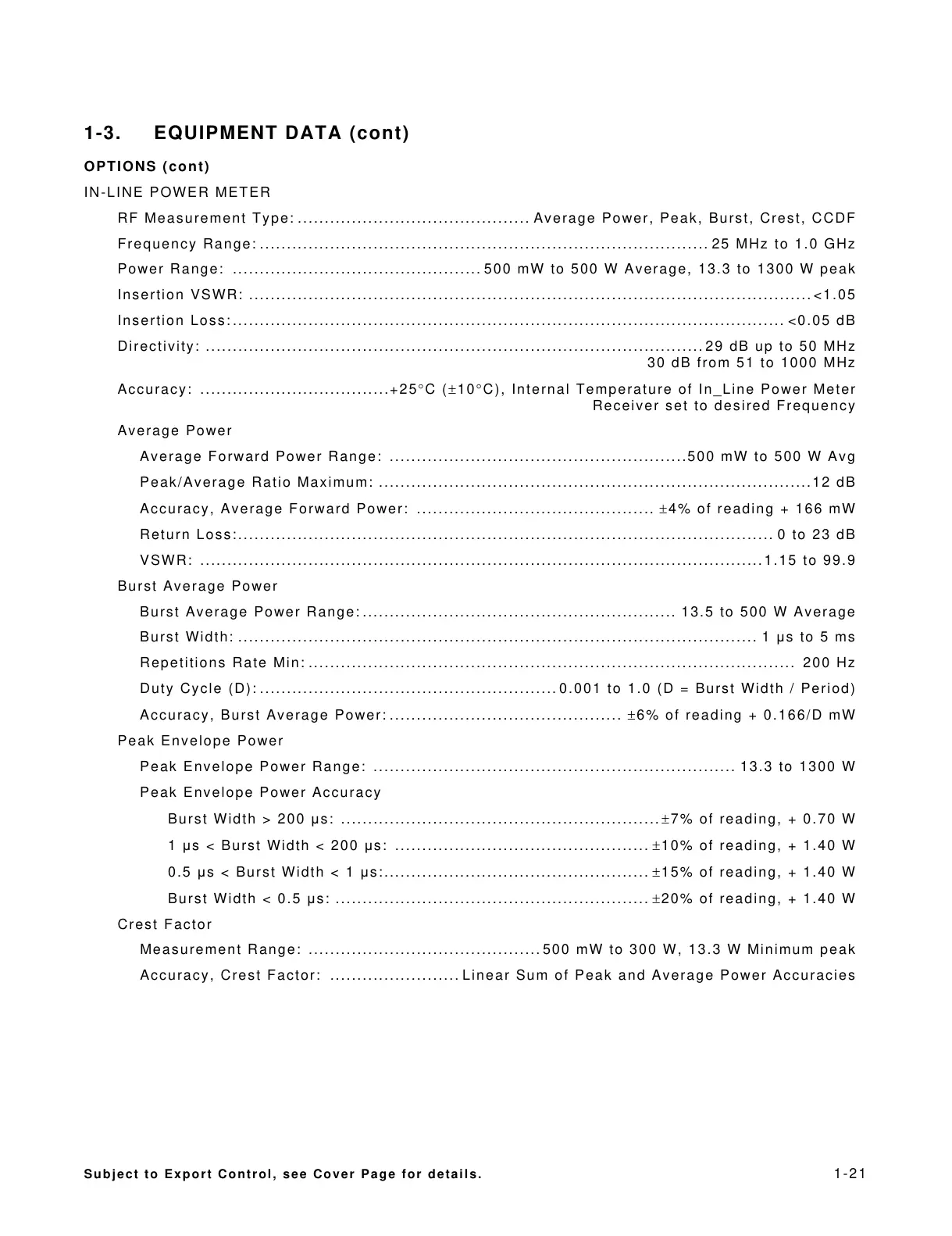

1-3. EQUIPMENT DATA (cont)
OPTIONS (cont)
IN-LINE POWER METER
RF Measurement Type: ........................................... Average Power, Peak, Burst, Crest, CCDF
Frequency Range: ................................................................................... 25 MHz to 1.0 GHz
Power Range: .............................................. 500 mW to 500 W Average, 13.3 to 1300 W peak
Insertion VSWR: ........................................................................................................ <1.05
Insertion Loss: ...................................................................................................... <0.05 dB
Directivity: ............................................................................................ 29 dB up to 50 MHz
30 dB from 51 to 1000 MHz
Accuracy: ...................................+25°C (± 10°C), Internal Temperature of In_Line Power Meter
Receiver set to desired Frequency
Average Power
Average Forward Power Range: ....................................................... 500 mW to 500 W Avg
Peak/Average Ratio Maximum: ................................................................................ 12 dB
Accuracy, Average Forward Power: ............................................ ± 4% of reading + 166 mW
Return Loss: ................................................................................................... 0 to 23 dB
VSWR: ........................................................................................................ 1.15 to 99.9
Burst Average Power
Burst Average Power Range: .......................................................... 13.5 to 500 W Average
Burst Width: ................................................................................................ 1 μs to 5 ms
Repetitions Rate Min: .......................................................................................... 200 Hz
Duty Cycle (D): ....................................................... 0.001 to 1.0 (D = Burst Width / Period)
Accuracy, Burst Average Power: ........................................... ±6% of reading + 0.166/D mW
Peak Envelope Power
Peak Envelope Power Range: ................................................................... 13.3 to 1300 W
Peak Envelope Power Accuracy
Burst Width > 200 μs: ........................................................... ± 7% of reading, + 0.70 W
1 μ s < Burst Width < 200 μs: ............................................... ± 10% of reading, + 1.40 W
0.5 μ s < Burst Width < 1 μs: ................................................. ± 15% of reading, + 1.40 W
Burst Width < 0.5 μs: .......................................................... ±20% of reading, + 1.40 W
Crest Factor
Measurement Range: ........................................... 500 mW to 300 W, 13.3 W Minimum peak
Accuracy, Crest Factor: ........................ Linear Sum of Peak and Average Power Accuracies
