1-22 Subject to Export Control, see Cover Page for details.

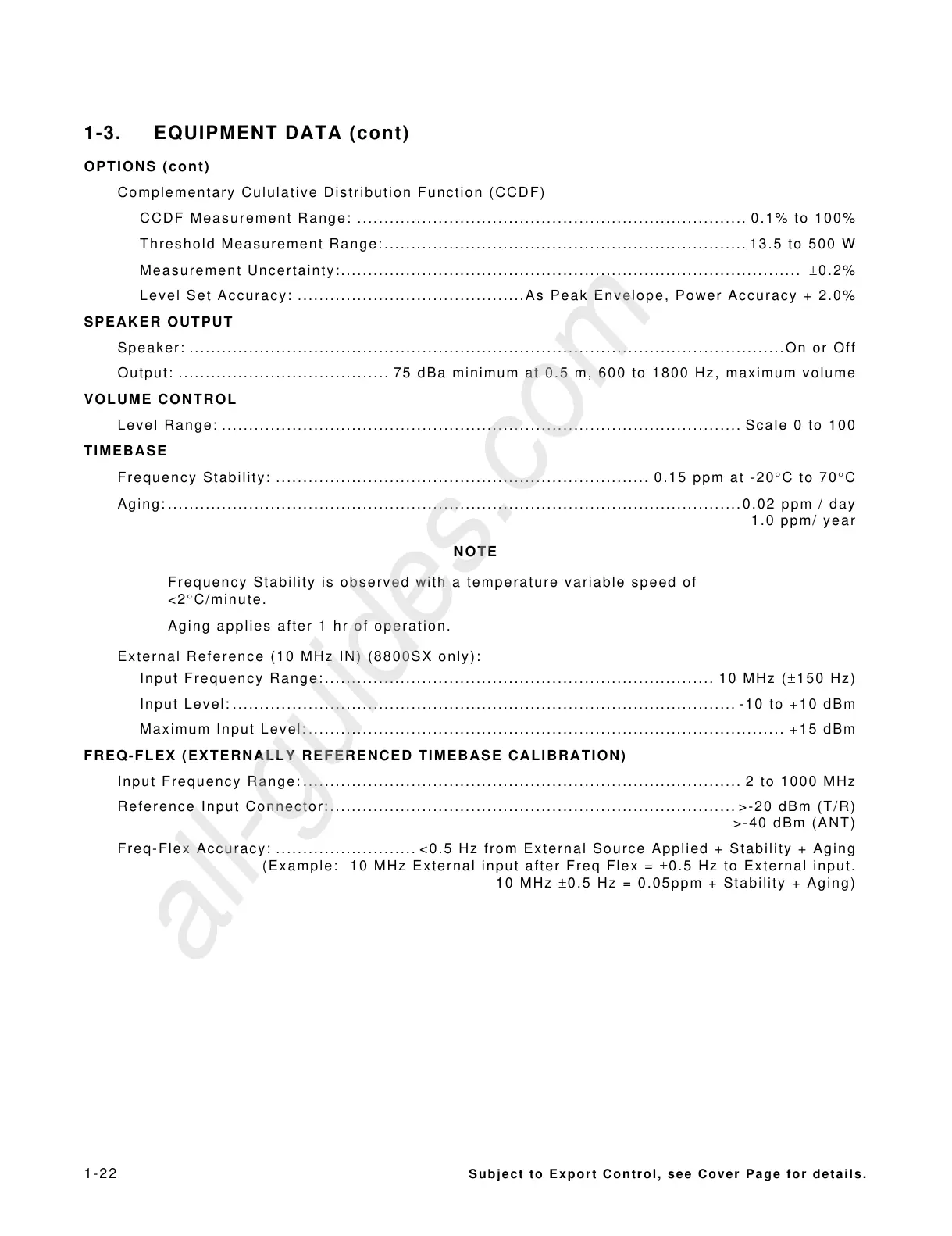

1-3. EQUIPMENT DATA (cont)
OPTIONS (cont)
Complementary Cululative Distribution Function (CCDF)
CCDF Measurement Range: ........................................................................ 0.1% to 100%
Threshold Measurement Range: ................................................................... 13.5 to 500 W
Measurement Uncertainty: ..................................................................................... ± 0.2%
Level Set Accuracy: .......................................... As Peak Envelope, Power Accuracy + 2.0%
SPEAKER OUTPUT
Speaker: .............................................................................................................. On or Off
Output: ....................................... 75 dBa minimum at 0.5 m, 600 to 1800 Hz, maximum volume
VOLUME CONTROL
Level Range: ................................................................................................ Scale 0 to 100
TIMEBASE
Frequency Stability: ..................................................................... 0.15 ppm at -20° C to 70° C
Aging: .......................................................................................................... 0.02 ppm / day
1.0 ppm/ year
NOTE
Frequency Stability is observed with a temperature variable speed of
<2°C/minute.
Aging applies after 1 hr of operation.
External Reference (10 MHz IN) (8800SX only):
Input Frequency Range: ........................................................................ 10 MHz (±150 Hz)
Input Level: ............................................................................................. -10 to +10 dBm
Maximum Input Level: ........................................................................................ +15 dBm
FREQ-FLEX (EXTERNALLY REFERENCED TIMEBASE CALIBRATION)
Input Frequency Range: ................................................................................. 2 to 1000 MHz
Reference Input Connector: ........................................................................... >-20 dBm (T/R)
>-40 dBm (ANT)
Freq-Flex Accuracy: .......................... <0.5 Hz from External Source Applied + Stability + Aging
(Example: 10 MHz External input after Freq Flex = ± 0.5 Hz to External input.
10 MHz ±0.5 Hz = 0.05ppm + Stability + Aging)
