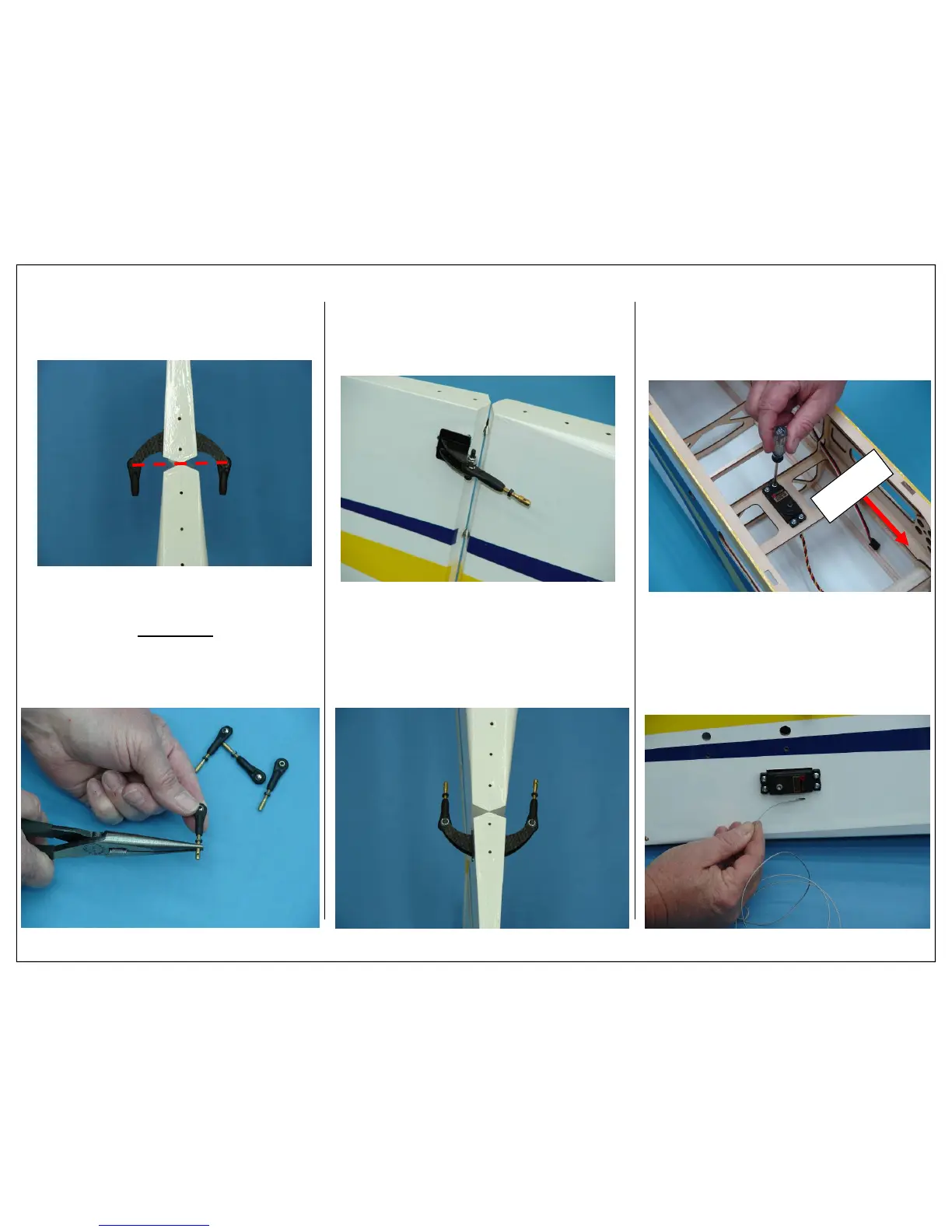

18 Aeroworks 30cc Freestyle Extra 260 Assembly Manual
18. 4-40 coupler shown attached to the rudder con-
trol horn ball link.
19. Finished 4-40 coupler installation, ensure that
both sides are of equal length for easy adjust-
ment and proper deflection.
20. Install the rudder servo in the servo cutout with
the output shaft to the nose of the airplane.
21. Feed one rudder cable through the pre-installed
cable exit tube in the rear of the fuse toward the
front of the fuse. Repeat for other side.
16. Finished rudder control horn installation shown
below. Notice that the ball link mounting loca-
tions are in line with the hinge line.
17. Install the 4-40 couplers onto all 4 ball links at
this time.
Builders Tip:
Only thread the coupler into the ball link half way,
this will allow for final adjustment once the pull-pull
cables are installed.
