Aeroworks 30cc Freestyle Extra 260 Assembly Manual 19

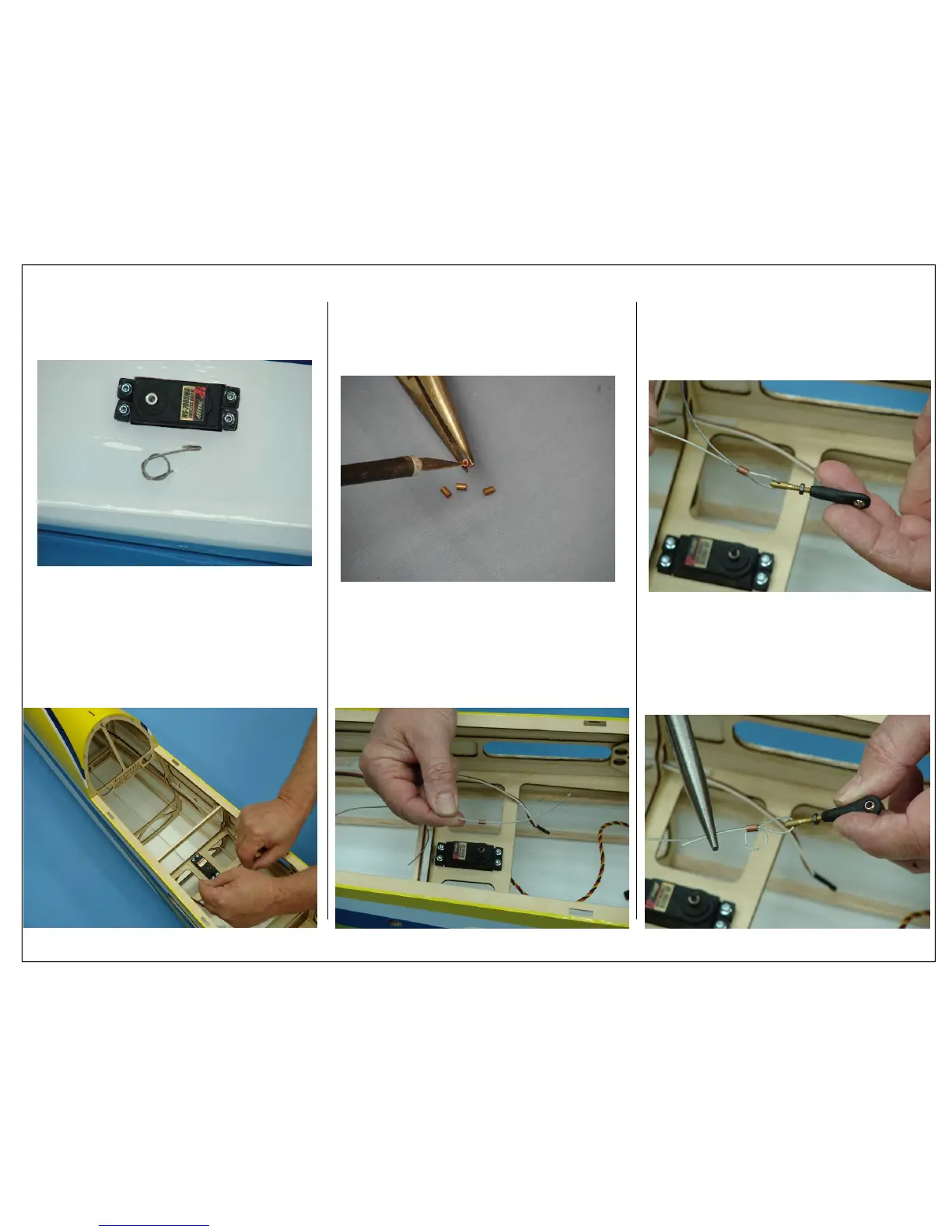

24. Using a hobby knife clean away any burrs from
brass swags. This will allow the rudder cable to
pass through brass swage easily.
25. Thread cable through brass swage tube.
26. Thread cable through the threaded coupler hole,
and back through the brass swage tube as shown.
27. Loop the cable back through the brass swage
tube and pull tight.
22. Loop or tape cable to fuse to prevent cable from
being pulled into fuse
23. Pull the rudder cables from rear of fuse to the
rudder servo tray.
Note: Cables run parallel down fuse and do not
cross each other.
To Next Page
