26 Aeroworks 30cc Freestyle Extra 260 Assembly Manual

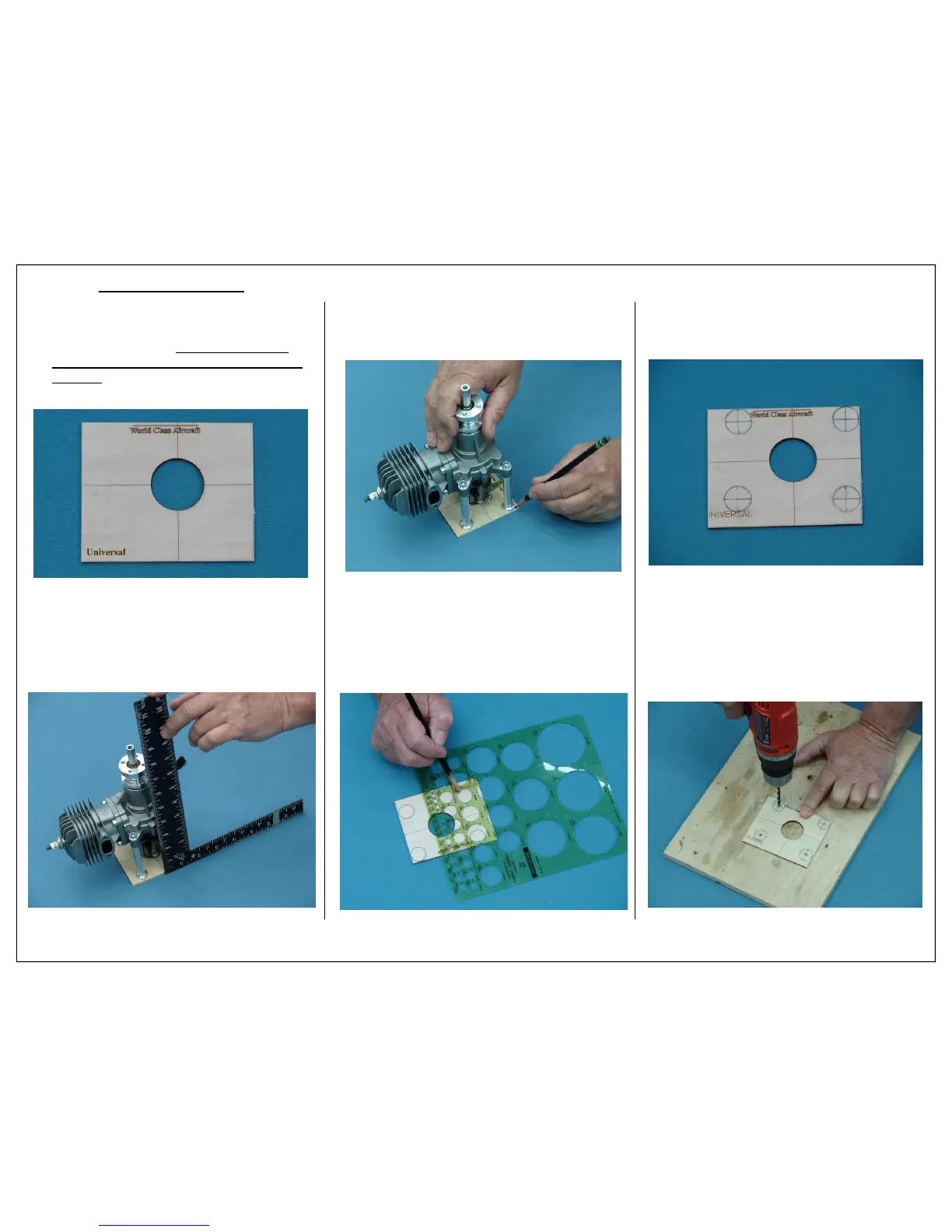

Universal Template:
2. If using a engine that is not a DLE 30 or DLE
35RA please follow these directions for using
the universal template. If a DLE 30 or DLE
35RA is to be used, please skip to step #1 On
page #27
3. Place engine on universal mounting template as
shown. Use a square to align the propeller output
shaft with the pre-marked thrust lines on the
template.
4. Mark the location of the standoffs on the tem-
plate as shown. Ensure that the engine does not
move during this step.
5. Use a stencil to fill in any missed parts where the
standoffs were marked in step 4.
6. Mark the center of each standoff location as
shown.
7. Use a 3/16” drill bit to drill the four mounting
hole locations as shown below.
8. Follow the remaining engine mounting steps for
mounting instructions.
