Aeroworks 30cc Freestyle Extra 260 Assembly Manual 27
DLE 30/ DLE 35RA
INSTALLATION

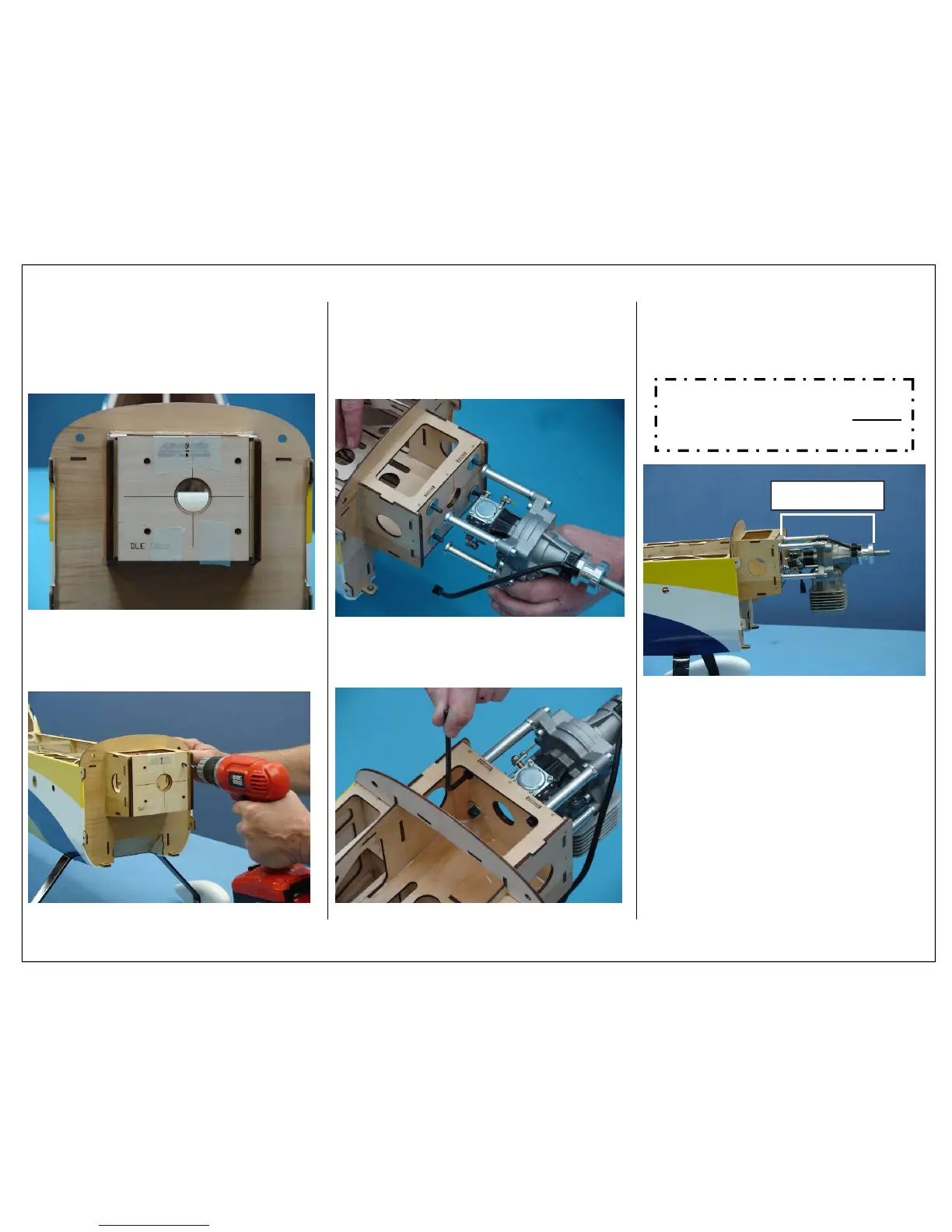

1. Align mounting template with firewall and
tape in place.
2. Use a 3/16” drill bit to drill the engine mounting
holes in firewall.
3. Use mounting bolts and flat fender washers to
mount engine to firewall.
4. Use blue Loctite to secure the engine mounting
bolts in place. This will insure that the mounting
bolts stay in place over time.
5. Tighten the bolts evenly to prevent crushing of
the firewall.
6. Distance from front of firewall to front of
engine prop hub is 6 1/2”.
Note: Use aluminum standoffs (supplied with
engine) and washers (not supplied) to achieve
correct distance.
Mounting Distance is: 6 1/2”
6 1/2”
