AES Prime 6E - Connecting Additional Devices; Other External Connections; Connecting Slave Devices

P a g e | 6

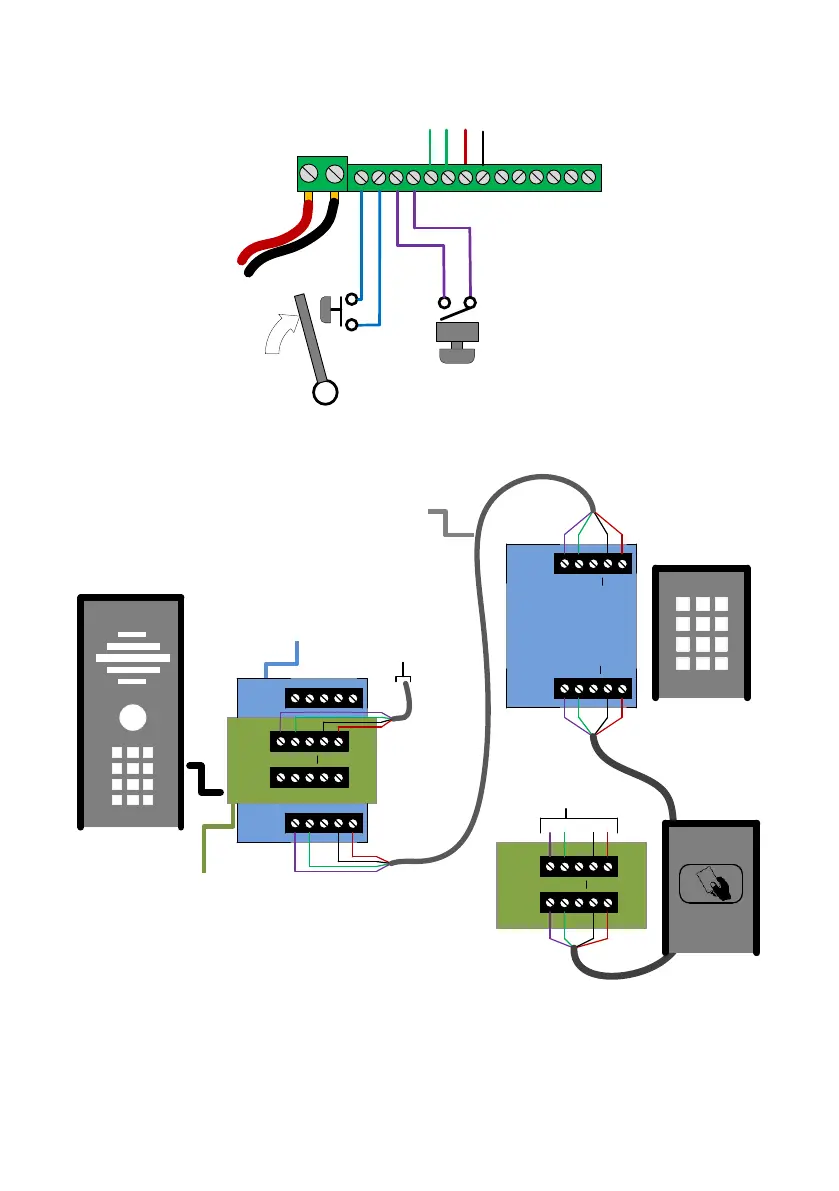

Other External Connections
Connecting of Slave Devices
1 2 3 24v
OUT
IN
OUT
IN
OUT
IN
1 2 3 24v
OUT
IN
1 2 3 24v
1 2 3 24v
Notes:
Up to a total of 8 devices can be connected to the one SIM module.
All keypads will be programmed with the same codes as the main unit.
All Prox units will store the same Prox cards.
Powering slave devices locally for longer distances.
Limit Switch
input
To next
device
Optional
Keypad
Optional
Prox reader
Optional Slave
Keypad
Optional Slave
Prox Reader
CAT5 (10m max)
100m if device powered separately
To next
device
Exit Button
