Stay ahead. With Agfa Global Services. :Anapurna M4F - Operator Manual
Maintenance - Alignment of the conveyor belt 39
2. Alignment of the conveyor belt.
The woven conveyor belt is tansported by a step-motor. It lies on top of a vacuum table
with a honey grid structure. It is very important to have a perfect aligned coveyor belt.
It should have a linear movement without any side deviations.

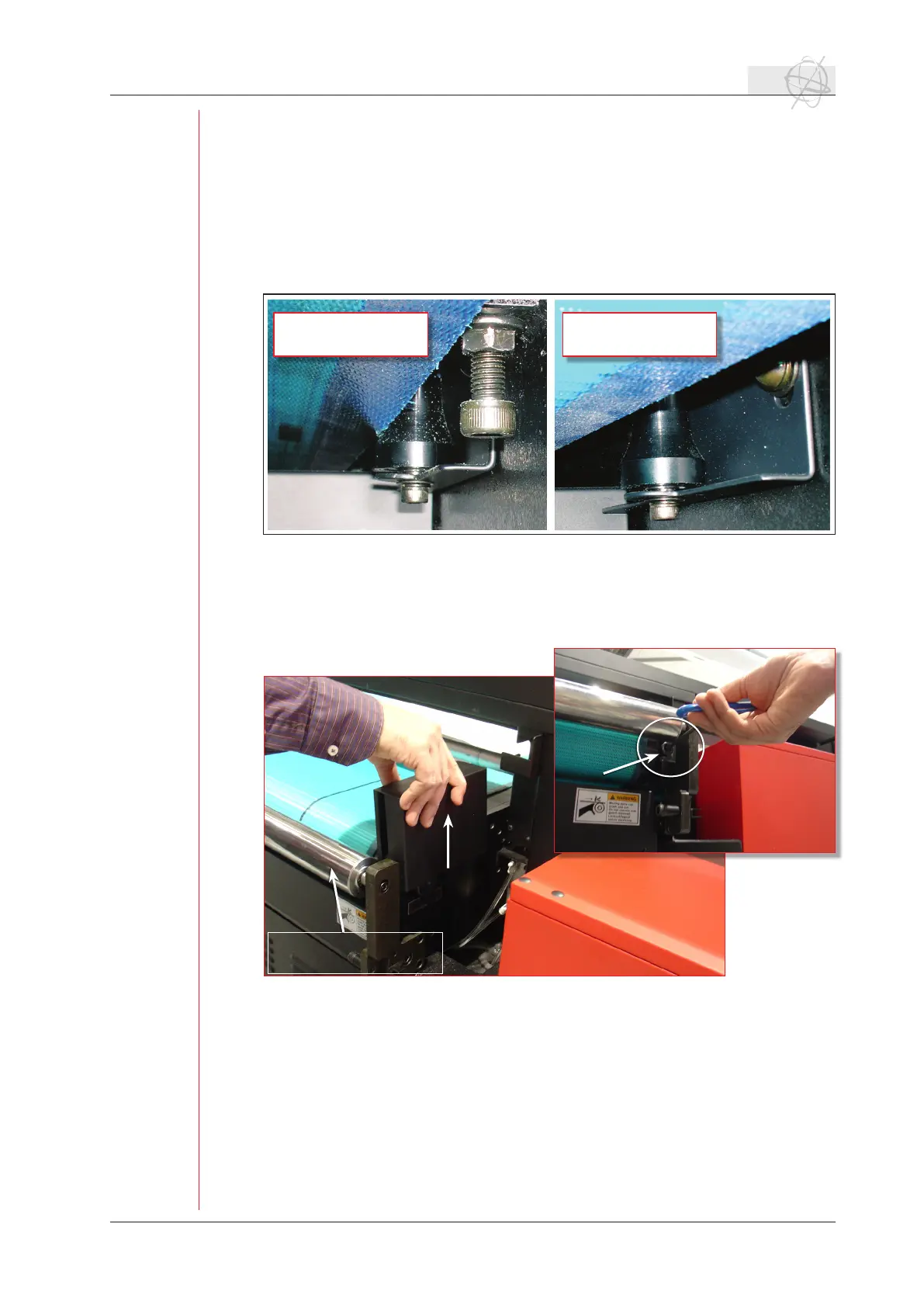

On the bottom of the vacuum table, you see a tool in the shape of an hour glass. If the
conveyor belt touches this device, it should be realigned.
Procedure:
Loosen the conveyor belt. Remove the metal covers on the backside (both left
and right), completely unscrew left and right bolt.
Position the conveyor belt:
The belt’s joint need to be positioned in the middle underneath the printing
table.
Measure the distance on the left/right side of the printing table; start vs. end
of the conveyor belt. This measured distance should be equal, on front- as
well as on rear-side of the engine.
Tighten the conveyor belt: Screw left and right bolt, alternate between left and
right bolt, with maximum 1 complete turn each at a time.
WRONG
T
OK
R
extra roller bar: part of the
roll to roll kit (optional).
