46 Maintenance - Maintenance Routines
apoolofinkthathasbeenformedunderneaththehead.Iftheheadresmoreink,
the drops will not be able to get through the pool causing failing nozzles.
3.6 Ink waste.
Cleaning,purgingandushingyourprintheadsalwayscreatessomewaste:contami-
nated cloths and gloves, purged ink and solution,... Make sure that uncured u.v. ink
waste is alway treated as hazardous, chemical waste.
The ink and solution waste that is created during purg-
ingorushing,endsupinawastetank.Thistankislo-
cated inside the left compartment of the printer. When
the waste tank is almost full, the control panel will dis-
play a warning. You can drain it via the tap underneath
the tank.
Make sure that the drained waste is processed as chem-
ical waste. Don’t mix the u.v. waste with solvent inks.
3.7 Maintenance on Sub Air tank (Over Flow Tank).
The sub air tank is the buffer which will prevent that any ink will be sucked into the
airsystem. It is important to make sure that this container is empty.
Turnalltheink2wayvalvesto‘S’position.
KeeptheSolution2-wayvalveto‘I’position.
Drop the Negative Vacuum down to zero (with the negative vacuum gauge).




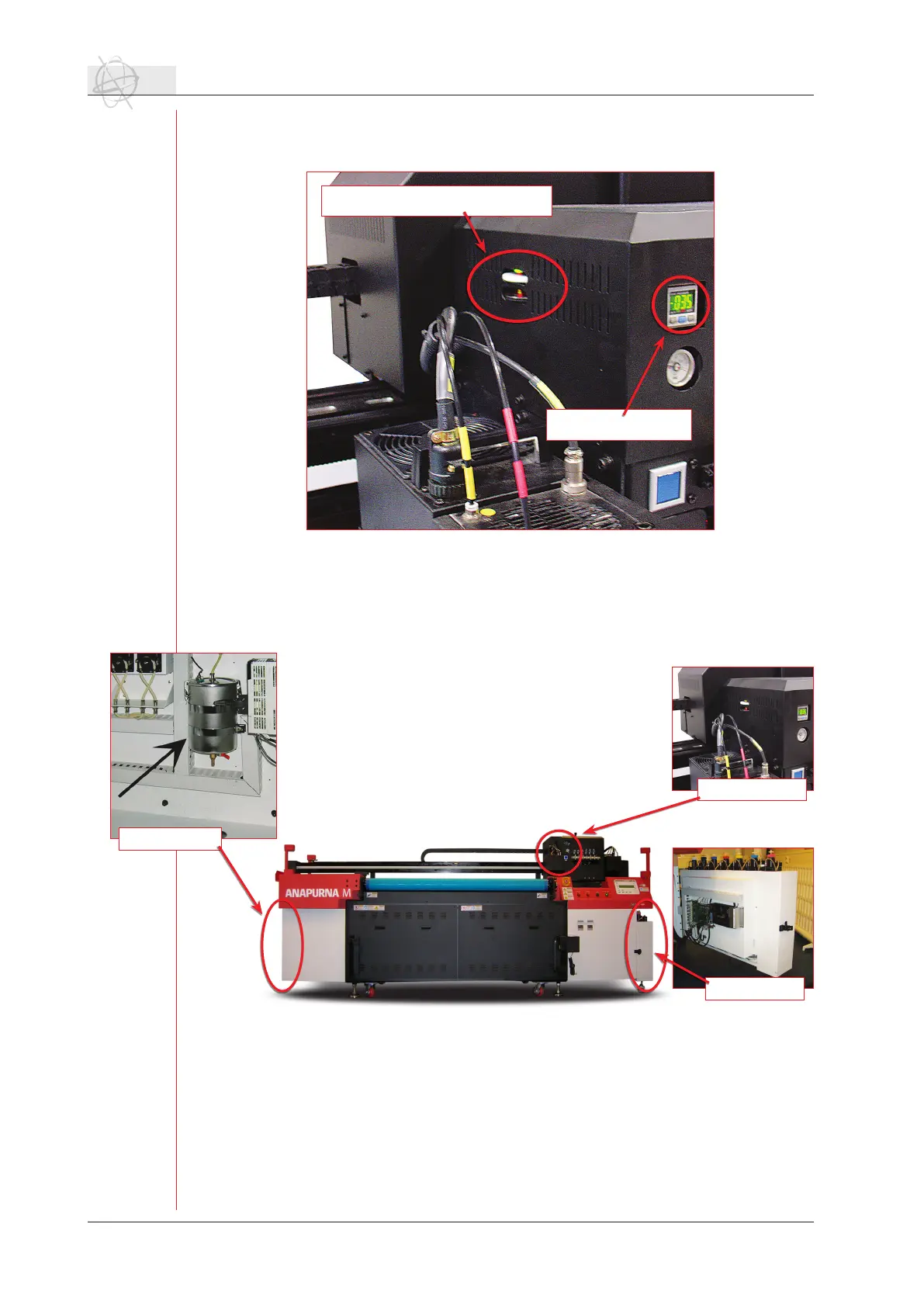

right ink door
waste ink tank
Pressure regulating valve & Lock
Digital indicator
pressure control
