Installing Logic Analyzer Cards and Probes 2
16900 Series Logic Analysis Systems Installation Guide 27

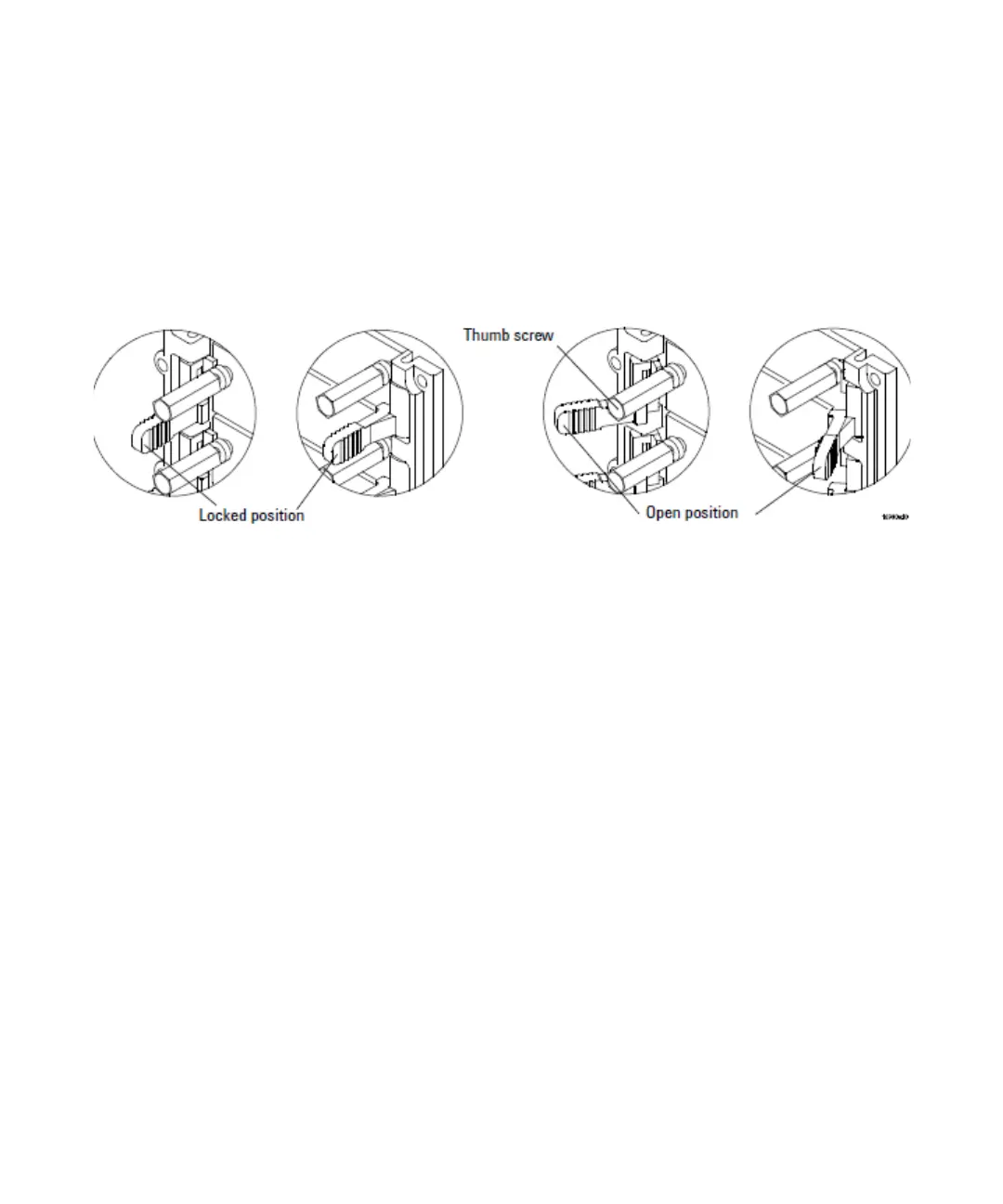

2 Remove filler panels as shown in the following figure.
a Loosen the thumb screws on the filler panels.
b Rotate the ejector levers from the locked position to the open
position.
c Remove filler panels.
3 If you are using a measurement module from a 16700 Series logic
analysis system go to “To replace thumb screws on measurement
modules” on page 24. If not, skip this step.
4 Ensure all ejectors are fully open and out of the way then slide the
module(s) into the logic analysis system frame.
The following figure shows a 6- card frame. The insertion/removal order
would be the same for a 3- card frame. A single- module configuration
can be installed in any available slot.
