Agilent Technologies 16900 Series User Manual

Setting Up Multiframe Configurations 5
16900 Series Logic Analysis Systems Installation Guide 87
In the simple multiframe configuration using an Intranet, all of the
systems are connected to the common network using their LAN port.

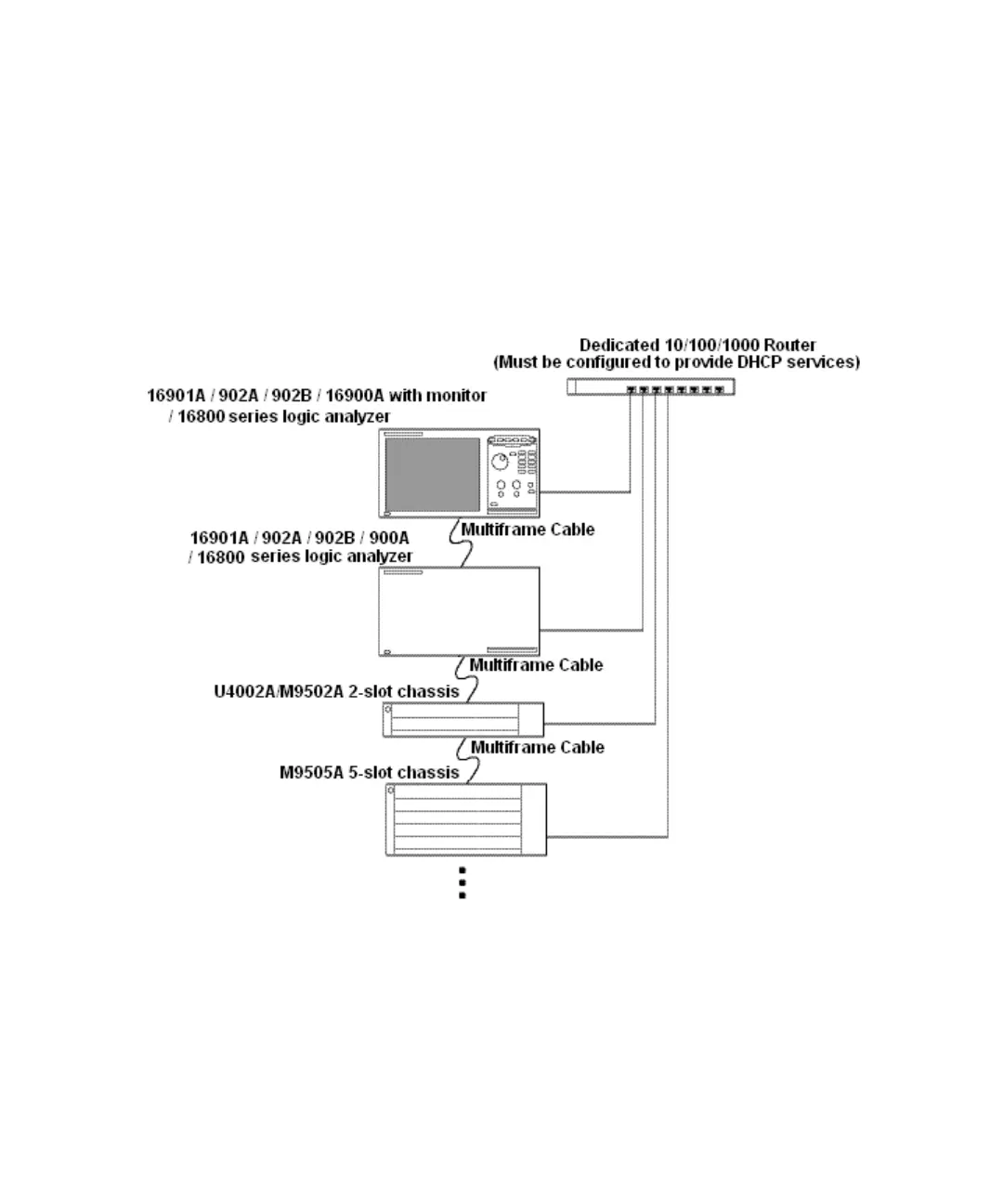

Simple Multiframe Configuration using an Isolated Router
In the simple multiframe configuration using an isolated router, all the
systems are connected to the common network using their LAN port.
Rules for Simple Multiframe Configurations
In addition to the earlier guidelines on page 85:
