86 16900 Series Logic Analysis Systems Installation Guide
5 Setting Up Multiframe Configurations
Setting Up Simple Multiframe Configurations
Simple multiframe configurations are useful when you are using one or
more logic analysis systems in a variety of configurations where
sometimes you are using them as distinct analyzers and sometimes you
need to use them as a multiframe system to correlate a variety of buses.

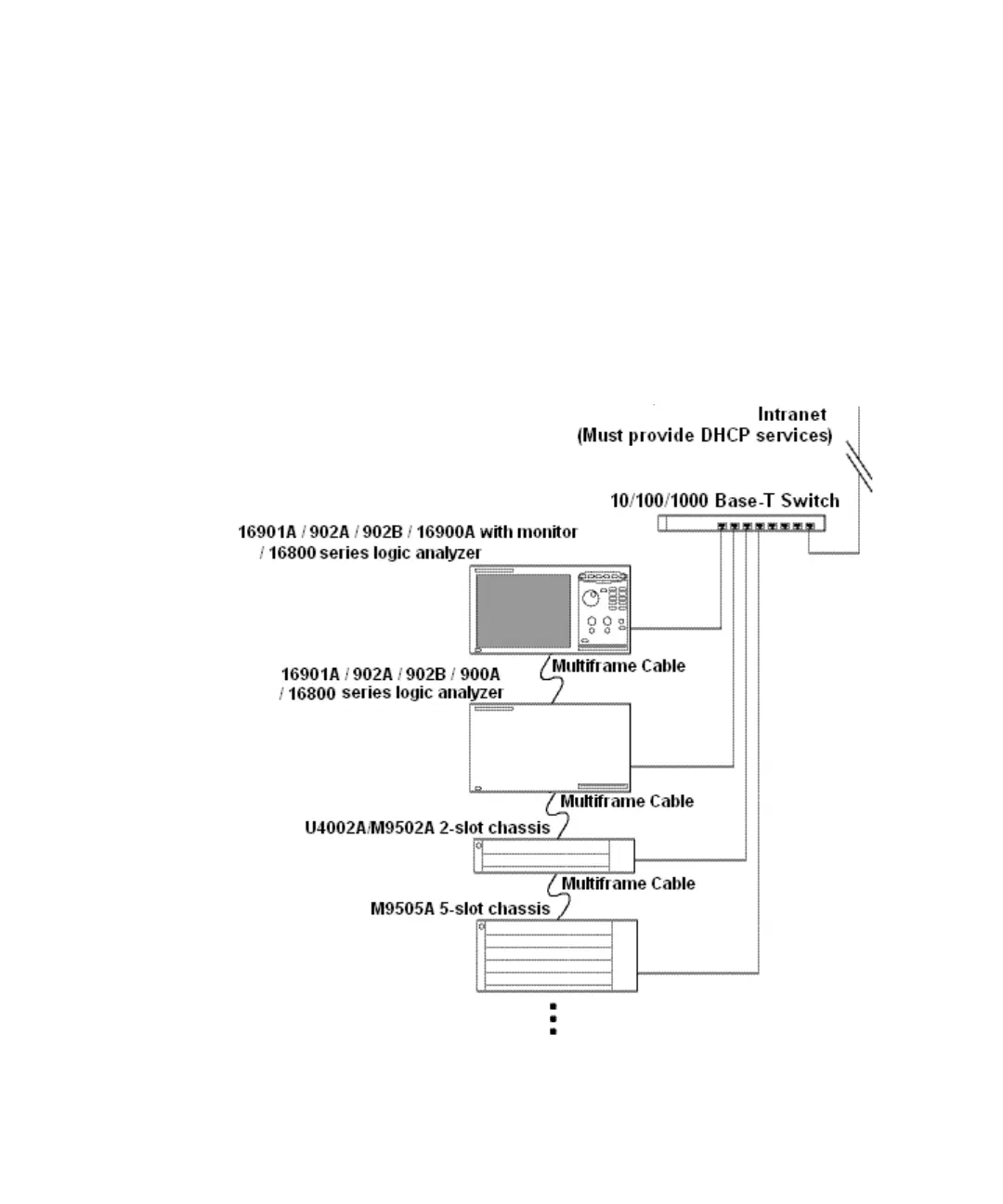

Simple Multiframe Configuration using an Intranet
