62 16900 Series Logic Analysis Systems Installation Guide
2 Installing Logic Analyzer Cards and Probes
16760A Logic Analyzer (5-card module)

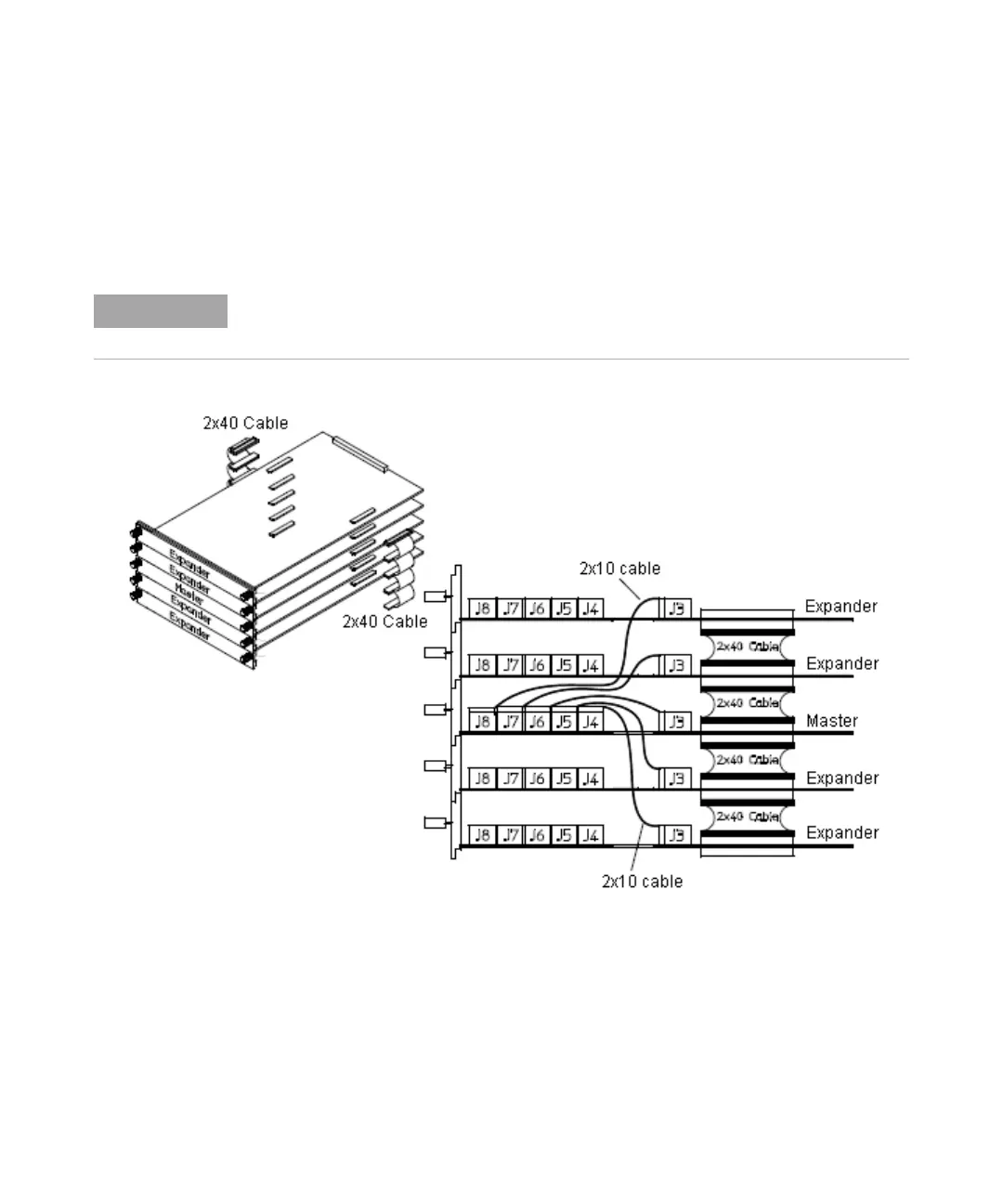

Use five 2 x 10 cables and eight 2 x 40 cables (in the accessory pouch) to
connect the modules.
Turn off the mainframe power before removing, replacing, or installing modules following
the procedures on page 26.
