50 16900 Series Logic Analysis Systems Installation Guide
2 Installing Logic Analyzer Cards and Probes
16950A, 16756/55/54/53A Logic Analyzer (3-card module)

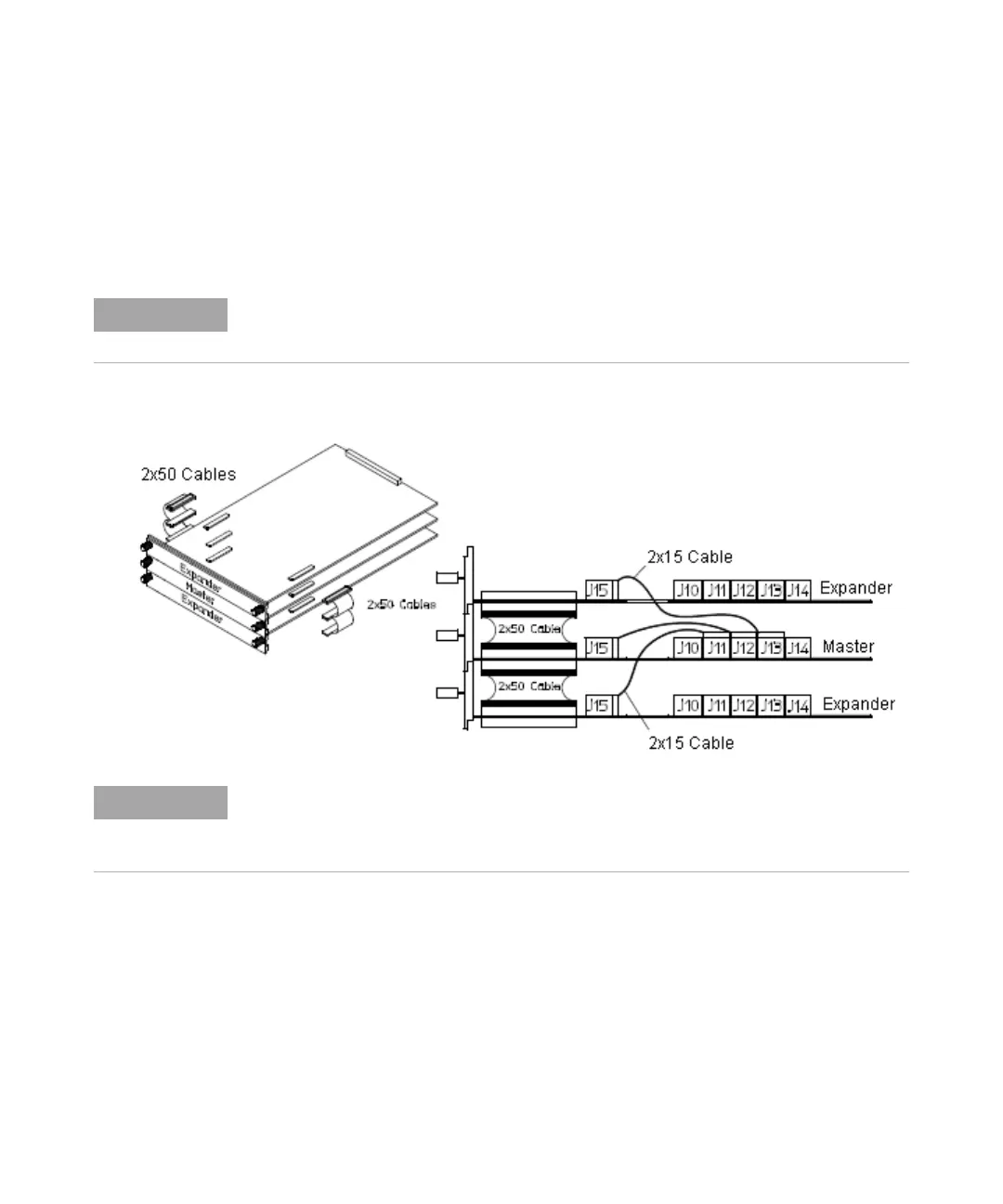

Use three 2 x 15 cables and four 2 x 50 cables (in the accessory pouch) to
connect the modules.
Turn off the mainframe power before removing, replacing, or installing modules. For
instructions on installing modules into the logic analysis system frame, refer to page 26.
You can combine any combination of 16753A, 16754A, 16755A, 16756A, and 16950A logic
analyzer modules in a 3-card set.
The combined set will default to the lowest memory depth in the set.
