Installing Pattern Generator Cards 3
16900 Series Logic Analysis Systems Installation Guide 71

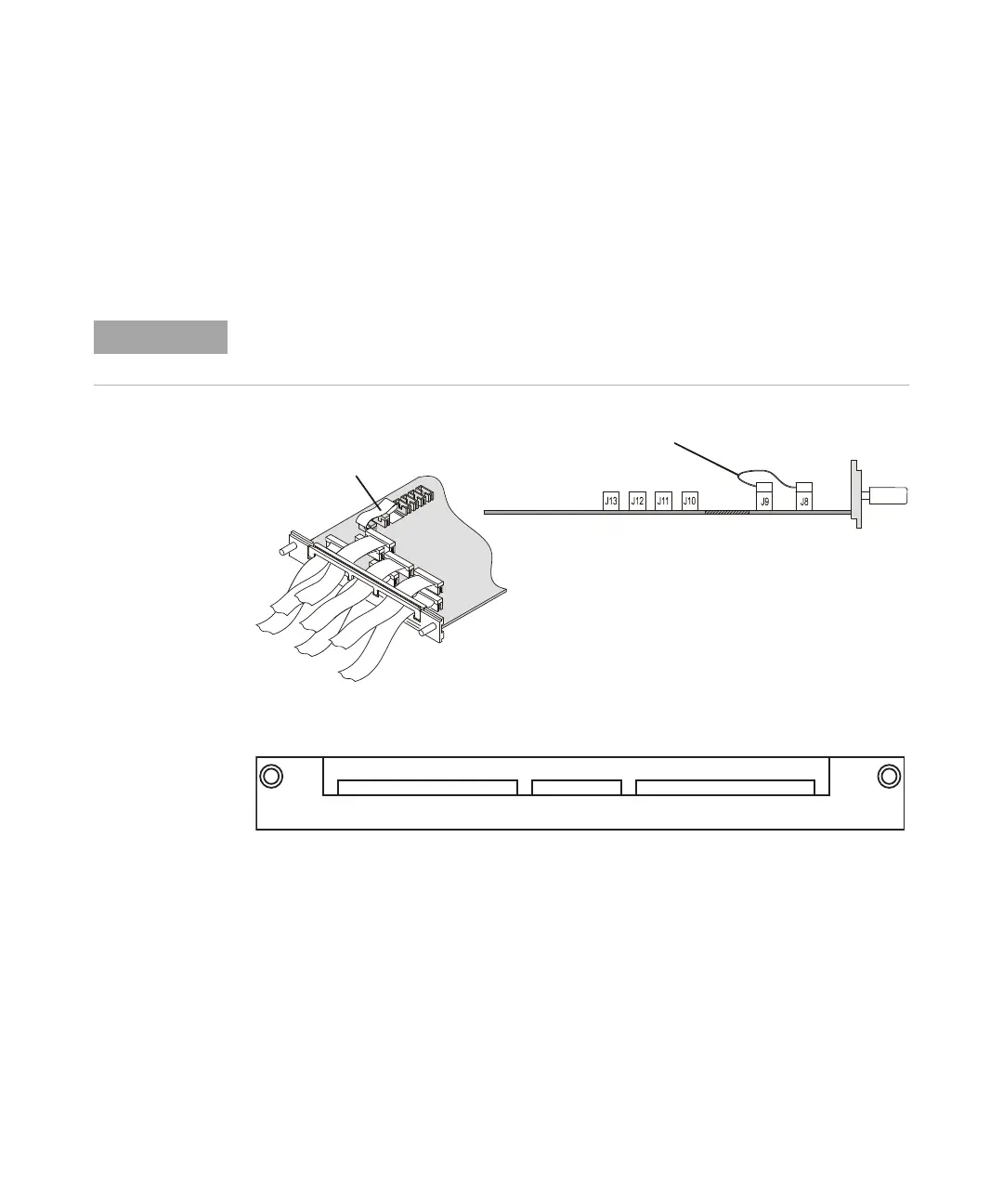

16720A Pattern Generator (1-card module)
Each card shipped stand- alone has the 2 x 10 cable connected in the
single- card module configuration. A single- card module can be installed in
any available slot.
The order of pods on the card’s rear panel is:
In a multi- card set, pods are indexed from the bottom up.
Turn off the mainframe power before removing, replacing, or installing modules. For
instructions on installing modules into the logic analysis system frame, refer to page 26.
2x10 cable
Master
2x10 cable
connection
for a single-card
Pod 4
Pod 5 Pod 2
Pod 1Pod 3
Pod 6
Clk Pod
