16752/51/50B/A, 16742/41/40A Logic Analyzer (1-card module)
Each card shipped stand- alone has the 2 x 10 cable connected in the
single- card module configuration. A single- card module can be installed in
any available slot.

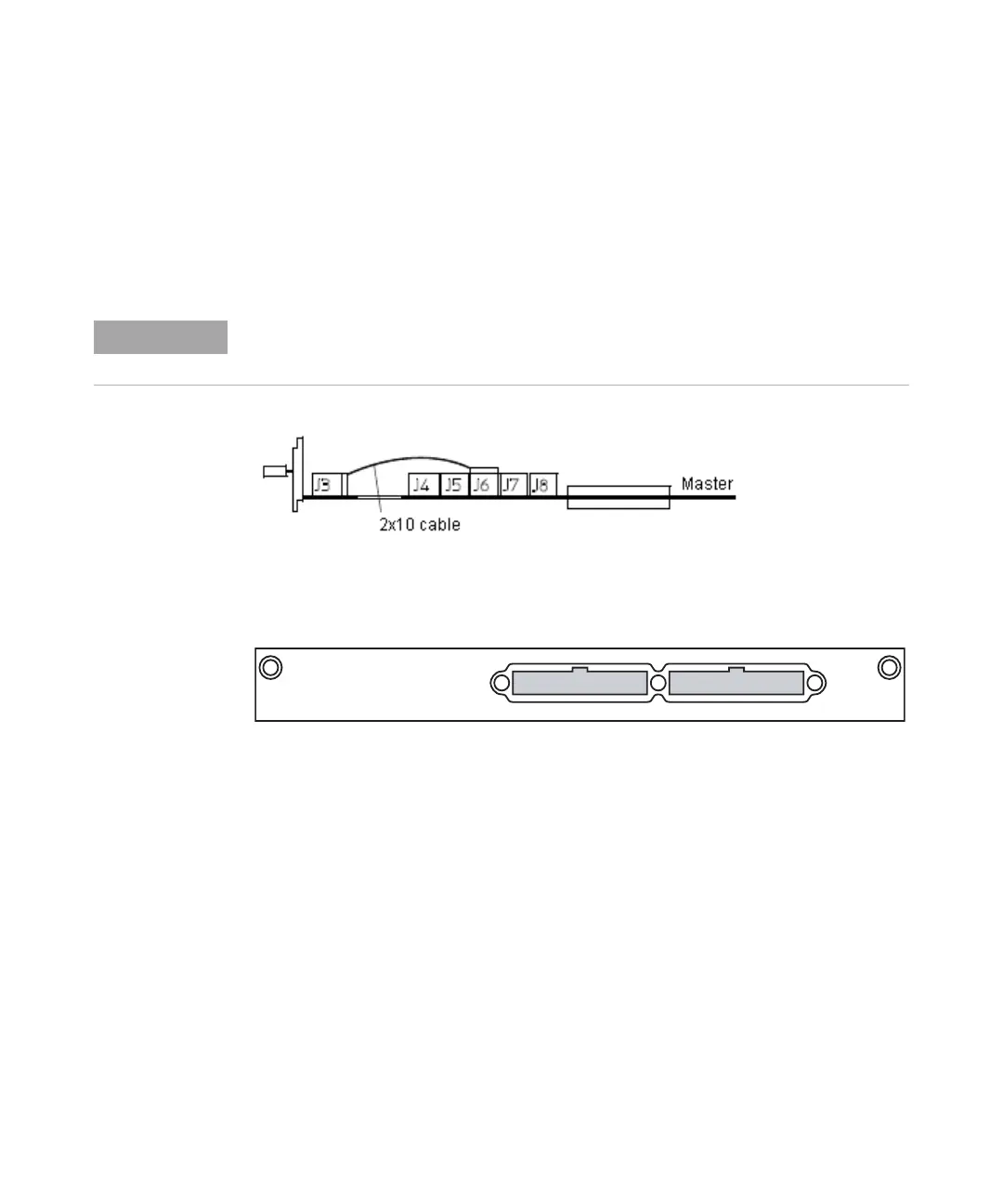

The order of pods on the card’s rear panel is:
In a multi- card set, pods are indexed starting with the master card, then
with the expander cards from the bottom up.
Turn off the mainframe power before removing, replacing, or installing modules. For
instructions on installing modules into the logic analysis system frame, refer to page 26.
Pods 3 and 4 Pods 1 and 2
