Installing Logic Analyzer Cards and Probes 2
16900 Series Logic Analysis Systems Installation Guide 67

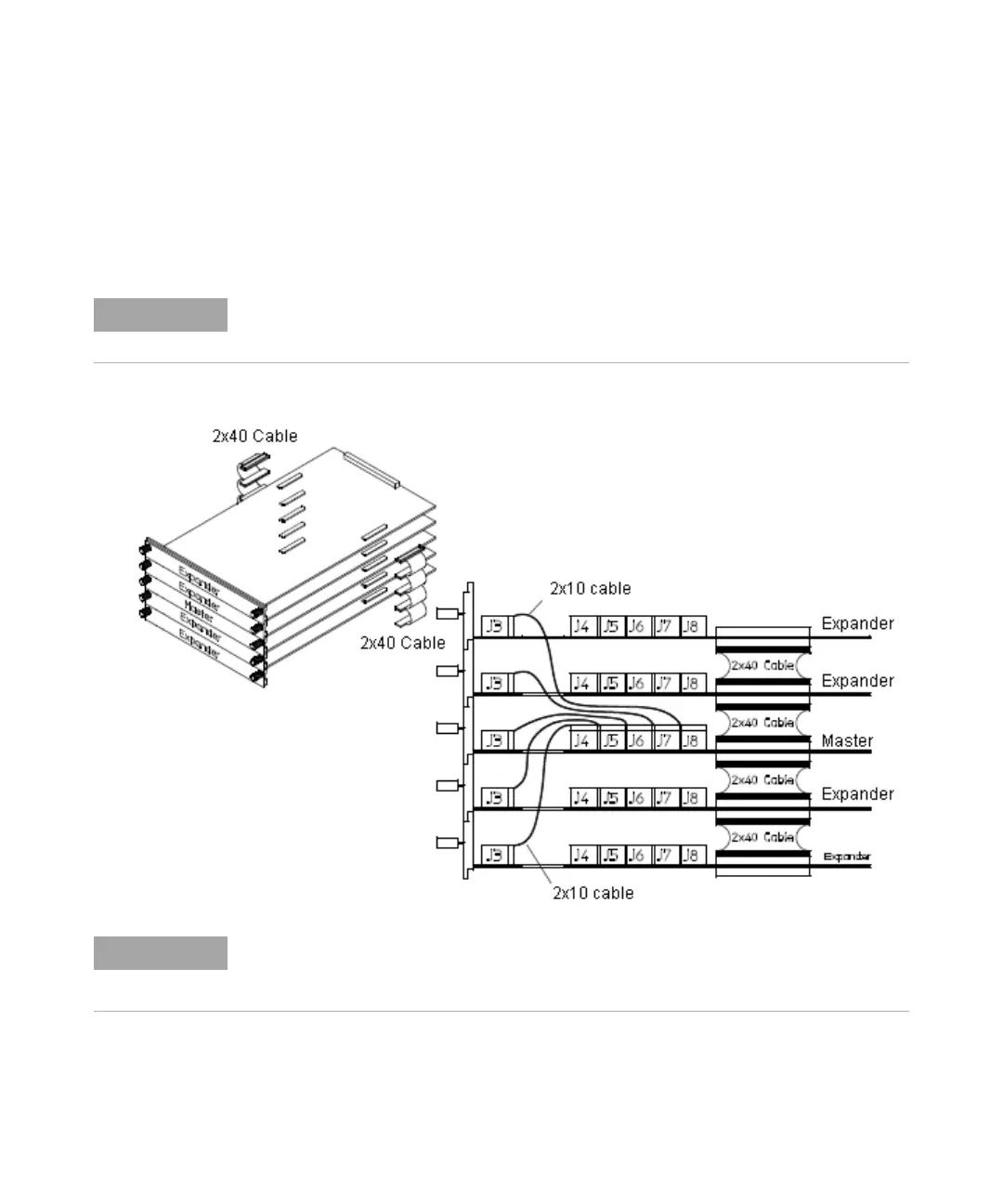

16752/51/50B/A, 16742/41/40A Logic Analyzer (5-card module)
Use five 2 x 10 cables and eight 2 x 40 cables (in the accessory pouch) to
connect the modules
Turn off the mainframe power before removing, replacing, or installing modules. For
instructions on installing modules into the logic analysis system frame, refer to page 26.
Measurement modules with different model numbers cannot be connected together in
multi-card modules. However, the 16750A may be connected to a 16750B; the 16751A may
be connected to a 16751B; the 16752A may be connected to a 16752B.
