40 16900 Series Logic Analysis Systems Installation Guide
2 Installing Logic Analyzer Cards and Probes

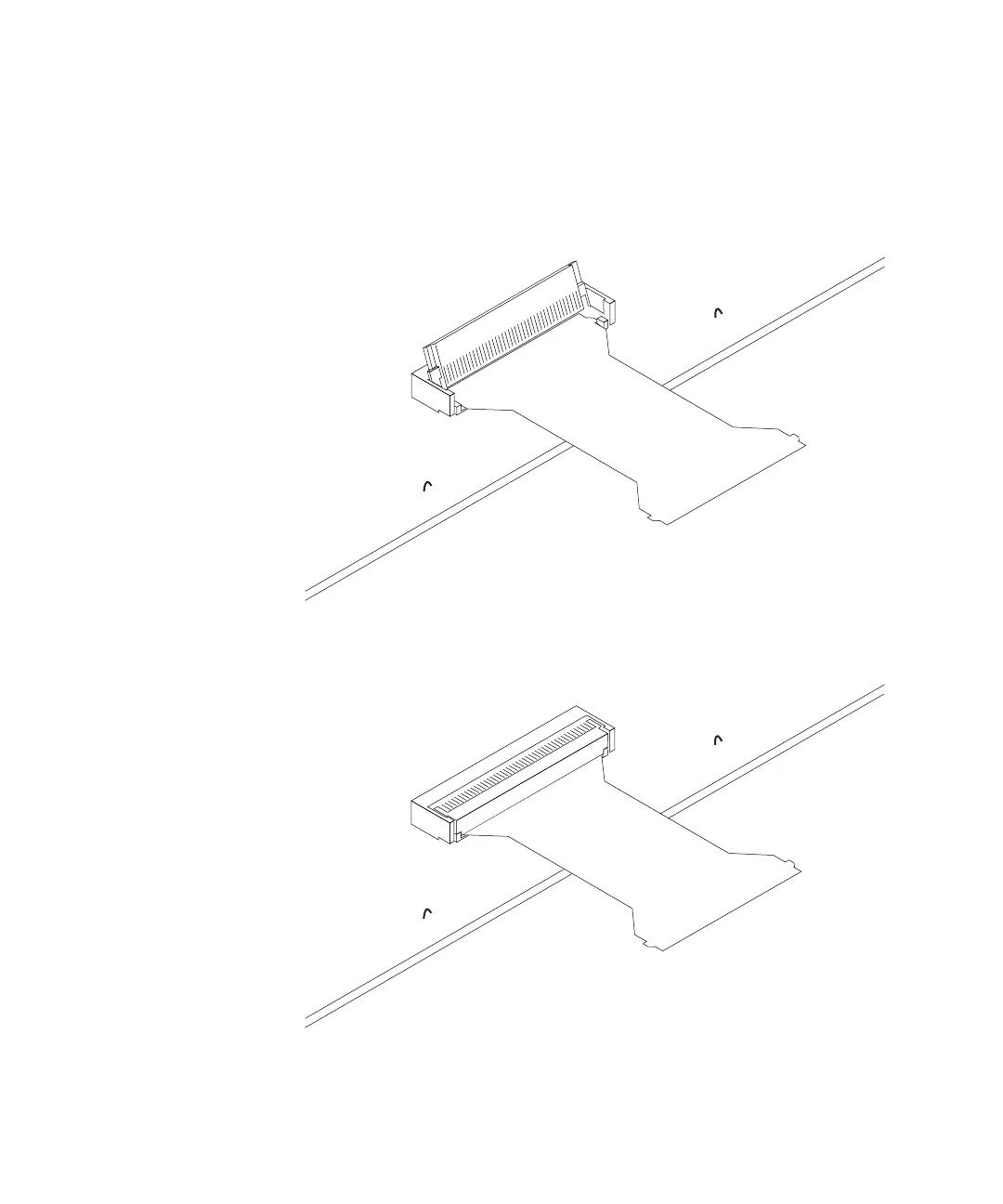

b Place the flex cable into the connector, exposed conductive traces
towards the card, so that the flex cable ears are secured by the
connector guides.
c Close the connector actuator.
d Repeat for the opposite under- side flex cable and connector.
