90 16900 Series Logic Analysis Systems Installation Guide
5 Setting Up Multiframe Configurations

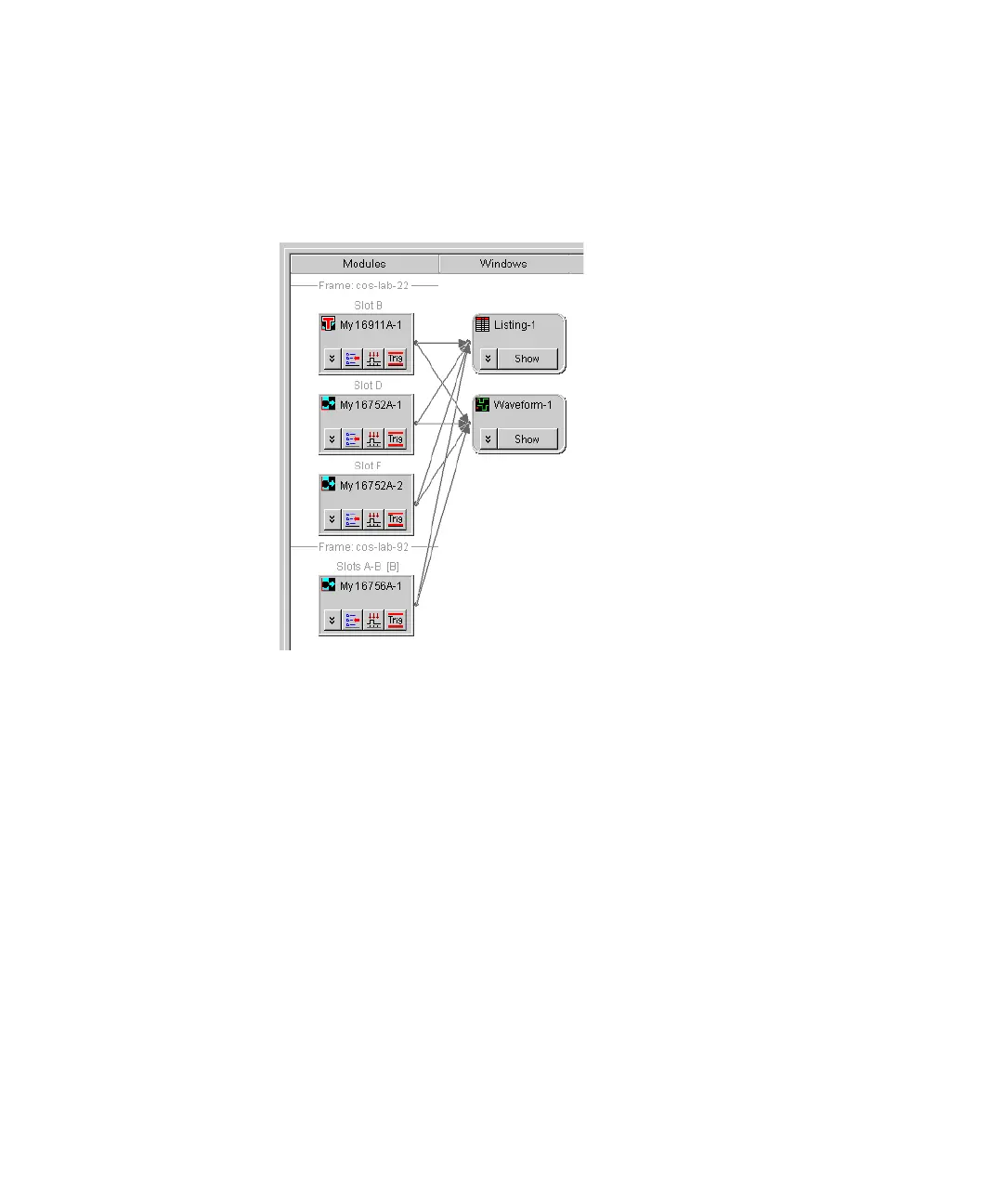

If the application starts without errors, and you see the multiframe
system in the Overview window, you are ready to use the multiframe
system.
6 If you are not able to see the multiframe system in the Overview
window, do the following:
a Exit the Agilent Logic Analyzer application.
b Power down all systems.
c Disconnect and reconnect all multiframe cables to all chassis.
Re- verify the connection order. It should be Master (Output) ->
Slave1 (Input); Slave1 (Output) - > Slave2 (Input) and so one.
d Power up the systems as per the startup sequence described in Step
4.
e When all systems are ready, start the Agilent Logic Analyzer
application on the system from which you want to control the
multiframe setup. Wait for the application to stabilize.
