13
Chapter 1: General Information
Environmental Characteristics
See the logic analyzer’s online help system for a full listing of all
specifications and characteristics.
Probes
Maximum Input Voltage ± 40 V, CAT I. CAT I = Category I, secondary power line
isolated circuits.
Operating Environment

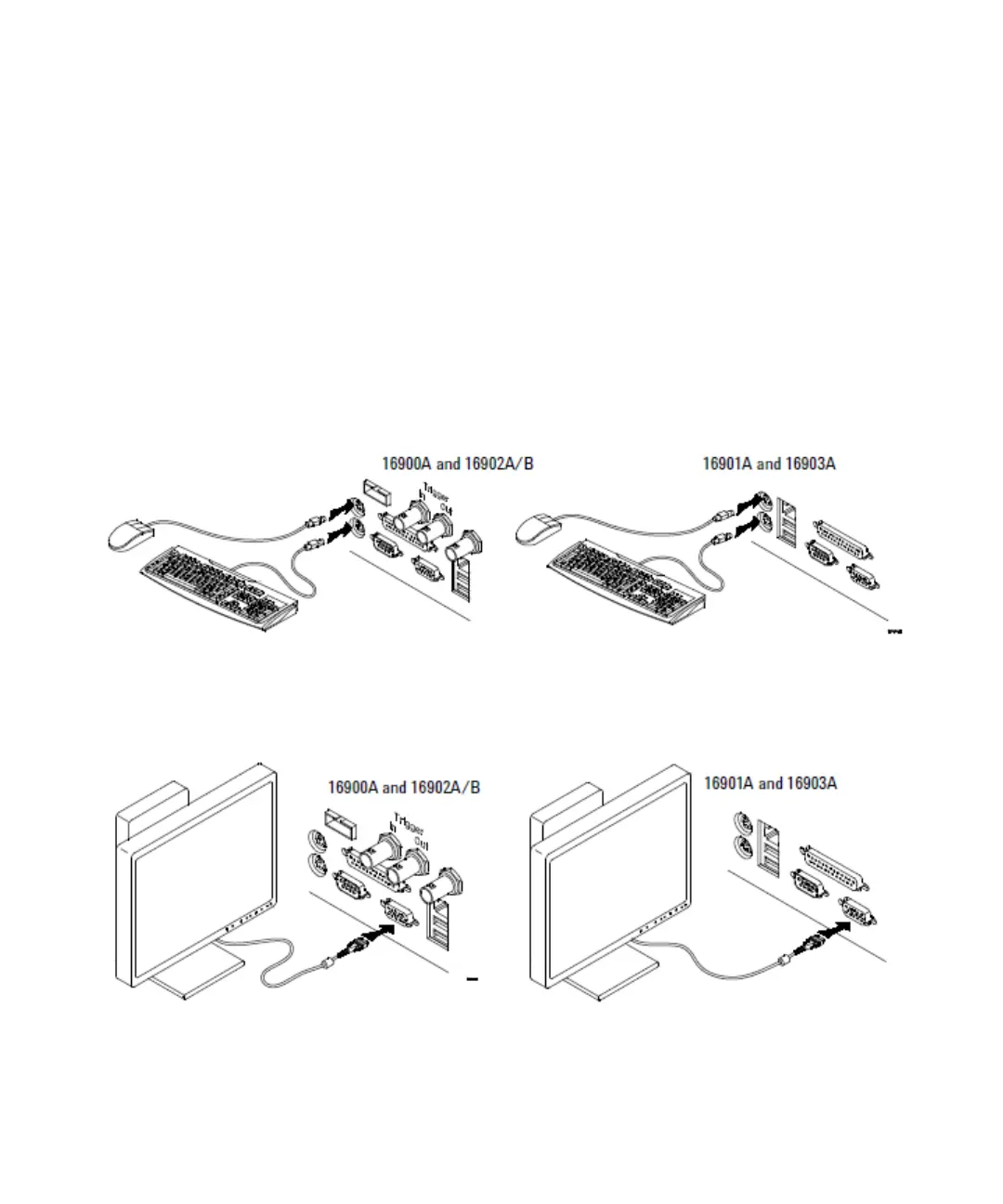

Temperature Instrument, 0 °C to 40 °C (+32 °F to 104 °F) when installed in a
16900A or 16902A mainframe.
Instrument, 0 °C to 50 °C (+32 °F to 122 °F) when installed in a
16903A or 16700-series mainframe.
Probe lead sets and cables, 0 °C to 65 °C (+32 °F to 149 °F).
Humidity Instrument, probe lead sets, and cables, up to 80% relative
humidity at
+40 °C (+104 °F), non-condensing.
Altitude To 3000 m (10,000 ft).
Vibration Operating: Random vibration 5 to 500 Hz, 10 minutes per axis,
≈0.2 g (rms).
Non-operating: Random vibration 5 to 500 Hz, 10 minutes per
axis, ≈2.41 g (rms); and swept sine resonant search, 5 to 500
Hz, 0.5 g (0-peak),
5 minute resonant dwell at 4 resonances per axis.
Operating power supplied by mainframe.
Indoor use only.
Pollution Degree 2. Normally only dry non-conductive
pollution occurs. Occasionally a temporary conductivity
caused by condensation may occur.
