34 16900 Series Logic Analysis Systems Installation Guide
2 Installing Logic Analyzer Cards and Probes
3 Now, slide the next card about 1/3 of the way into its slot, so that it is
aligned with the lower card.

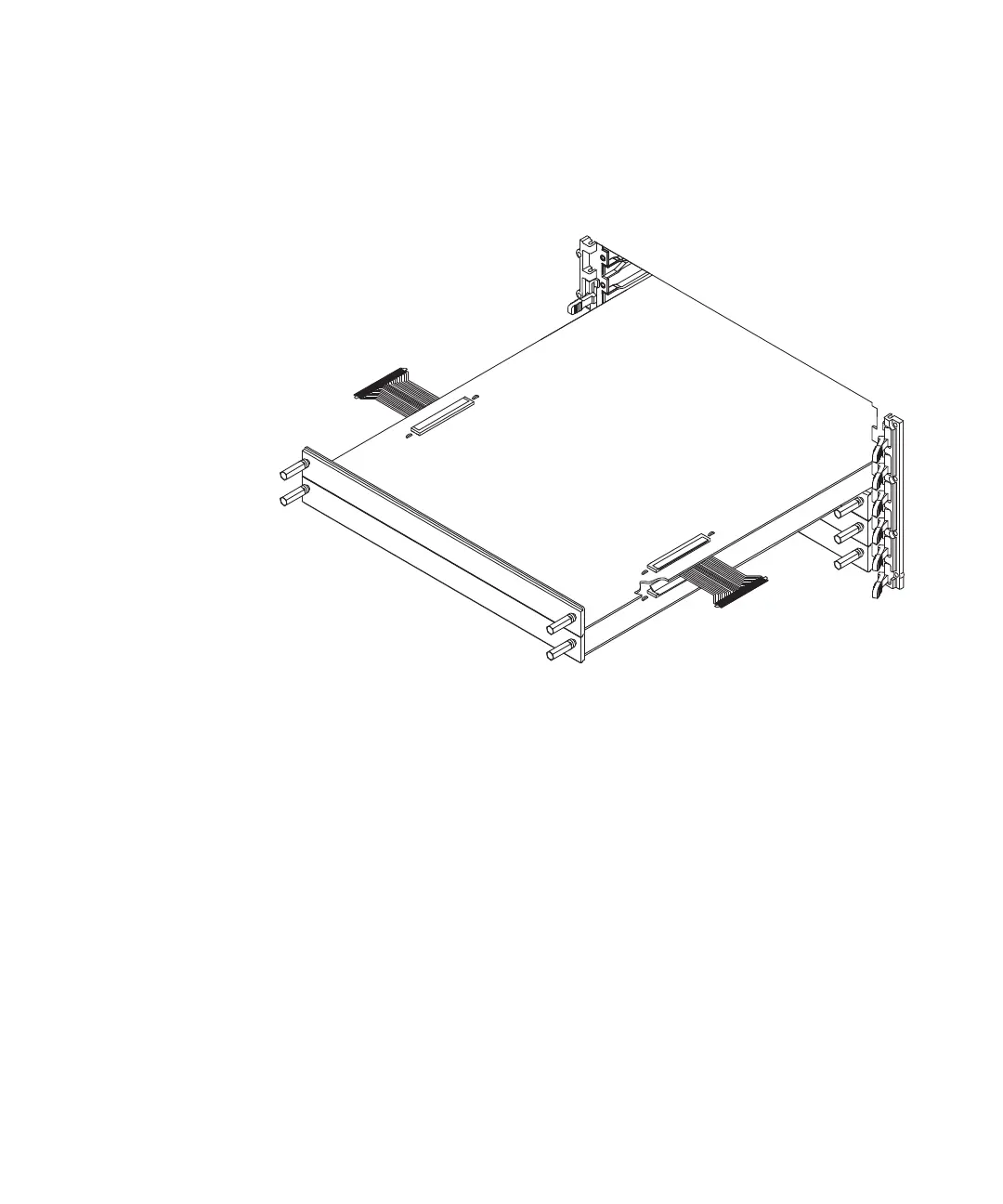

4 Attach the flex cables to the top side of the lower card:
a Flip up the connector actuator with your thumb or index finder. Do
not use any type of tool to open the actuator.
b Place the flex cable into the connector, exposed conductive traces
towards the card, so that the flex cable ears are secured by the
connector guides.
Be careful not to bend the flex cables any more than is necessary to
fit between the card connectors.
c Close the connector actuator.
d Repeat for the opposite top-side flex cable and connector.
5 Repeat steps 2- 4 for the remaining cards.
