38 16900 Series Logic Analysis Systems Installation Guide
2 Installing Logic Analyzer Cards and Probes
16960A Logic Analyzer (2-card, 3-card, and 4-card modules)

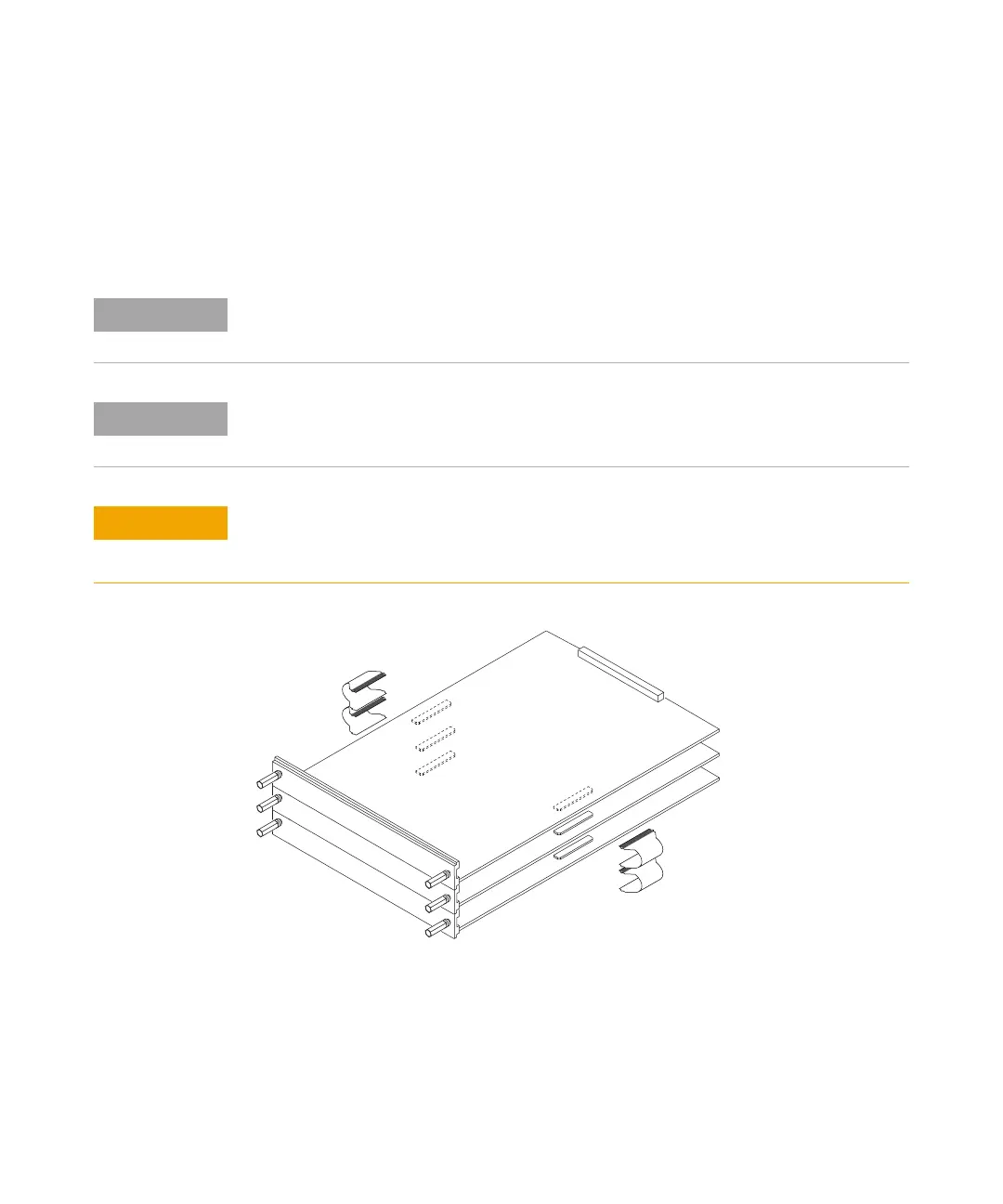

Between cards, use a pair of 16960- 61601 flex cables (in the accessory
pouch) to connect the modules.
The 16960A logic analyzer module must only be combined with other 16960A modules. A
16960A combined set will default to the lowest memory depth in the set.
Turn off the mainframe power before removing, replacing, or installing modules. For
instructions on installing modules into the logic analysis system frame, refer to page 26.
When removing cards that are connected together as multiple-card modules, be sure
to eject the multiple cards simultaneously, otherwise, the flex cables and/or
connectors could be damaged.
